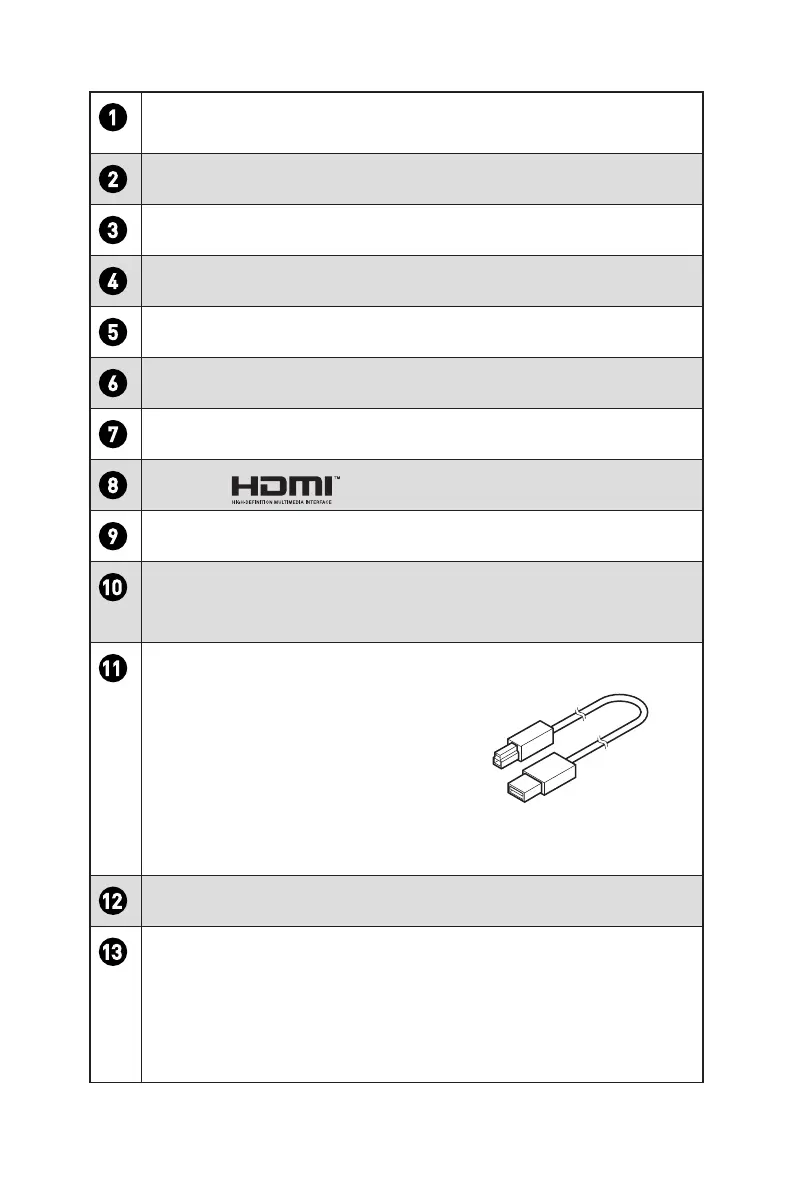

Getting Started
1
Macro Key
To activate MSI Productivity Intelligence OSD.
2
Power Button
3
Light Sensor
4
Microphone
5
Navi Key
6
Kensington Lock
7
Power Jack
8
HDMI Port
9
DisplayPort
10
USB Type-C Port
This port supports DisplayPort Alternate (DP Alt) Mode and up to 5V/3A
power delivery.
11
USB 3.2 Gen 1 Type B Upstream Port
For USB Upstream Cable.
⚠
Important
Check the package for USB
Upstream Cable and connect it
to the PC and monitor. Once this
cable is connected, the USB Type-A
Downstream Ports on the monitor
will be ready for use.
To PC
To Monitor
12
USB 3.2 Gen 1 Type A Port
13
Combo Audio Jack
For Y-type Audio Cable.
⚠
Important
The optional Y-type Audio Cable can connect the PC and monitor. Once this
cable is connected, the audio jacks on the monitor will be ready for use.
