MSI Trident Series Service Manual

•
Service Manual

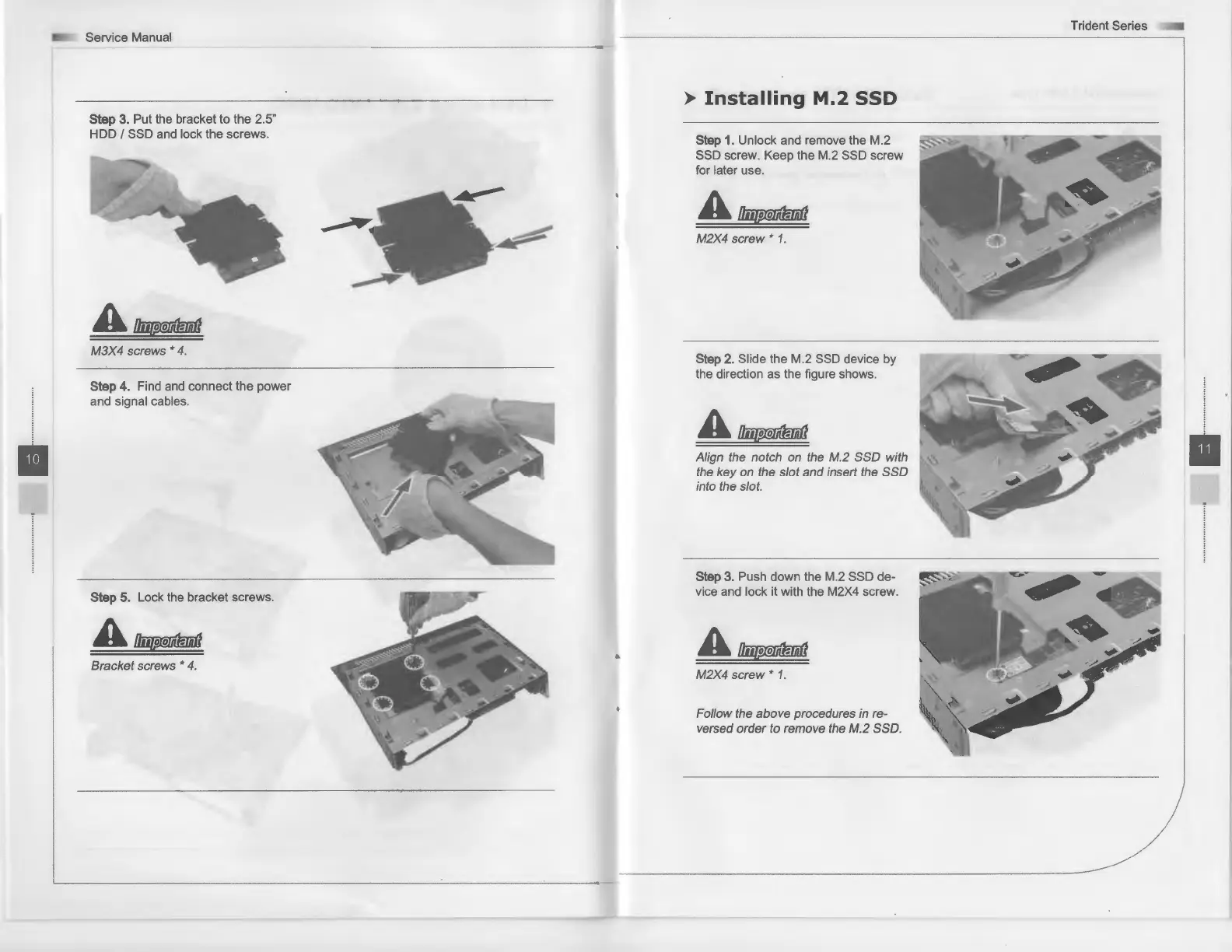

Step 3. Put the bracket to the 2.5"
HOD/ SSD and lock the screws.
A~
M3X4 screws * 4.
Step 4. Find and connect the power
and signal cables.
Step 5. Lock the bracket screws.
A~
Bracket screws * 4.
~
> Installing M.2 SSD
Step 1. Unlock and remove the M.2
SSD screw. Keep the M.2 SSD screw
for later use.
A~
M2X4 screw * 1.
Step 2. Slide the M.2 SSD device by
the direction as the figure shows.
A~
Align the notch on the M.2 SSD with
the key on the slot and insert the SSD
into the slot.
Step 3. Push down the M.2 SSD de-
vice and lock it with the M2X4 screw.
A~
M2X4 screw * 1.
Follow the above procedures
in re-
versed order to remove the M.2 SSD.
Trident Series
