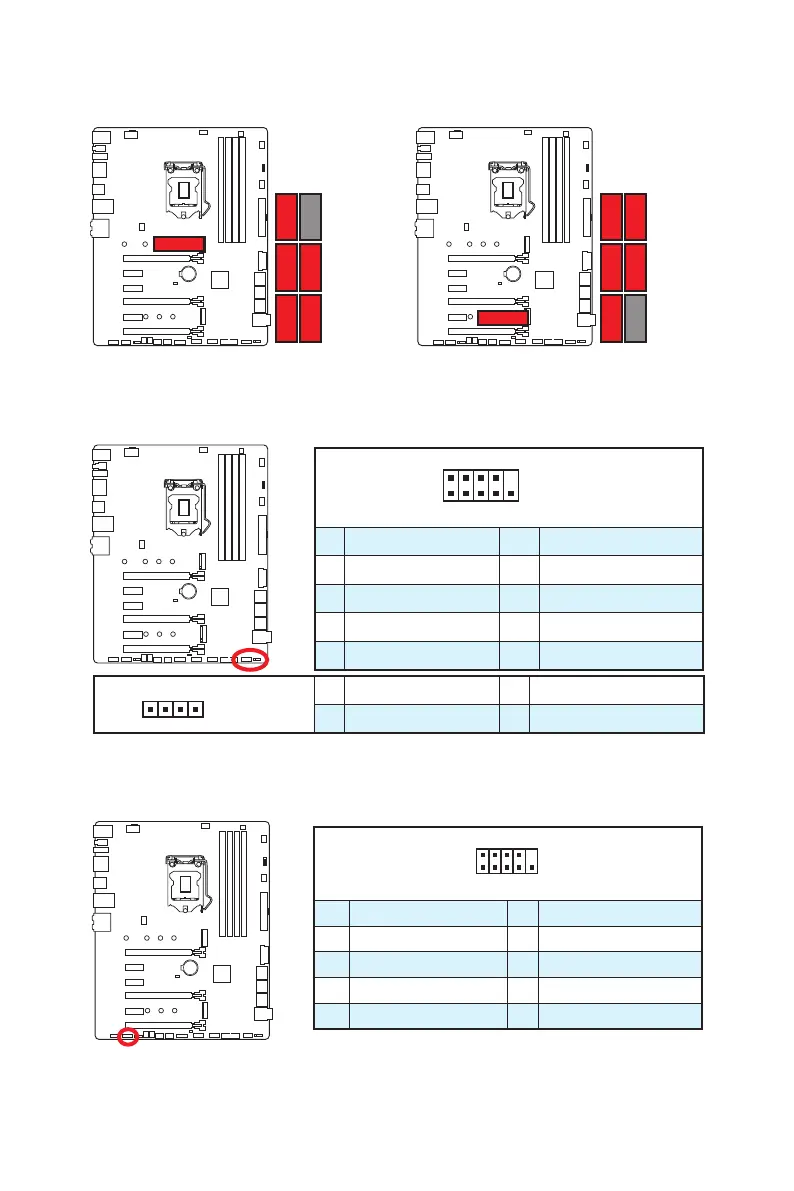

MSI Z270 GAMING M5 - JFP1, JFP2: Front Panel Connectors; JCOM1: Serial Port Connector

19
Overview of Components
1
2 10
9
1 DCD 2 SIN
3 SOUT 4 DTR
5 Ground 6 DSR
7 RTS 8 CTS
9 RI 10 No Pin
JCOM1: Serial Port Connector
This connector allows you to connect the optional serial port with bracket.
JFP1, JFP2: Front Panel Connectors
These connectors connect to the switches and LEDs on the front panel.
1
2 10
9
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
1
JFP2
1 Speaker - 2 Buzzer +
3 Buzzer - 4 Speaker +
1xM.2 SATA SSD + 5xSATA HDDs
SATA
SATA4 SATA2
SATA3
SATA6 SATA5
1xM.2 SATA SSD + 5xSATA HDDs
SATA
SATA4 SATA2
SATA1SATA3
SATA6
