MSI Z270 GAMING M6 AC - JLED1: RGB LED Connector; FLASHB1: BIOS FLASHBACK+ Button

43
Overview of Components

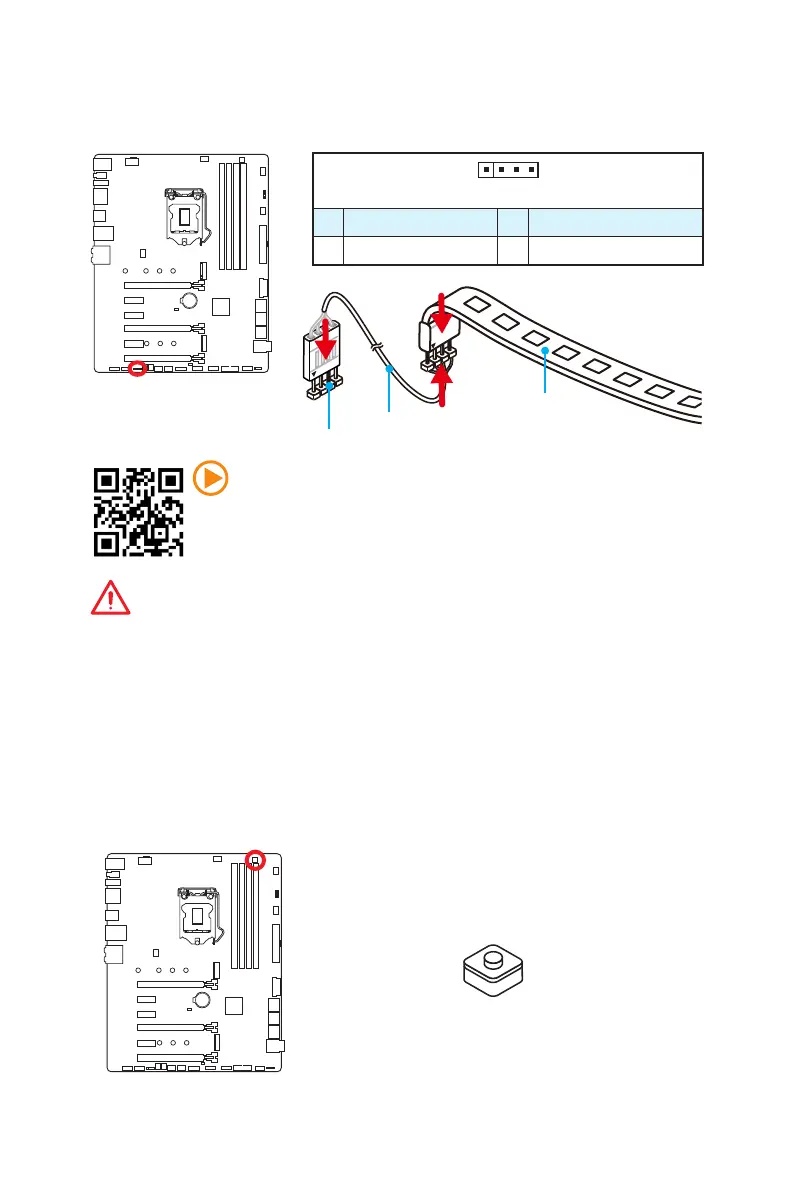

JLED1: RGB LED connector
This connector allows you to connect the 5050 RGB LED strips.
Important
y This connector supports 5050 RGB multi-color LED strips (12V/G/R/B) with the
maximum power rating of 3A (12V). Please keeping the LED strip shorter than 2
meters to prevent dimming.
y Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing the RGB LED strip.
y Please use GAMING APP to control the extended LED strip
1
1 +12V 2 G
3 R 4 B
1
JLED1
Extension cable
5050 LED strip
FLASHB1: BIOS FLASHBACK+ Button
This button is used to activate the BIOS FLASHBACK+ function. Please refer to page
51 for Updating BIOS with BIOS FLASHBACK+.
Video Demonstration
Watch the video to learn how to install 5050 RGB LED strips to RGB LED
connector.
https://youtu.be/CqNHyADzd2Q
