Representation of measured values:
The measured values are shown in the Integer format with a factor of 1, 10, 100 or 1000.
The factor depends on the respective measuring range and is used as follows:
Measuring range
Factor
1–9
1000
10–99
100
100–999
10
Ab 1000
1
If the value is below -16385, it is an error message and should be considered as a hexadecimal value
in order to break the errors down.
3.3 Average value of digital sensors – sensor addr. 1–96, Modbus register addr. 3001–3096
3.4 Average value of analog sensors – sensor addr. 1–32, Modbus register addr. 4001–4032

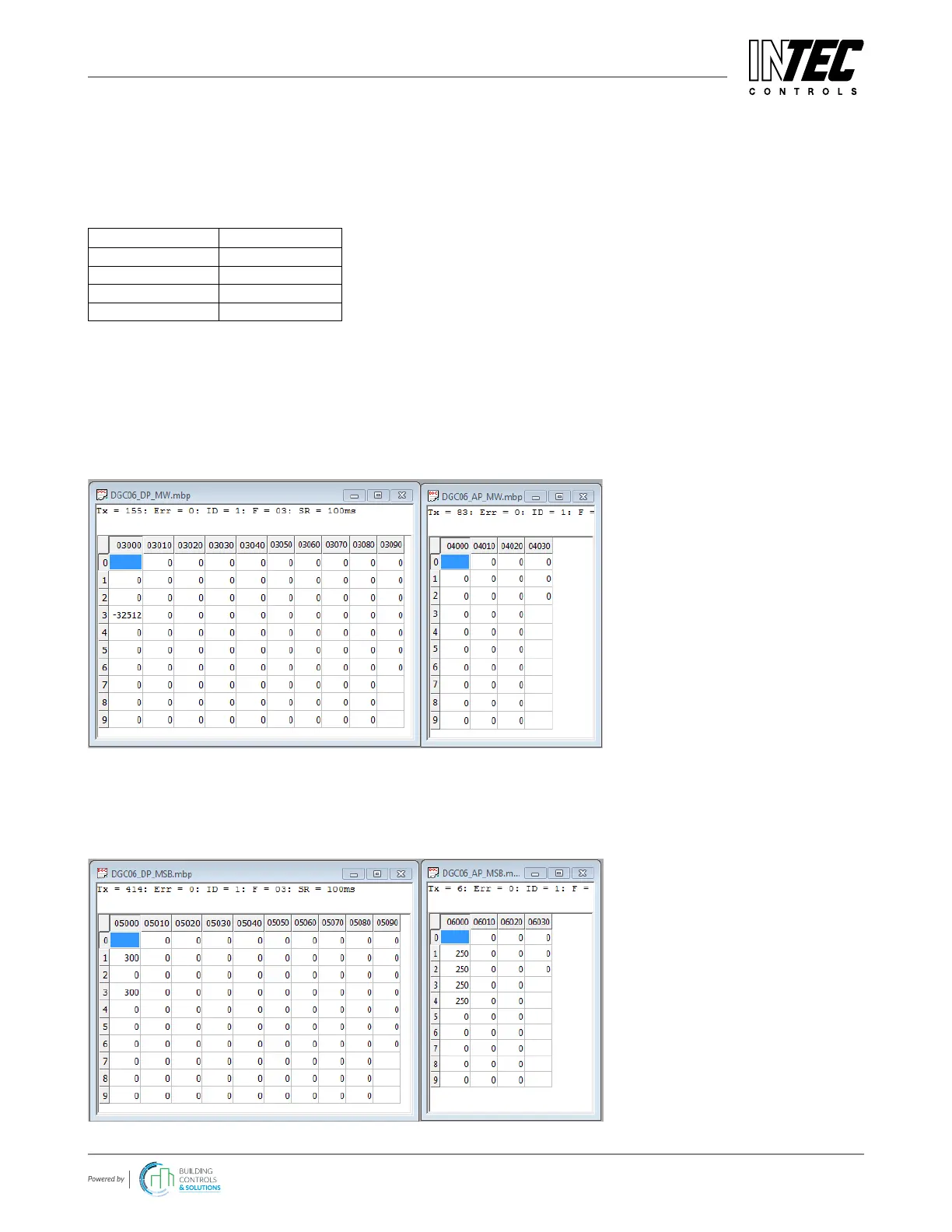

Figure 4: Average value of analog sensors – sensor addr. 1–32, Modbus register addr. 4001–4032
3.5 Measuring range of digital sensors– sensor addr. 1–96, Modbus register addr. 5001–5096
3.6 Measuring range of analog sensors – sensor addr. 1–32, Modbus register addr. 6001–6032
Figure 5: Measuring range of analog sensors – sensor addr. 1–32, Modbus register addr. 6001–6032
