MTD 142-760 - Page 22

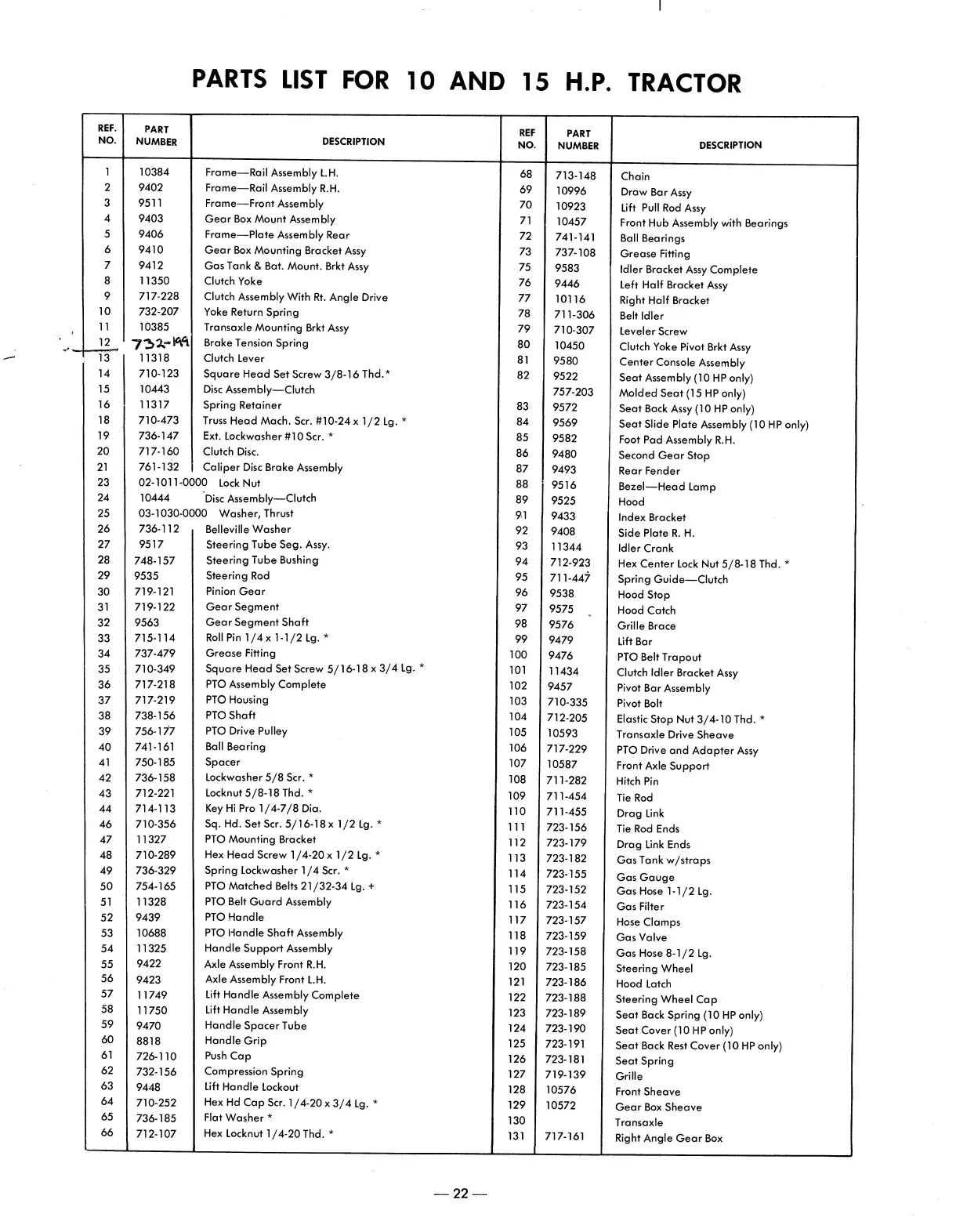

PARTS LIST FOR 10 AND 15 H.P. TRACTOR
REF.
NO.
PART
NUMBER
DESCRIPTION
REF
NO.
PART
NUMBER
DESCRIPTION
1
10384
Frame—Rail Assembly L.H.
68
713-148
Chain
2
9402
Frame—Rail Assembly R.H.
69
10996
Draw Bar Assy
3
9511
Frame—Front Assembly
70
10923
Lift Pull Rod Assy
4
9403
Gear Box Mount Assembly
71
10457
Front Hub Assembly with Bearings
5
9406
Frame—Plate Assembly Rear
72
741-141
Ball Bearings
6
9410
Gear Box Mounting Bracket Assy
73
737-108
Grease Fitting
7
9412
Gas Tank & Bat. Mount. Brkt Assy
75
9583
Idler Bracket Assy Complete
8
11350
Clutch Yoke
76
9446
Left Half Bracket Assy
9
717-228
Clutch Assembly With Rt. Angle Drive
77
10116
Right Half Bracket
10
732-207
Yoke Return Spring
78
711-306
Belt Idler
11
10385
Transaxle Mounting Brkt Assy
79
710-307
Leveler Screw
12
Brake Tension Spring
80
10450
Clutch Yoke Pivot Brkt Assy
13 11318 Clutch Lever
81
9580
Center Console Assembly
14
710-123
Square Head Set Screw 3/8-16 Thd.*
82
9522
Seat Assembly (10 HP only)
15
10443
Disc Assembly—Clutch
757-203
Molded Seat (15 HP only)
16 11317
Spring Retainer
83
9572
Seat Back Assy (10 HP only)
18
710-473
Truss Head Mach. Scr. #10-24 x 1 /2 Lg. *
84
9569
Seat Slide Plate Assembly (10 HP only)
19
736-147
Ext. Lockwasher #10 Scr. *
85
9582
Foot Pad Assembly R.H.
20
717-160
Clutch Disc.
86
9480
Second Gear Stop
21
761-132
Caliper Disc Brake Assembly
87
9493
Rear Fender
23
02-1011-0000 Lock Nut
88
9516
Bezel—Head Lamp
24
10444
Disc Assembly—Clutch
89
9525
Hood
25
03-1030-0000 Washer, Thrust
91
9433
Index Bracket
26
736-112
Belleville Washer
92
9408
Side Plate R. H.
27 9517
Steering Tube Seg. Assy.
93
11344
Idler Crank
28
748-157
Steering Tube Bushing
94
712-923
Hex Center Lock Nut 5/8-18 Thd. *
29
9535
Steering Rod
95
711-447
Spring Guide—Clutch
30
719-121
Pinion Gear
96
9538
Hood Stop
31
719-122
Gear Segment
97
9575
Hood Catch
32
9563
Gear Segment Shaft
98
9576
Grille Brace
33
715-114
Roll Pin 1/4 X 1-1/2 Lg. *
99
9479
Lift Bar
34
737-479
Grease Fitting
100
9476
PTO Belt Trapout
35
710-349
Square Head Set Screw 5/16-18 x 3/4 Lg. *
101
11434
Clutch Idler Bracket Assy
36 717-218
PTO Assembly Complete
102
9457
Pivot Bar Assembly
37 717-219
PTO Housing
103
710-335
Pivot Bolt
38 738-156
PTO Shaft
104
712-205
Elastic Stop Nut 3/4-10 Thd. *
39
756-177 PTO Drive Pulley
105
10593
Transaxle Drive Sheave
40
741-161
Ball Bearing
106
717-229
PTO Drive and Adapter Assy
41 750-185
Spacer
107
10587
Front Axle Support
42 736-158
Lockwasher 5/8 Scr. *
108
711-282
Hitch Pin
43
712-221
Locknut 5/8-18 Thd. *
109
711-454
Tie Rod
44
714-113
Key Hi Pro 1/4-7/8 Dia.
no
711-455
Drag Link
46
710-356
Sq. Hd. Set Scr. 5/16-18x1/2 Lg. *
111
723-156
Tie Rod Ends
47
11327 PTO Mounting Bracket
112
723-179
Drag Link Ends
48
710-289 Hex Head Screw 1 /4-20 x 1 /2 Lg. *
113
723-182
Gas Tank w/straps
49
736-329
Spring Lockwasher 1 /4 Scr. *
114
723-155
Gas Gauge
50
754-165
PTO Matched Belts 21/32-34 Lg. +
115
723-152
Gas Hose 1-1/2 Lg.
51
11328
PTO Belt Guard Assembly
116
723-154
Gas Filter
52 9439
PTO Handle
117
723-157
Hose Clamps
53 10688
PTO Handle Shaft Assembly
118
723-159
Gas Valve
54
11325
Handle Support Assembly
119
723-158
Gas Hose 8-1 /2 Lg.
55
9422
Axle Assembly Front R.H.
120
723-185
Steering Wheel
56
9423
Axle Assembly Front L.H.
121
723-186
Hood Latch
57
11749
Lift Handle Assembly Complete
122
723-188
Steering Wheel Cap
58
11750
Lift Handle Assembly
123
723-189
Seat Back Spring (10 HP only)
59
9470
Handle Spacer Tube
124
723-190
Seat Cover (10 HP only)
60
8818
Handle Grip
125
723-191
Seat Back Rest Cover (10 HP only)
61
726-110
Push Cap
126
723-181
Seat Spring
62
732-156
Compression Spring
127
719-139
Grille
63
9448
Lift Handle Lockout
128
10576
Front Sheave
64
710-252 Hex Hd Cap Scr. 1 /4-20 x 3/4 Lg. *
129
10572
Gear Box Sheave
65
736-185
Flat Washer *
130
Transaxle
66
712-107
Hex Locknut 1 /4-20 Thd. *
131
717-161
Right Angle Gear Box
— 22 —
