MTD 142-760 - Page 23

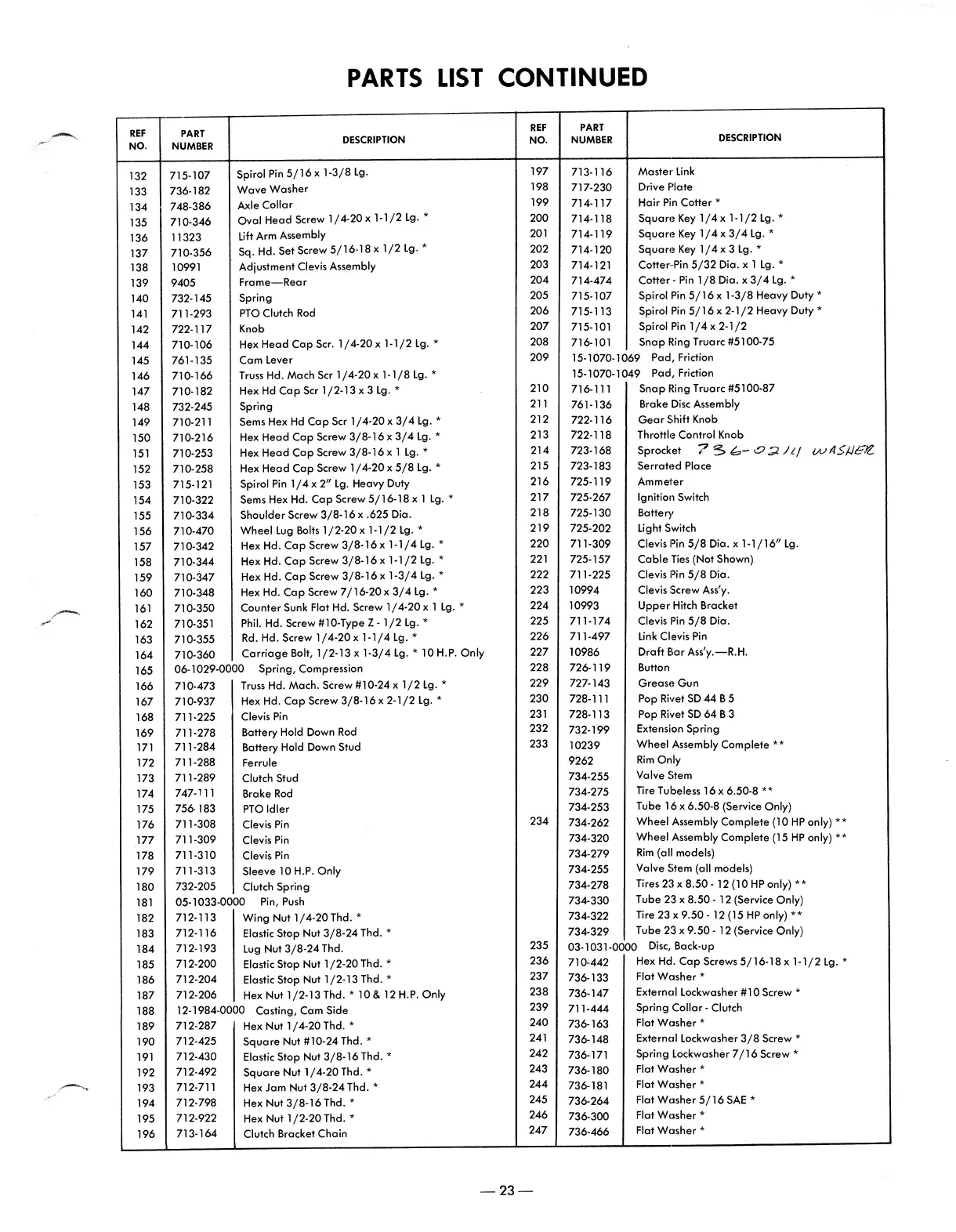

PARTS LIST CONTINUED
REF
NO.
PART
NUMBER
DESCRIPTION
REF
NO.
PART
NUMBER
DESCRIPTION
132
715-107
Spiral Pin 5/16 X 1-3/8 Lg.
197
713-116
Master Link
133
736-182
Wave Washer
198
717-230
Drive Plate
134
748-386
Axle Collar
199
714-117
Hair Pin Cotter *
135
710-346
Oval Head Screw 1/4-20 x 1-1/2 Lg. *
200
714-118
Square Key 1/4 x 1-1/2 Lg. *
136
11323
Lift Arm Assembly
201
714-119
Square Key 1 /4 x 3/4 Lg. *
137
710-356
Sq. Hd. Set Screw 5/16-18 x 1/2 Lg. *
202
714-120
Square Key 1 /4 x 3 Lg. *
138
10991
Adjustment Clevis Assembly
203
714-121
Cotter- Pin 5/32 Dia. x 1 Lg. *
139 9405
Frame—Rear
204
714-474
Cotter - Pin 1/8 Dia. x 3/4 Lg. *
140
732-145
Spring
205
715-107
Spirol Pin 5/16 X 1 -3/8 Heavy Duty *
141
711-293
PTO Clutch Rod
206
715-113
Spirol Pin 5/16x2-1/2 Heavy Duty *
142
722-117
Knob
207
715-101
Spirol Pin l/4x 2-1/2
144
710-106
Hex Head Cap Scr. 1 /4-20 x 1-1/2 Lg. *
208
716-101
Snap Ring Truarc #5100-75
145
761-135
Cam Lever
209
15-1070-1069 Pad, Friction
146
710-166
Truss Hd. Mach Scr 1/4-20 x 1-1/8 Lg. *
15-1070-1049 Pad, Friction
147
710-182
Hex Hd Cap Scr 1/2-13 X 3 Lg. *
210
716-111
Snap Ring Truarc #5100-87
148
732-245
Spring
211
761-136
Brake Disc Assembly
149
710-211
Sems Hex Hd Cap Scr 1/4-20 x 3/4 Lg. *
212
722-116
Gear Shift Knob
150
710-216
Hex Head Cap Screw 3/8-16 x 3/4 Lg. *
213
722-118
Throttle Control Knob
151
710-253
Hex Head Cap Screw 3/8- 16x1 Lg. *
214
723-168 Sprocket ^ 3 /Ij laj
152
710-258
Hex Head Cap Screw 1 /4-20 x 5/8 Lg. *
215
723-183
Serrated Place
153
715-121
Spirol Pin 1 /4 x 2" Lg. Heavy Duty
216
725-119
Ammeter
154
710-322
Sems Hex Hd. Cap Screw 5/16-18 x 1 Lg. *
217
725-267
Ignition Switch
155
710-334
Shoulder Screw 3/8-16 x .625 Dia.
218
725-130
Battery
156
710-470
Wheel Lug Bolts 1/2-20 x 1-1/2 Lg. *
219
725-202
Light Switch
157
710-342
Hex Hd. Cap Screw 3/8-16 x 1-1/4 Lg. *
220
711-309
Clevis Pin 5/8 Dia. x 1-1/16" Lg.
158
710-344
Hex Hd. Cap Screw 3/8-16 x 1-1/2 Lg. *
221
725-157
Cable Ties (Not Shown)
159
710-347
Hex Hd. Cap Screw 3/8-16 x 1-3/4 Lg. *
222
711-225
Clevis Pin 5/8 Dia.
160 710-348
Hex Hd. Cap Screw 7/16-20 x 3/4 Lg. *
223
10994
Clevis Screw Ass'y.
161
710-350
Counter Sunk Flat Hd. Screw 1 /4-20 x 1 Lg. *
224
10993
Upper Hitch Bracket
162
710-351
Phil. Hd. Screw #10-Type Z - 1/2 Lg. *
225
711-174
Clevis Pin 5/8 Dia.
163
710-355
Rd. Hd. Screw 1/4-20 x 1 -1/4 Lg. *
226
711-497
Link Clevis Pin
164
710-360
Carriage Bolt, 1/2-13 x 1-3/4 Lg. * 10 H.P. Only
227
10986
Draft Bar Ass'y-—R.H.
165
06-1029-0000 Spring, Compression
228
726-119
Button
166
710-473
Truss Hd. Mach. Screw #10-24 x 1/2 Lg. *
229
727-143
Grease Gun
167
710-937
Hex Hd. Cap Screw 3/8-16 x 2-1/2 Lg. *
230
728-111
Pop Rivet SD 44 B 5
168
711-225
Clevis Pin
231
728-113
Pop Rivet SD 64 B 3
169 711-278
Battery Hold Down Rod
232
732-199
Extension Spring
171
711-284
Battery Hold Down Stud
233
10239
Wheel Assembly Complete **
172
711-288
Ferrule
9262
Rim Only
173
711-289
Clutch Stud
734-255
Valve Stem
174
747-Tll
Brake Rod
734-275
Tire Tubeless 16 x 6.50-8 **
175
756 183
PTO Idler
734-253
Tube 16 X 6.50-8 (Service Only)
176
711-308
Clevis Pin
234
734-262
Wheel Assembly Complete (10 HP only) **
177
711-309
Clevis Pin
734-320
Wheel Assembly Complete (15 HP only) **
178
711-310
Clevis Pin
734-279
Rim (all models)
179
711-313
Sleeve 10 H.P. Only
734-255
Valve Stem (all models)
180
732-205
Clutch Spring
734-278
Tires 23x8.50- 12 (10 HP only) **
181
05-1033-0000 Pin, Push
734-330
Tube 23 x 8.50 - 12 (Service Only)
182
712-113 Wing Nut 1/4-20 Thd. *
734-322
Tire 23 x 9.50 - 12 (15 HP only) **
183
712-116
Elastic Stop Nut 3/8-24 Thd. *
734-329
Tube 23 x 9.50 - 12 (Service Only)
184
712-193 Lug Nut 3/8-24 Thd.
235
03-1031-0000 Disc, Back-up
185
712-200
Elastic Stop Nut 1 /2-20 Thd. *
236
710-442
Hex Hd. Cap Screws 5/16-18 x 1-1/2 Lg. *
186
712-204
Elastic Stop Nut 1/2-13 Thd. *
237
736-133
Flat Washer *
187
712-206
Hex Nut 1/2-13 Thd. * 10& 12H.P. Only
238
736-147
External Lockwasher #10 Screw *
188
1 12-1984-0000 Casting, Cam Side
239
711-444
Spring Collar - Clutch
189
712-287
Hex Nut 1 /4-20 Thd. *
240
736-163
Flat Washer *
190
712-425 Square Nut #10-24 Thd. *
241
736-148
External Lockwasher 3/8 Screw *
191
712-430
Elastic Stop Nut 3/8-16 Thd. *
242
736-171
Spring Lockwasher 7/16 Screw *
192
712-492
Square Nut 1/4-20 Thd. *
243
736-180
Flat Washer *
193
712-711
Hex Jam Nut 3/8-24 Thd. *
244
736-181
Flat Washer *
194
712-798
Hex Nut 3/8-16 Thd. *
245
736-264
Flat Washer 5/16SAE *
195
712-922
Hex Nut 1/2-20 Thd. *
246
736-300
Flat Washer *
196
713-164
Clutch Bracket Chain
247
736-466
Flat Washer *
23 —
