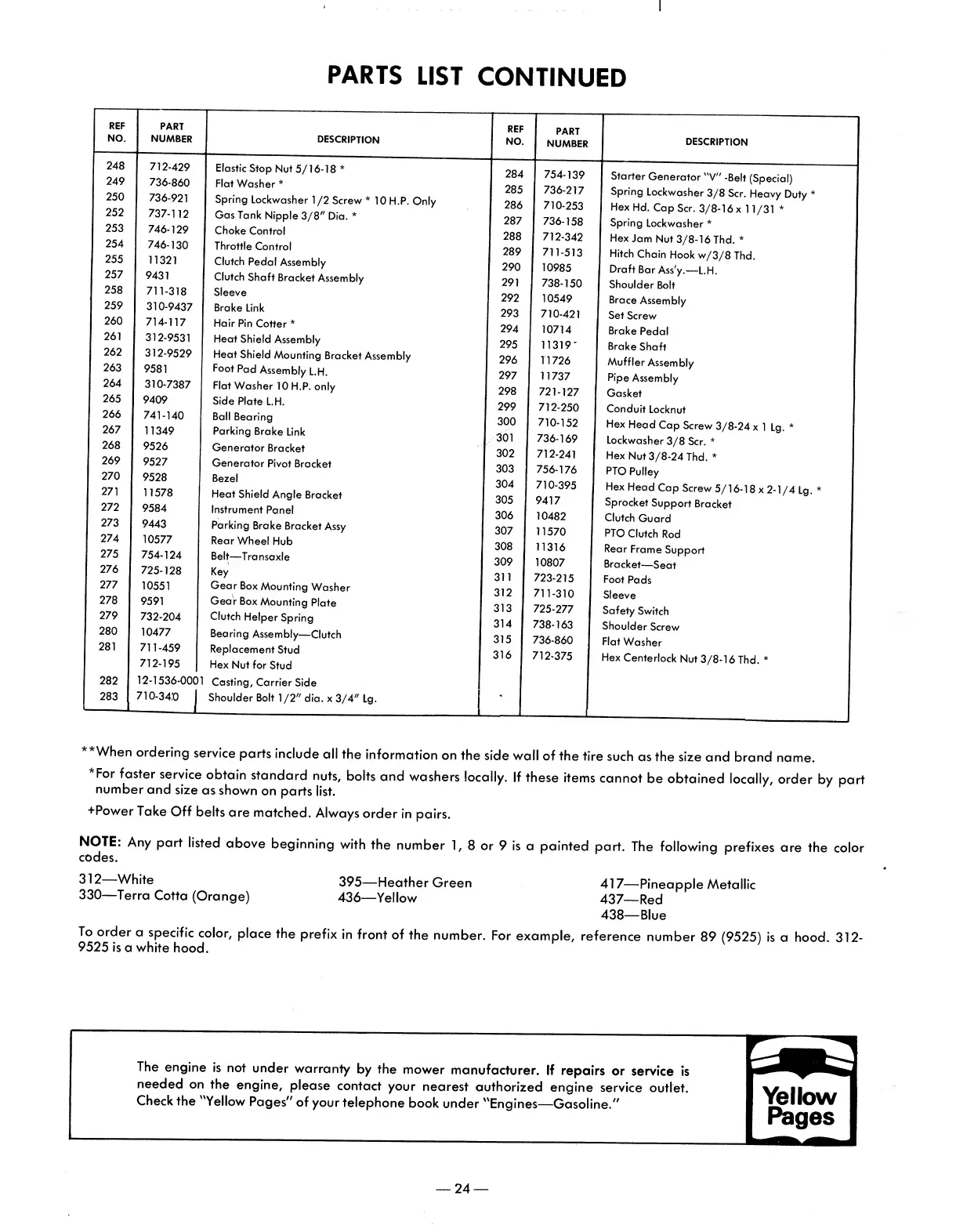

MTD 142-760 - Page 24

PARTS LIST CONTINUED
REF
NO.
PART
NUMBER
DESCRIPTION
REF
NO.
PART
NUMBER
DESCRIPTION
248
249
250
252
253
254
255
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
712-429
736-860
736- 9 21
737- 1 1 2
746-129
746-130
11321
9431
711-318
310-9437
714-117
312-9531
312-9529
9581
310-7387
9409
741-140
11349
9526
9527
9528
11578
9584
9443
10577
754-124
725-128
10551
9591
732-204
10477
711- 459
712- 1 9 5
12-1536-000'
7 1 0 - 34:0 1
Elastic Stop Nut 5/16-18 *
Flat Washer *
Spring Lockwasher 1/2 Screw * 10 H.P. Only
Gas Tank Nipple 3/8" Dia. *
Choke Control
Throttle Control
Clutch Pedal Assembly
Clutch Shaft Bracket Assembly
Sleeve
Brake Link
Hair Pin Cotter *
Heat Shield Assembly
Heat Shield Mounting Bracket Assembly
Foot Pad Assembly L.H.
Flat Washer 10 H.P. only
Side Plate L.H.
Ball Bearing
Parking Brake Link
Generator Bracket
Generator Pivot Bracket
Bezel
Heat Shield Angle Bracket
Instrument Panel
Parking Brake Bracket Assy
Rear Wheel Hub
Belt—Transaxle
Key
Gear Box Mounting Washer
Gear Box Mounting Plate
Clutch Helper Spring
Bearing Assembly—Clutch
Replacement Stud
Hex Nut for Stud
1 Casting, Carrier Side
Shoulder Bolt 1/2" dia. X 3/4" Lg. j
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
311
312
313
314
315
316
754-139
736-217
710- 2 53
736-158
712-342
711- 513
10985
738-150
10549
710-421
10714
11319'
11726
11737
721-127
712- 2 50
710-152
736-169
712-241
756-176
710- 3 95
9417
10482
11570
11316
10807
723-215
711- 3 1 0
725-277
738-163
736-860
712- 3 7 5
Starter Generator "V" -Belt (Special)
Spring Lockwasher 3/8 Scr. Heavy Duty *
Hex Hd. Cap Scr. 3/8-16 x 11/31 *
Spring Lockwasher *
Hex Jam Nut 3/8-16 Thd. *
Hitch Chain Hook w/3/8 Thd.
Draft Bar Ass'y.—L.H.
Shoulder Bolt
Brace Assembly
Set Screw
Brake Pedal
Brake Shaft
Muffler Assembly
Pipe Assembly
Gasket
Conduit Locknut
Hex Head Cap Screw 3/8-24 x 1 Lg. *
■ Lockwasher 3/8 Scr. *
Hex Nut 3/8-24 Thd. *
PTO Pulley
Hex Head Cap Screw 5/16-18 x 2-1/4 Lg. *
Sprocket Support Bracket
Clutch Guard
PTO Clutch Rod
Rear Frame Support
Bracket—Seat
Foot Pads
Sleeve
Safety Switch
Shoulder Screw
Flat Washer
Hex Centerlock Nut 3/8-16 Thd. *
When ordering service parts include all the information on the side v/all of the tire such as the size and brand name.
For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part
number and size as shown on parts list.
+Power Take Off belts are matched. Always order in pairs.
poi't listed above beginning with the number 1, 8 or 9 is a painted part. The following prefixes are the color
codes.
312 White 395—Heather Green 417—Pineapple Metallic
330—Terra Cotta (Orange) 436—Yellow 437—Red
438—Blue
To order a specific color, place the prefix in front of the number. For example, reference number 89 (9525) is a hood. 312-
9525 is a white hood.
The engine is not under warranty by the mower manufacturer. If repairs or service is
needed on the engine, please contact your nearest authorized engine service outlet.
Check the "Yellow Pages^^ of your telephone book under "Engines—Gasoline.
Yellow
F^ges
24 —
