Choke (If Equipped)
The choke control is located either on the left side of the handle
or on the engine below the engine switch and when activated,
closes the choke plate on the carburetor and aids in starting
the engine. Pull the choke control to activate the choke on the
engine. Use of the choke may not be necessary if the engine is
warm or the air temperature is high.
Primer (If Equipped)
The primer is located on the left side of the
engine, behind the air cleaner. Pressing the
primer forces fuel directly into the engine’s
carburetor to aid in starting the engine.
Engine Switch (If Equipped)
The engine switch is located on the engine. Turn the switch “On”
when starting the engine and turn it to “Off” when you want to
shut it down.
Fuel Shut-Off Valve (If Equipped)
The fuel shut off valve is located on the engine to the right of the
valve off when towing or transporting equipment.
Oil Drain
Removing the oil drain plug will drain the oil from the engine.
The engine is equipped with a side drain, and on select units, you
may also access a bottom drain.
Oil Fill Cap
Remove the oil fill cap to check the oil level and add oil.
Fuel Cap
Remove the fuel cap to add fuel.
NOTE: Some engines may not have the fuel cap installed for
shipping purposes. To install, remove and discard the fuel tank
dust cap labeled “Discard”. Remove the bubble wrap packaging
from around the fuel cap and tighten securely.
† If Equipped
Oil Drain
Muffler
Spark Plug
Choke†
Fuel Shut-Off
Valve†
Air Cleaner
Starter Handle
Oil Fill Cap
Fuel Cap
Primer†
Engine
Switch†

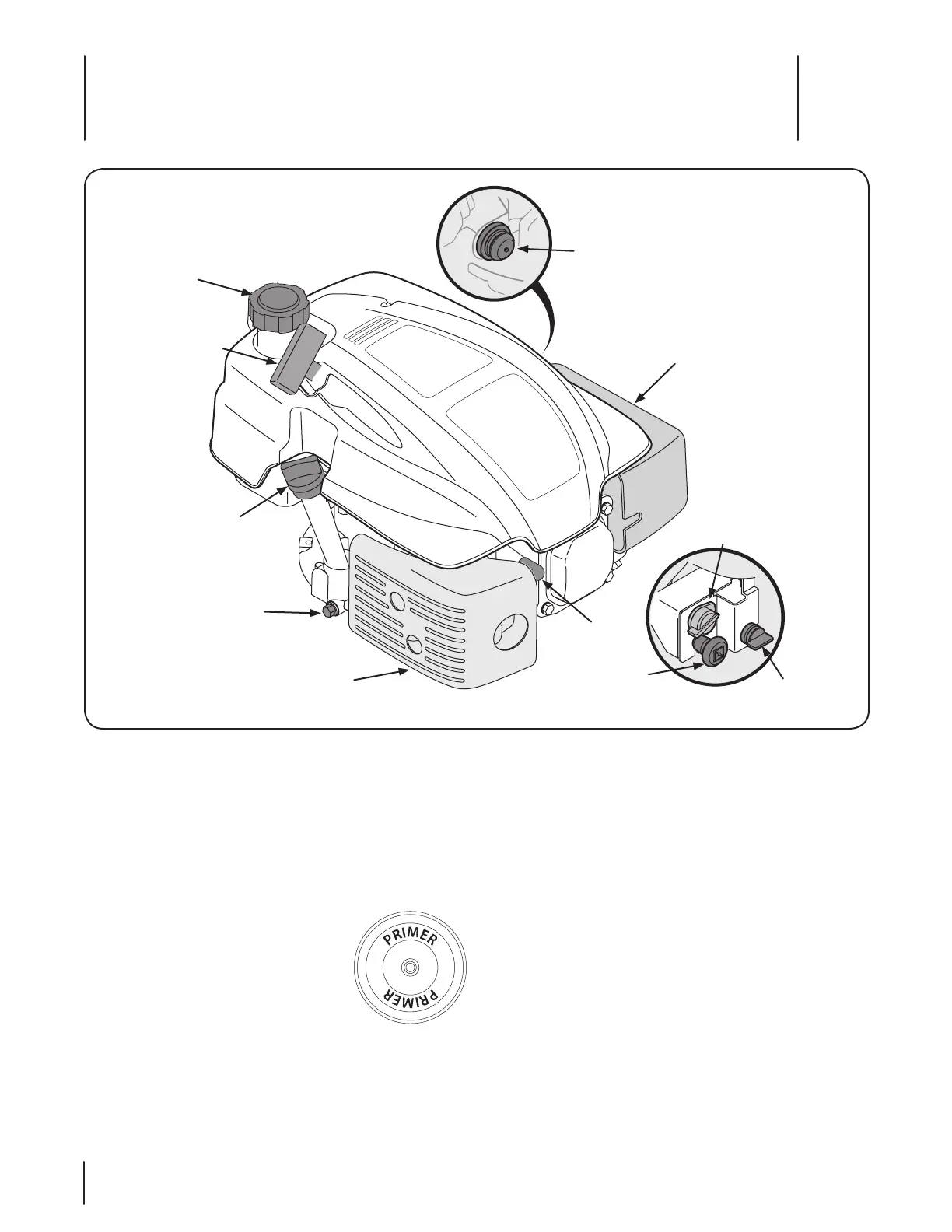

Figure 4-1
