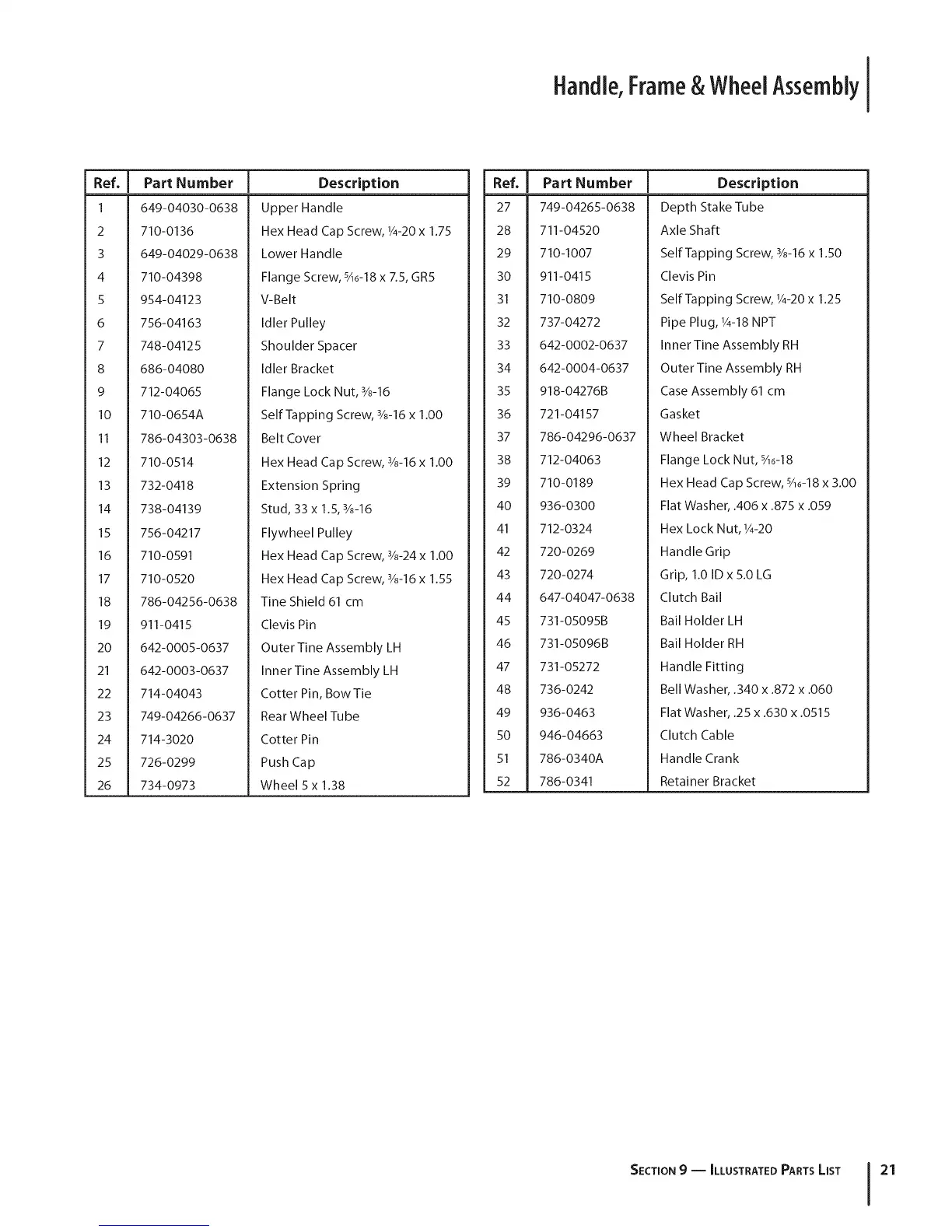

Handle,Frame&WheelAssembly
Ref. I
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
2O
21
22
23
24
25
26
Part Number
649-04030-0638
710-0136
649-04029-0638
710-04398
954-04123
756-04163
748-04125
686-04080
712-04065
710-0654A
786-04303-0638
710-0514
732-0418
738-04139
756-04217
710-0591
710-0520
786-04256-0638
911-0415
642-0005-0637
642-0003-0637
714-04043
749-04266-0637
714-3020
726-0299
734-0973
Description
Upper Handle
Hex Head Cap Screw, 1/4-20x 1.75
Lower Handle
Flange Screw, sA6-18x 7.5, GR5
V-Belt
Idler Pulley
Shoulder Spacer
Idler Bracket
Flange Lock Nut, 3/8-16
Self Tapping Screw, 3/8-16x 1.00
Belt Cover
Hex Head Cap Screw, 3/8-16x 1.00
Extension Spring
Stud, 33 x 1.5, 3/8-16
Flywheel Pulley
Hex Head Cap Screw, 3/8-24x 1.00
Hex Head Cap Screw, 3/8-16x 1.55
Tine Shield 61 cm
Clevis Pin
Outer Tine Assembly LH
Inner Tine Assembly LH
Cotter Pin, Bow Tie
Rear Wheel Tube
Cotter Pin
Push Cap
Wheel 5 x 1.38
Ref, I
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
Part Number
749-04265-0638
711-04520
710-1007
911-0415
710-0809
737-04272
642-0002-0637
642-0004-0637
918-04276B
721-04157
786-04296-0637
712-04063
710-0189
936-0300
712-0324
720-0269
720-0274
647-04047-0638
731-05095B
731-05096B
731-05272
736-0242
936-0463
946-04663
786-0340A
786-0341
Description
Depth Stake Tube
Axle Shaft
Self Tapping Screw, 3/8-16x 1.50
Clevis Pin
Self Tapping Screw, 1/4-20x 1.25
Pipe Plug, 1/4-18NPT
Inner Tine Assembly RH
Outer Tine Assembly RH
Case Assembly 61 cm
Gasket
Wheel Bracket
Flange Lock Nut, sA6-18
Hex Head Cap Screw, sA6-18x 3.00
Flat Washer, .406 x .875 x .059
Hex Lock Nut, 1/4-20
Handle Grip
Grip, 1.0 ID x 5.0 LG
Clutch Bail
Bail Holder LH
Bail Holder RH
Handle Fitting
Bell Washer, .340 x .872 x .060
Flat Washer, .25 x .630 x .0515
Clutch Cable
Handle Crank
Retainer Bracket
SECTION 9 -- ILLUSTRATED PARTS LIST 21
