Positioning the Upper Handle
1. Remove packing material, if present.
2. Raise the upper handle in the direction shown in
Figure 3-1 until it clicks into the operating position.
Make sure not to pinch or crimp the cable.
3. Tighten the knobs. See Figure 3-2.
3
Snow
Thrower
Setup
Figure 3-3
NOTE: All references
to left or right side of
the snow thrower is
from the operating
position only.
NOTE: This Operator’s
Manual covers several
models.
Not all features refer-
enced in this manual
are applicable to all
snow thrower models.
IMPORTANT:
Do not use the
chute handle to lift
the snow thrower.
Chute Assembly
Rotate the discharge chute to the left or right using chute
handle. The angle of the discharge chute controls the
distance that the snow is thrown. Tilt the discharge chute
up for greater distance; tilt down for less distance. See
Figure 3-3.
Loosen the hand knob on the side of the discharge chute
to adjust. Tilt the chute to the desired position, and tighten
the knob.
IMPORTANT: Do not use the chute handle to lift the
snow thrower

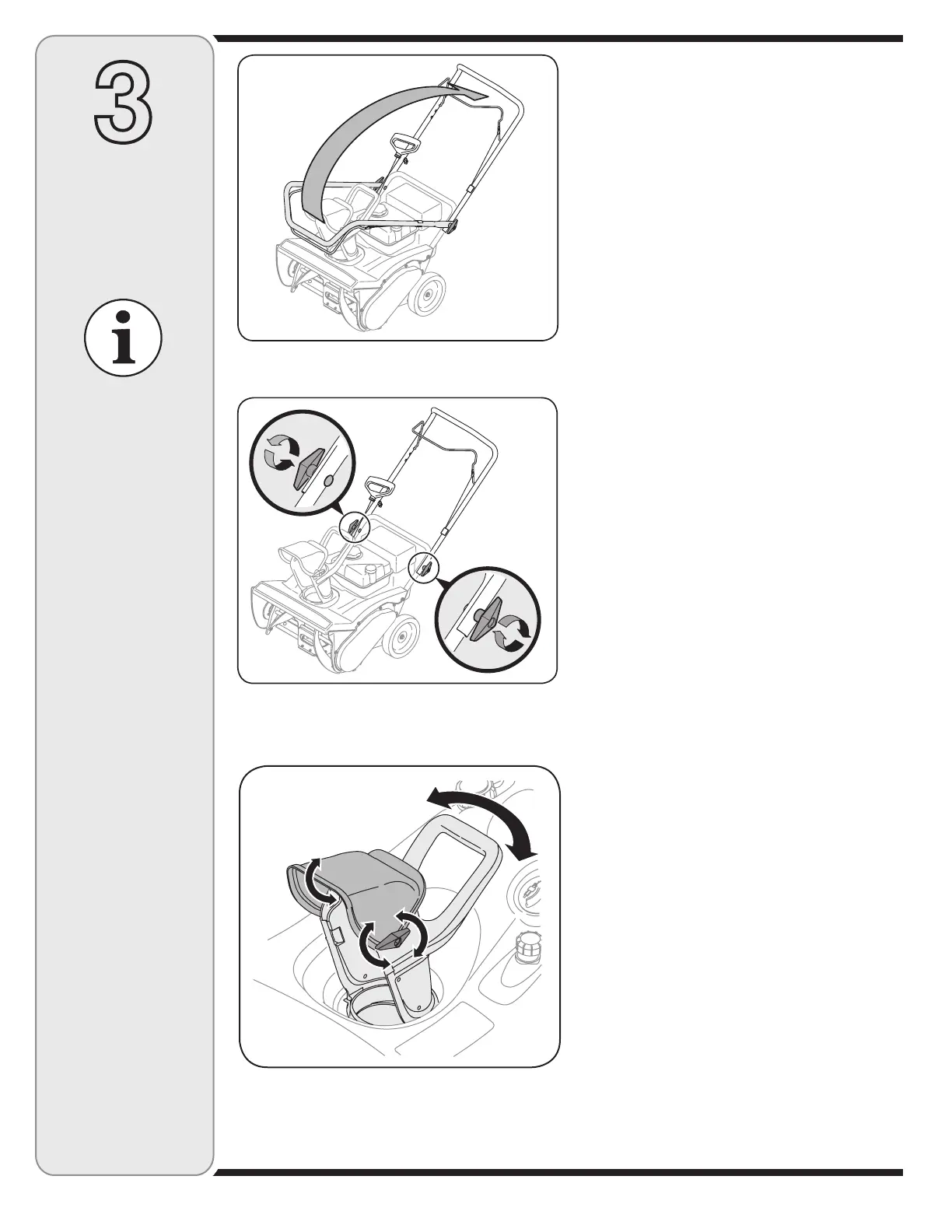

Figure 3-1
Figure 3-2
