Reassemblethenewbelt,followinginstructionsin
reverseorder.Makecertaintheforwarddrivebeltis
assembledwiththewidesideofthebeltawayfrom
thetransmissionandenginepulleys.
Reverse Idler
ley
\
Transmission
Pulley
-nglne
Pulley
Forward
Idler Pulley Nut
Belt

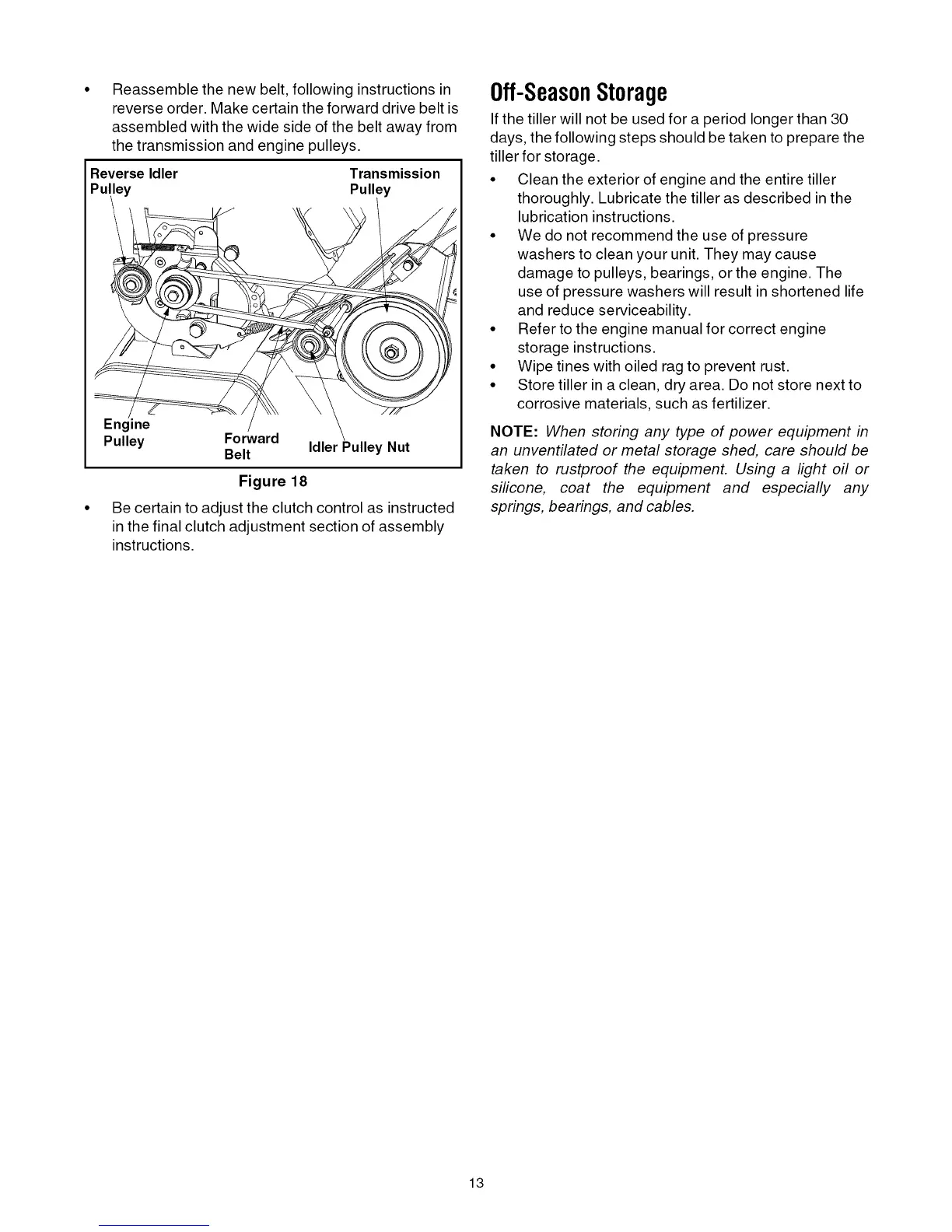

Figure 18
Be certain to adjust the clutch control as instructed
in the final clutch adjustment section of assembly
instructions.
Off-SeasonStorage
If the tiller will not be used for a period longer than 30
days, the following steps should be taken to prepare the
tiller for storage.
• Clean the exterior of engine and the entire tiller
thoroughly. Lubricate the tiller as described in the
lubrication instructions.
• We do not recommend the use of pressure
washers to clean your unit. They may cause
damage to pulleys, bearings, or the engine. The
use of pressure washers will result in shortened life
and reduce serviceability.
• Refer to the engine manual for correct engine
storage instructions.
• Wipe tines with oiled rag to prevent rust.
• Store tiller in a clean, dry area. Do not store next to
corrosive materials, such as fertilizer.
NOTE: When storing any type of power equipment in
an unventilated or metal storage shed, care should be
taken to rustproof the equipment. Using a light oil or
silicone, coat the equipment and especially any
springs, bearings, and cables.
13
To Next Page
