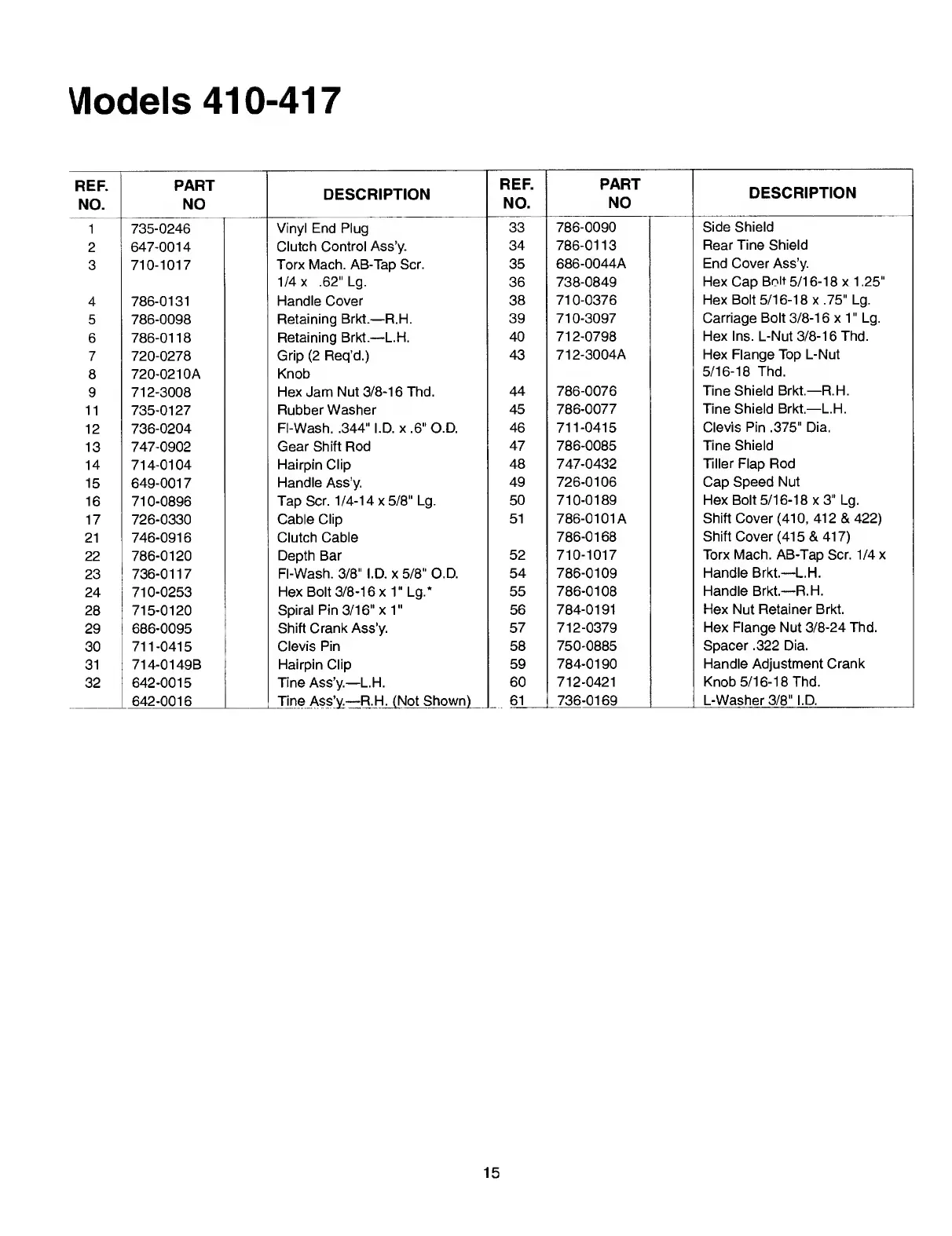

MTD 410 - Page 15

VIodels 410-417
REF.
NO.
PART
NO
DESCRIPTION
REF.
NO.
PART
NO
DESCRIPTION
1 735-0246
Vinyl End Plug
33
786-0090
Side Shield
2
647-0014 Clutch Control Ass’y-
34
786-0113
Rear Tine Shield
3
710-1017
Torx Mach. AB-Tap Scr.
35
686-0044A End Cover Ass’y.
1/4x .62" Lg.
36 738-0849
Hex Cap Bolt 5/16-18 x 1.25"
4 786-0131
Handle Cover
38 710-0376
Hex Bolt 5/16-18 X. 75" Lg.
5 786-0098
Retaining Brkt.—R.H.
39
710-3097 Carriage Bolt 3/8-16 x 1" Lg.
6
786-0118
Retaining Brkt.—L.H.
40 712-0798
Hex Ins. L-Nut 3/8-16 Thd.
7 720-0278
Grip (2 Req’d.)
43
712-3004A Hex Flange Top L-Nut
8
720-021OA
Knob
5/16-18 Thd.
9 712-3008
Hex Jam Nut 3/8-16 Thd.
44
786-0076
Tine Shield Brkt.—R.H.
11 735-0127
Rubber Washer
45
786-0077 Tine Shield Brkt.—L.H.
12 736-0204
FI-Wash. .344“ I.D. x .6" O.D.
46
711-0415 Clevis Pin .375" Dia.
13
747-0902
Gear Shift Rod
47 786-0085 Tine Shield
14 714-0104
Hairpin Clip
48
747-0432 Tiller Flap Rod
15
649-0017
Handle Ass’y.
49 726-0106
Cap Speed Nut
16 710-0896
Tap Scr. 1/4-14x5/8" Lg.
50 710-0189
Hex Bolt 5/16-18 X 3" Lg.
17 726-0330
Cable Clip
51
786-0101A
Shift Cover (410, 412 & 422)
21
746-0916
Clutch Cable
786-0168
Shift Cover (415 & 417)
22 786-0120
Depth Bar
52 710-1017
Torx Mach. AB-Tap Scr. 1/4 x
23
736-0117
FI-Wash. 3/8" I.D. x 5/8" O.D.
54
786-0109 Handle Brkt.—L.H.
24 710-0253
Hex Bolt 3/8-16 X 1" Lg.*
55 786-0108
Handle Brkt.—R.H.
28 715-0120
Spiral Pin 3/16" xl" 56
784-0191
Hex Nut Retainer Brkt.
29 686-0095
Shift Crank Ass'y.
57
712-0379
Hex Flange Nut 3/8-24 Thd.
30 711-0415
Clevis Pin
58 750-0885
Spacer .322 Dia.
31
714-0149B Hairpin Clip
59 784-0190
Handle Adjustment Crank
32 642-0015
Tine Ass’y.—L.H.
60
712-0421 Knob 5/16-18 Thd.
642-0016
Tine Ass’v.—R.H. (Not Shown)
61 736-0169
L-Washer 3/8" I.D.
15
