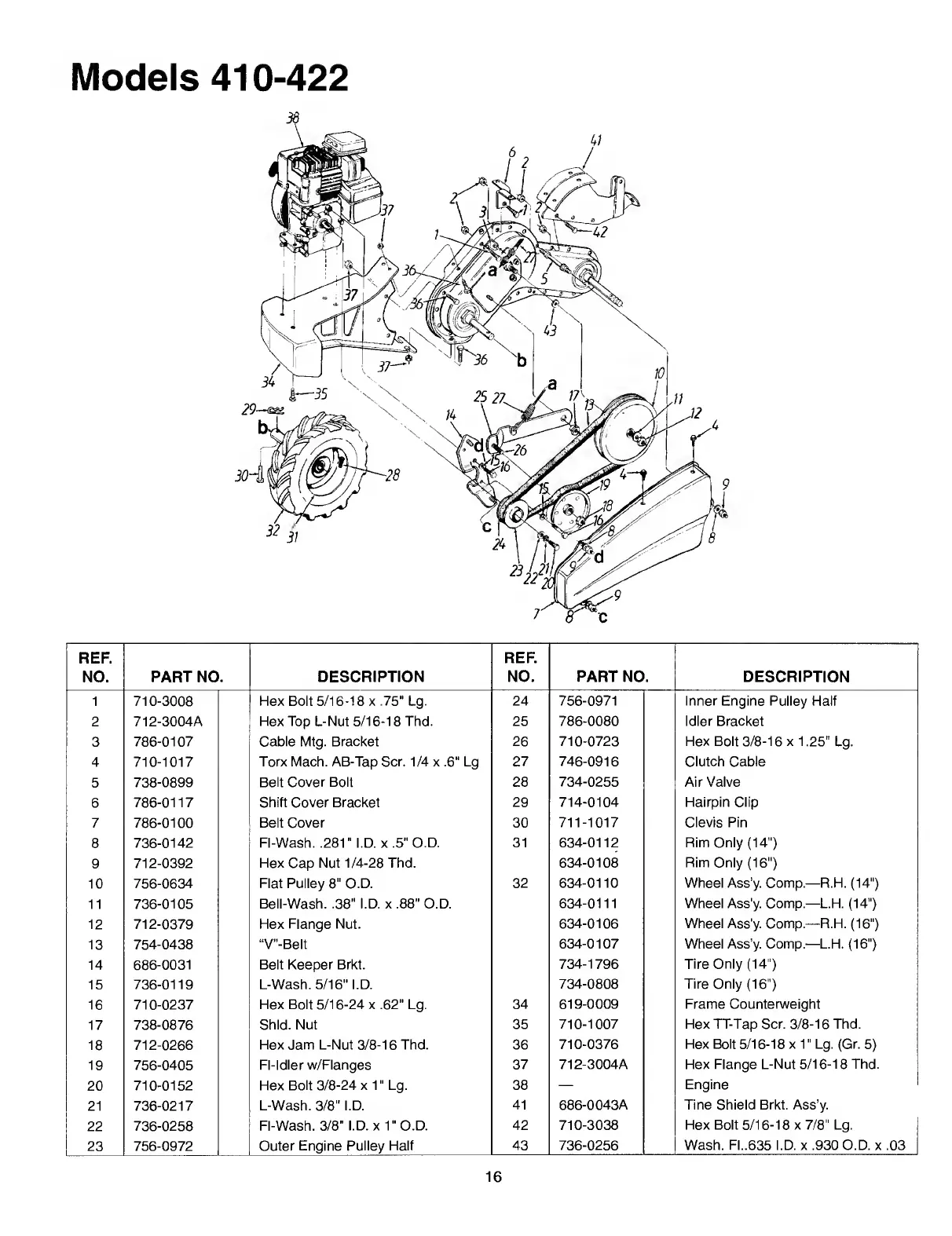

Models 410-422
REF.
NO.
PART NO. DESCRIPTION
REF.
NO. PART NO.
DESCRIPTION
1
710-3008
Hex Bolt 5/16-18 x .75" Lg.
24 756-0971
Inner Engine Pulley Half
2 712-3004A Hex Top L-Nut 5/16-18 Thd.
25 786-0080 Idler Bracket
3
786-0107 Cable Mtg. Bracket 26 710-0723 Hex Bolt 3/8-16 X 1.25" Lg.
4 710-1017
Torx Mach. AB-Tap Scr. 1/4 x .6“ Lg
27
746-0916 Clutch Cable
5
738-0899 Belt Cover Bolt
28 734-0255 Air Valve
6
786-0117 Shift Cover Bracket 29
714-0104 Hairpin Clip
7
786-0100
Belt Cover
30 711-1017
Clevis Pin
8
736-0142
FI-Wash. .281"I.D. x.5"O.D. 31 634-0112 Rim Only (14")
9
712-0392
Hex Cap Nut 1/4-28 Thd. 634-0108
Rim Only (16")
10
756-0634 Flat Pulley 8" O.D.
32 634-0110
Wheel Ass’y. Comp.—R.H. (14")
11 736-0105
Bell-Wash. .38" I.D. x .88" O.D.
634-0111
Wheel Ass’y. Comp.—L.H. (14")
12 712-0379
Hex Flange Nut.
634-0106 Wheel Ass’y. Comp.—R.H. (16")
13
754-0438
“V”-Belt
634-0107 Wheel Ass’y. Comp.—L.H. (16")
14 686-0031
Belt Keeper Brkt.
734-1796
Tire Only (14")
15 736-0119
L-Wash. 5/16" I.D.
734-0808 Tire Only (16")
16
710-0237
Hex Bolt 5/16-24 x .62" Lg.
34 619-0009 Frame Counterweight
17 738-0876 Shid. Nut
35
710-1007 Hex TT-Tap Scr. 3/8-16 Thd.
18
712-0266
Hex Jam L-Nut 3/8-16 Thd.
36 710-0376
Hex Bolt 5/16-18 x1"Lg. (Gr. 5)
19 756-0405
Fl-ldler w/Flanges
37 712-3004A Hex Flange L-Nut 5/16-18 Thd.
20
710-0152
Hex Bolt 3/8-24 X 1" Lg. 38 —
Engine
21 736-0217
L-Wash. 3/8" I.D.
41 686-0043A Tine Shield Brkt. Ass’y.
22 736-0258
FI-Wash. 3/8" I.D. x 1" O.D.
42 710-3038 Hex Bolt 5/16-18x7/8" Lg.
23
756-0972
Outer Engine Pulley Half
43 736-0256
Wash. FI..635 I.D. x .930 O.D. x .03
16
