MTD 410 - Page 17

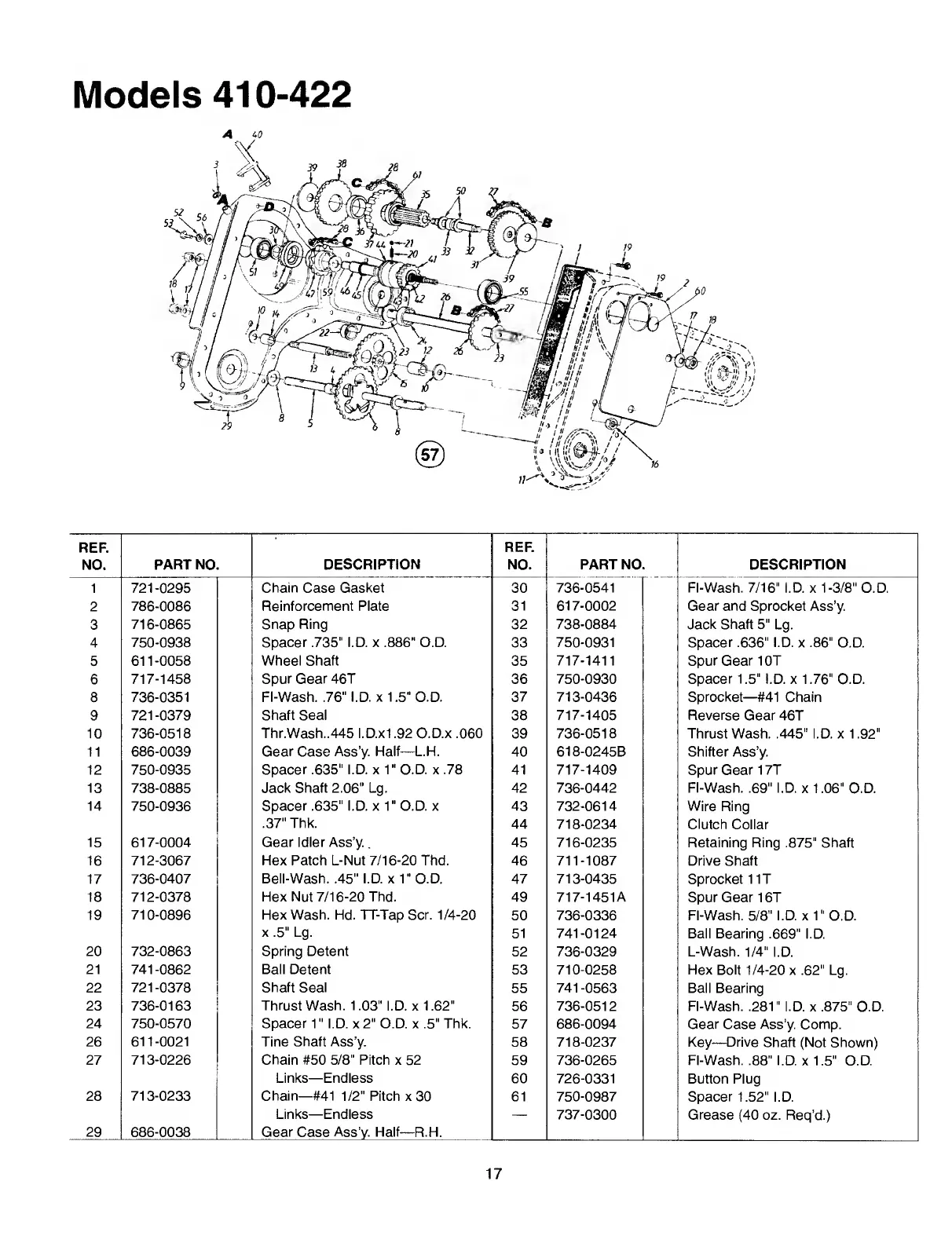

Models 410-422
A iO
REF.
NO.
PART NO. DESCRIPTION
REF.
NO.
PART NO. DESCRIPTION
1
721-0295
Chain Case Gasket
30
736-0541
FI-Wash. 7/16" I.D. x 1-3/8" O.D.
2 786-0086
Reinforcement Plate 31
617-0002
Gear and Sprocket Ass’y.
3
716-0865 Snap Ring
32 738-0884
Jack Shaft 5" Lg.
4 750-0938
Spacer .735" I.D. x .886" O.D.
33 750-0931 Spacer .636" I.D. x .86" O.D.
5
611-0058 Wheel Shaft 35
717-1411 Spur Gear 10T
6
717-1458
Spur Gear46T
36 750-0930 Spacer 1.5" I.D. x 1.76" O.D.
8 736-0351
FI-Wash. .76" I.D. x 1.5“ O.D.
37
713-0436 Sprocket—#41 Chain
9 721-0379
Shaft Seal
38 717-1405 Reverse Gear 46T
10 736-0518
Thr.Wash..445 I.D.xl .92 O.D.x .060
39 736-0518 Thrust Wash. .445" I.D. x 1.92"
11 686-0039
Gear Case Ass’y. Half—L.H.
40 618-0245B Shifter Ass’y.
12 750-0935
Spacer .635" I.D. x 1" O.D. x .78
41 717-1409 Spur Gear 17T
13 738-0885
Jack Shaft 2.06" Lg. 42 736-0442
FI-Wash. .69" I.D. x 1.06" O.D.
14
750-0936
Spacer .635" I.D. x 1" O.D. x
43
732-0614
Wire Ring
.37" Thk.
44 718-0234
Clutch Collar
15
617-0004 Gear Idler Ass’y.,
45 716-0235 Retaining Ring .875" Shaft
16
712-3067 Hex Patch L-Nut 7/16-20 Thd.
46
711-1087
Drive Shaft
17
736-0407 Bell-Wash. .45" I.D. x 1" O.D. 47
713-0435 Sprocket 11T
18 712-0378 Hex Nut 7/16-20 Thd. 49 717-1451A
Spur Gear 16T
19 710-0896 Hex Wash. Hd. TT-Tap Scr. 1/4-20
50 736-0336
FI-Wash. 5/8" I.D. x 1" O.D.
x .5" Lg.
51
741-0124
Ball Bearing .669" I.D.
20 732-0863 Spring Detent
52 736-0329 L-Wash. 1/4" I.D.
21 741-0862 Ball Detent
53
710-0258 Hex Bolt 1/4-20 X .62" Lg.
22 721-0378 Shaft Seal
55 741-0563 Ball Bearing
23 736-0163 Thrust Wash. 1.03" I.D. x 1.62"
56 736-0512
FI-Wash. .281" I.D. X .875" O.D.
24 750-0570 Spacer 1" I.D. x 2" O.D. x .5" Thk.
57 686-0094
Gear Case Ass’y. Comp.
26 611-0021 Tine Shaft Ass’y.
58 718-0237
Key—Drive Shaft (Not Shown)
27 713-0226 Chain #50 5/8" Pitch x 52
59 736-0265
FI-Wash. .88" I.D. x 1.5" O.D.
Links—Endless
60
726-0331 Button Plug
28 713-0233 Chain—#41 1/2" Pitch x 30
61 750-0987
Spacer 1.52" I.D.
Links—Endless —
737-0300 Grease (40 oz. Req’d.)
29 686-0038 Gear Case Ass’v. Half—R.H.
17
