61, 65 and 70 Series Vertical Shaft Engines
76
NOTE: If starter rope tension needs to be adjusted,
there is room between the recoil housing and the
pulley to wind-on more tension. See Figure 6.8.
10. Install the starter and tighten the starter nuts to a
torque of 80-106 in-lbs (9-12 Nm).

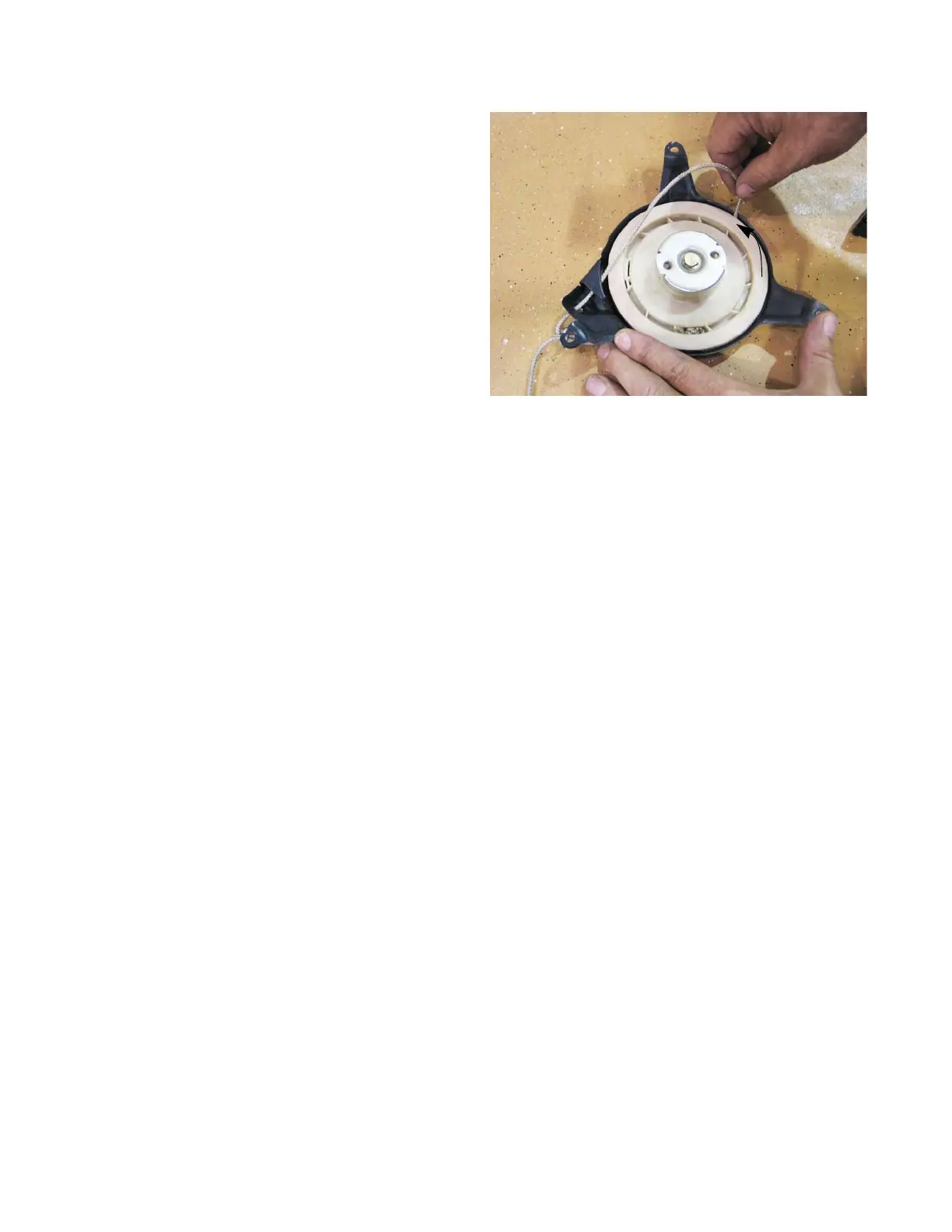

Figure 6.8
Rope-return tension may
be increased by winding
the rope and pulley
counter clockwise.
