7. Connect the positive side of the power source to the
terminal that has the piggy back wire on it. See Fig-
ure 6.18.
8. Reconnect the DMM with it still on the Ohms ()
scale. See Figure 6.19.
NOTE: The DMM should read less than 0.2 Ohms ().
This relay has a burnt contact.
9. If the test results do not match what was listed above,
replace the relay.

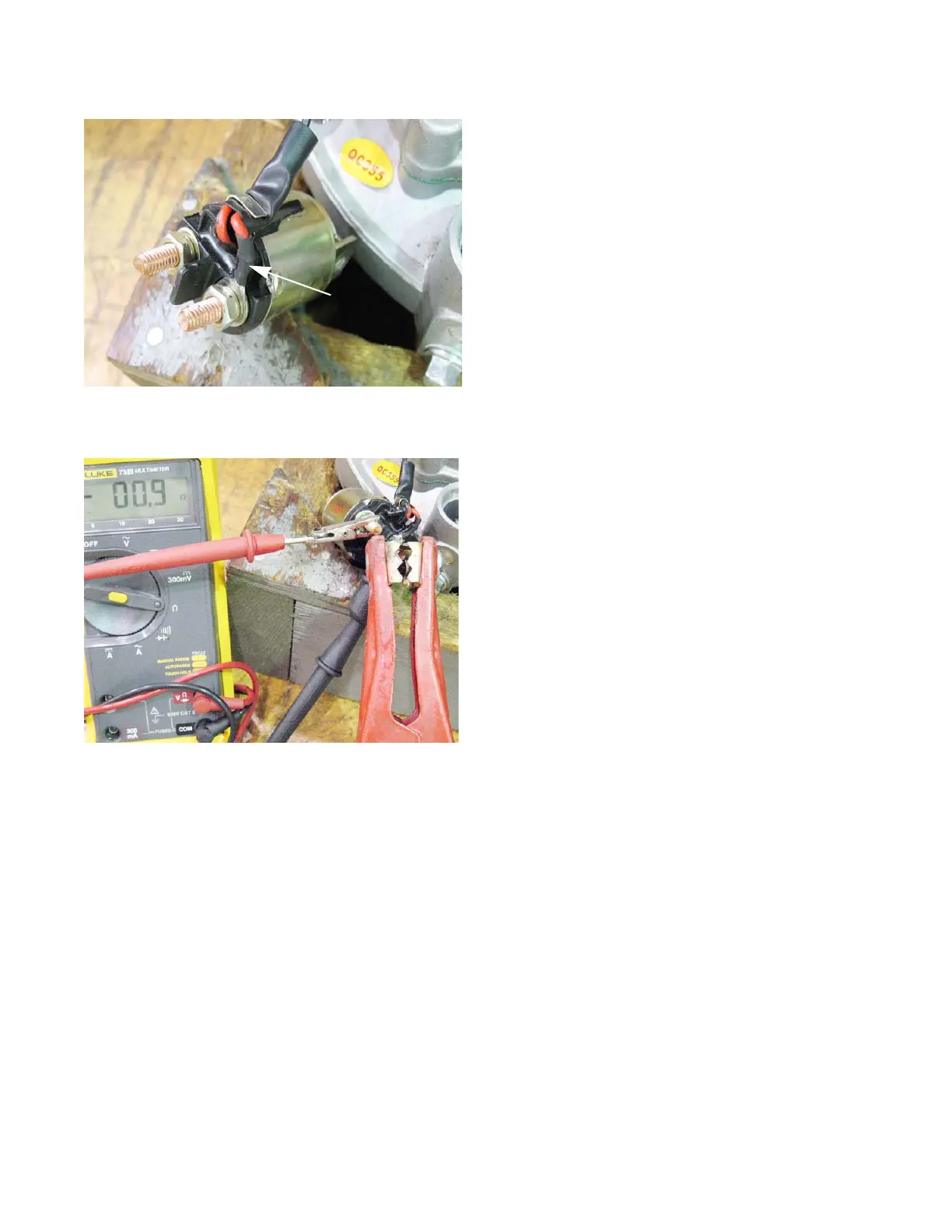

Figure 6.18
Piggy back wire
