7. Set the door on the rear sub-frame.
8. Hook the end of the left torsion spring onto the rear
sub-frame.
9. Press the door down on the right side.
10. Hook the right torsion spring onto the sub frame.
11. Insert the pivot rod.
NOTE: When fully inserted, the end of the pivot rod
will be recessed into the hole.
12. Test run the mower in a safe area before returning it
to service.

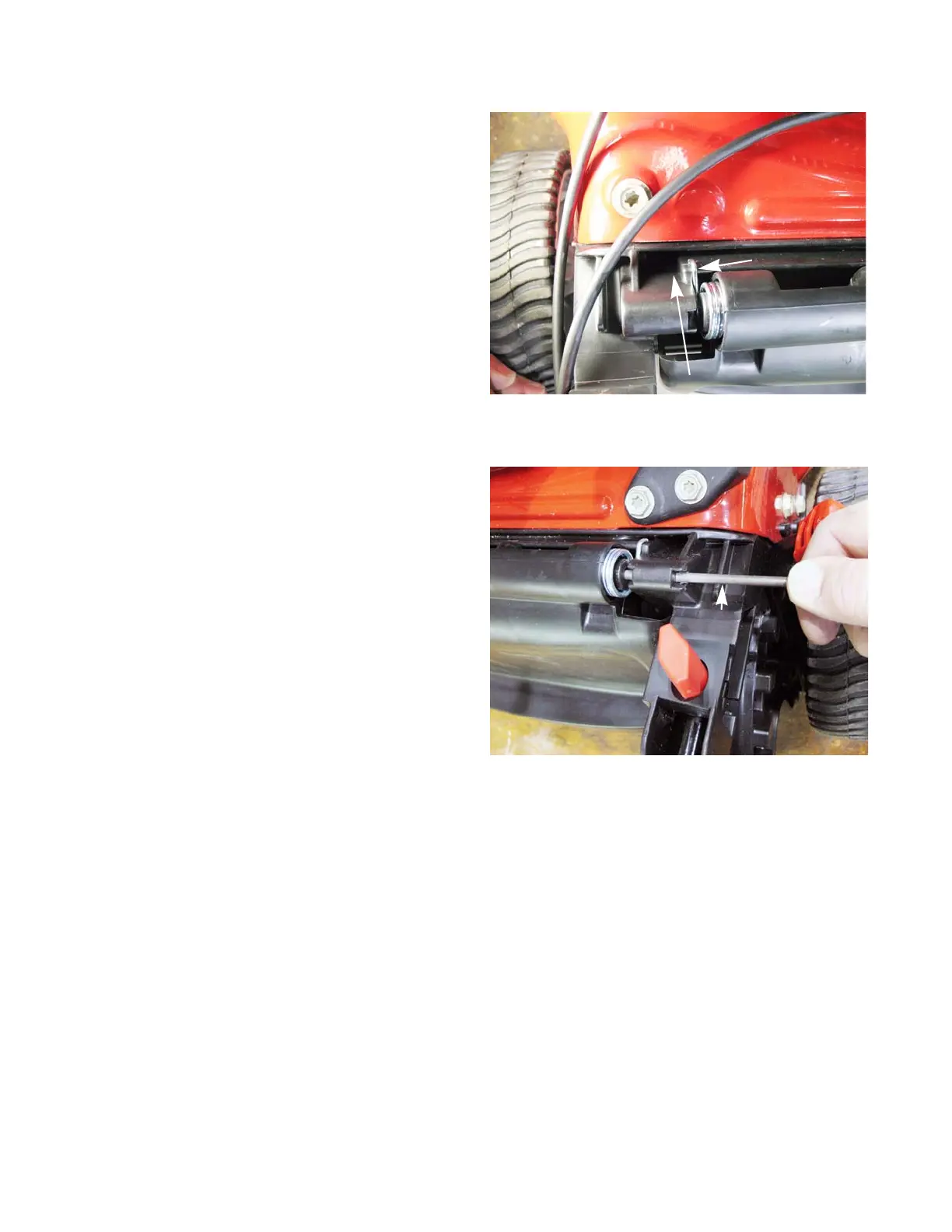

Figure 4.8
Rear sub-frame
Spring
Figure 4.9
Pivot rod
