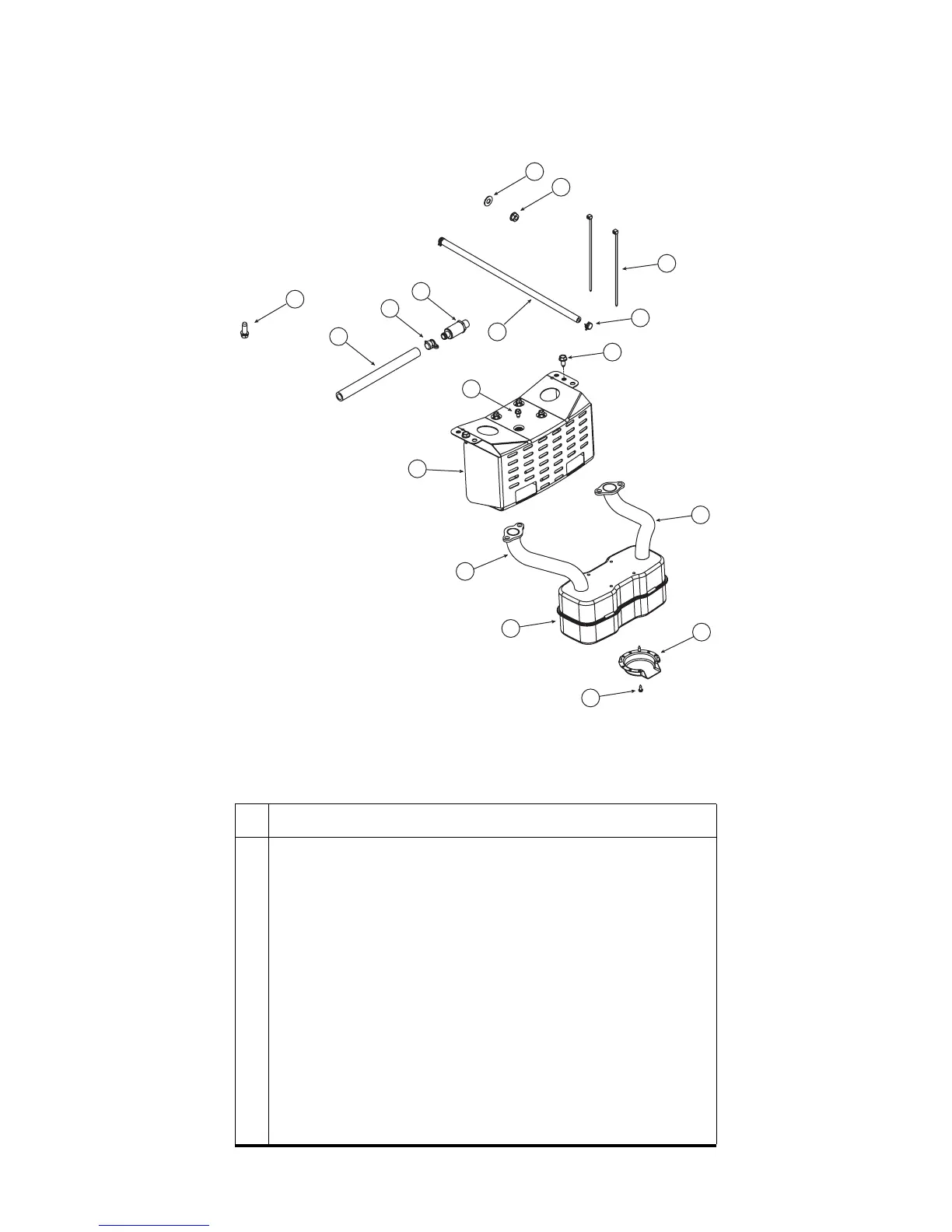

MTD P805K - Page 35

35
Model
P805K
7
8
4
12
11
5
9
3
16
15
6
13
14
1
2
10
17
REF.
NO.
PART
NUMBER DESCRIPTION
1 710-0227 Screw, #8-18, 0.500
2 710-0599 Screw, Hex, 1/4-20, 0.500
3 710-0654A Screw, Sems, 3/8-16, .75
4 710-0726 Screw, Hex, 5/16-12 x .75
5 712-3005 Hex Flange Nut, 3/8-16
6 783-0615D Bracket, Muffler
7 725-0157 Cable, Tie, 3/16 x .05 x 7.4
8 726-0205 Clamp, Hose
9 736-0300 Lock Washer,.406 x.875 x.059
10 751-3142 Cap, Oil Drain
11 751-0564A Deflector, Muffler
12 751-0644B Pipe, Exhaust, LH
13 751-0645A Pipe, Exhaust, RH
14 751-0805A Muffler, Dual Inlet
15 751-10349 Fuel Hose, Low Permeation
16 751-3140 Drain, Oil
17 751-3141 Extension Hose, Oil Drain
