MTD PRO MP426CS - Page 75

E27
PARTS LIST
Item
Part No. Description
1 753-04234 Throttle Housing Assembly (includes 2-4)
2 753-04119 Throttle Trigger
3 791-182690 Throttle Trigger Spring
4 791-182405 Switch Assembly
5 791-180687 J-Handle Assembly
6 791-683295 Handle Bracket Assembly (includes 7-12)
7 791-181811 Screw
8 791-181812 Upper Handle Clamp
9 791-181813 Middle Handle Clamp
10 791-181814 Lower Handle Clamp
11 791-181815 Nut
12 791-145569 Anti-Rotation Screw
13 753-05323 Drive Shaft Housing Assembly
14 791-153597 Lower Clamp Assembly
15 791-145569 Anti-Rotation Screw
16 791-180531 Shield Mounting Hardware
17 791-181659 Shield Assembly (includes 18)
18 753-05212 Blade Assembly
19 791-181857 Bushing Housing Assembly
20 791-181457 Outer Spool Assembly (includes 21)
21 791-181458 Retaining Ring
22 791-181561 Thrust Washer
23 791-181459 Small Spring
24 753-04257 Slider
25 791-181532 E-Clip
26 791-181531 Spring
27 791-181462 Plunger
28 791-181463 C-Clip
29 791-181464 Inner Reel
30 791-181465B Large Spring
31 791-181467 Foam Seal
32 791-181468B Bump Head Knob Assembly
(includes 30 & 31)
Optional
Accessories
* 791-180120 Replacement Line, 0.095 Diameter
* 753-04218 Reel and Line Assembly
* Items Not Shown
1
4
1
2
3
9
10
11
12
6
8
7
5
13
14
16
17
18
15
19
20
21
24
26
28
22
23
25
27
29
30
31
32

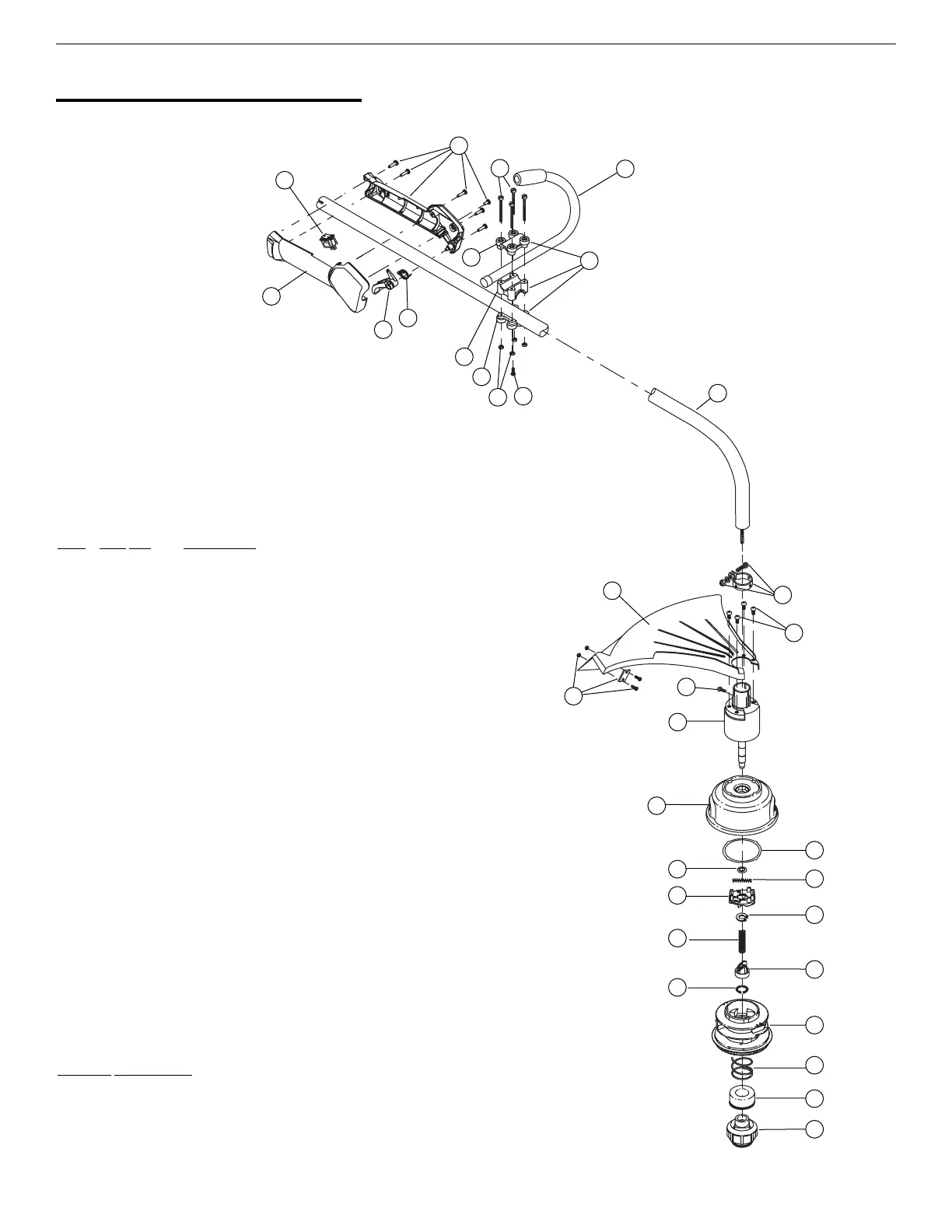

BOOM AND TRIMMER PARTS - MODEL YM26CO
4-CYCLE GAS TRIMMER
PPN 41AD26OG401
