It is suggested that this manual be read in its entirety before attempting to assemble or operate. Keep this manual in a
safe place for future reference and for ordering replacement parts.
NOTE: Locknuts cannot be threaded onto a bolt by hand, a wrench is required for assembly. This type of nut is used
where vibrations occur.
Remove the lawn mower and all parts from the carton. Make certain all parts and literature have been removed from
the carton before the carton is discarded.

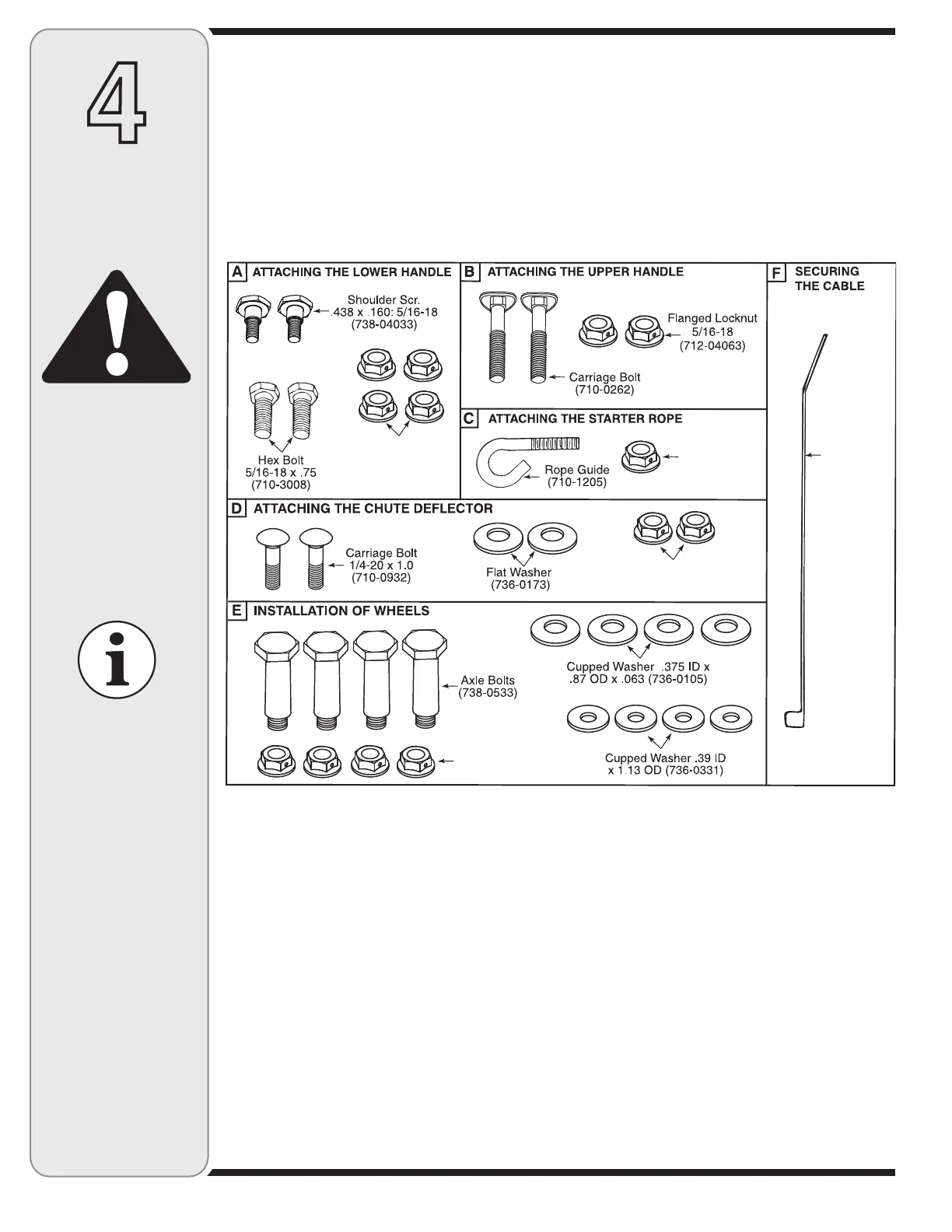

Refer to “Hardware Pack”, Figure 4-1, for hardware identification.
NOTE: Reference to right, left, front and rear of the lawn mower is in relation to the operating position.
Flange L-nut
5/16-18
(712-04063)
Flange L-nut
1/4-20
(712-04064)
Flange L-nut
3/8-16
(712-04065)
Flange L-nut 1/4-20
(712-04064)
Cable Tie
(726-0157)
Figure 4-1 - Hardware Pack
Tools Required
• AdjustableWrench
• 7/16”Wrench
• 1/2”Wrench
• 9/16”Wrench
• 5/8”Wrench
• 3/4”Wrench
4
IMPORTANT
This unit is shipped
WITHOUT GASOLINE
or OIL. After assem-
bly, service engine
with gasoline and
oil as instructed in
the separate engine
manual packed with
your unit.
