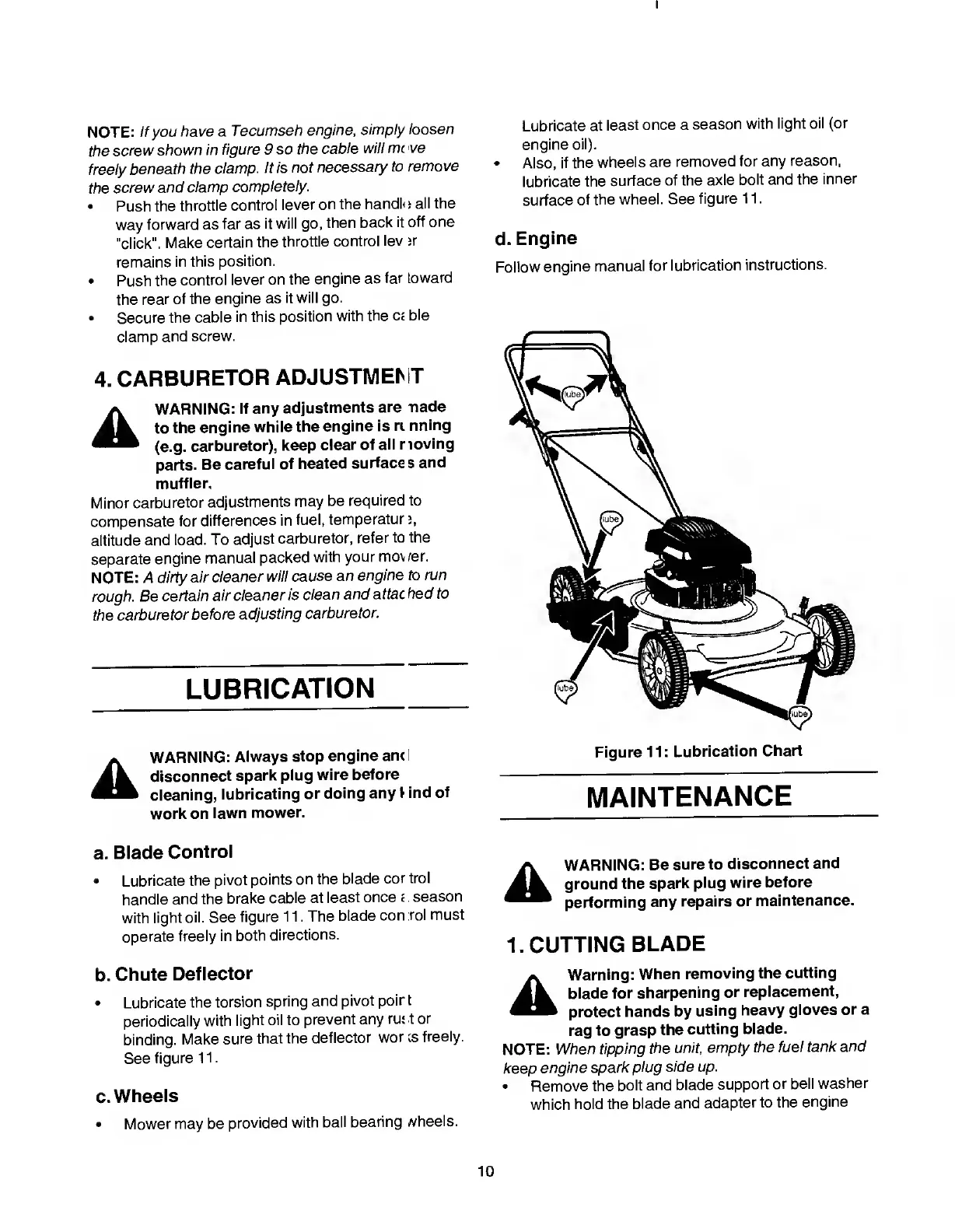

I
NOTE: If you have a Tecumseh engine, simply loosen
the screw shown in figure 9 so the cable will me ve
freely beneath the clamp. It is not necessary to remove
the screw and clamp completely.
• Push the throttle control lever on the handle > all the
way forward as far as it will go, then back it off one
"click". Make certain the throttle control lev ?r
remains in this position.
• Push the control lever on the engine as far toward
the rear of the engine as it will go.
• Secure the cable in this position with the cz ble
clamp and screw.
4. CARBURETOR ADJUSTMEMT
WARNING: If any adjustments are made
to the engine while the engine is ri nning
(e.g. carburetor), keep clear of all r loving
parts. Be careful of heated surface s and
muffler.
Minor carburetor adjustments may be required to
compensate for differences in fuel, temperatur 5,
altitude and load. To adjust carburetor, refer to the
separate engine manual packed with your mo\ le r.
NOTE: A dirty air cleaner will cause an engine to run
rough. Be certain air cleaner is clean and attac hed to
the carburetor before adjusting carburetor.
LUBRICATION
WARNING: Always stop engine am I
disconnect spark plug wire before
cleaning, lubricating or doing any t ind of
work on lawn mower.
Lubricate at least once a season with light oil (or
engine oil).
• Also, if the wheels are removed for any reason,
lubricate the surface of the axle bolt and the inner
surface of the wheel. See figure 11.
d. Engine
Follow engine manual for lubrication instructions.
MAINTENANCE
a. Blade Control
• Lubricate the pivot points on the blade cor trol
handle and the brake cable at least once z season
with light oil. See figure 11. The blade con :rol must
operate freely in both directions.
b. Chute Deflector
• Lubricate the torsion spring and pivot poir t
periodically with light oil to prevent any ru* t or
binding. Make sure that the deflector wor ;s freely.
See figure 11.
c. Wheels
• Mower may be provided with ball bearing wheels.
WARNING: Be sure to disconnect and
ground the spark plug wire before
performing any repairs or maintenance.
1. CUTTING BLADE
Warning: When removing the cutting
blade for sharpening or replacement,
protect hands by using heavy gloves or a
rag to grasp the cutting blade.
NOTE: When tipping the unit, empty the fuel tank and
keep engine sparkplug side up.
• Remove the bolt and blade support or bell washer
which hold the blade and adapter to the engine
10
