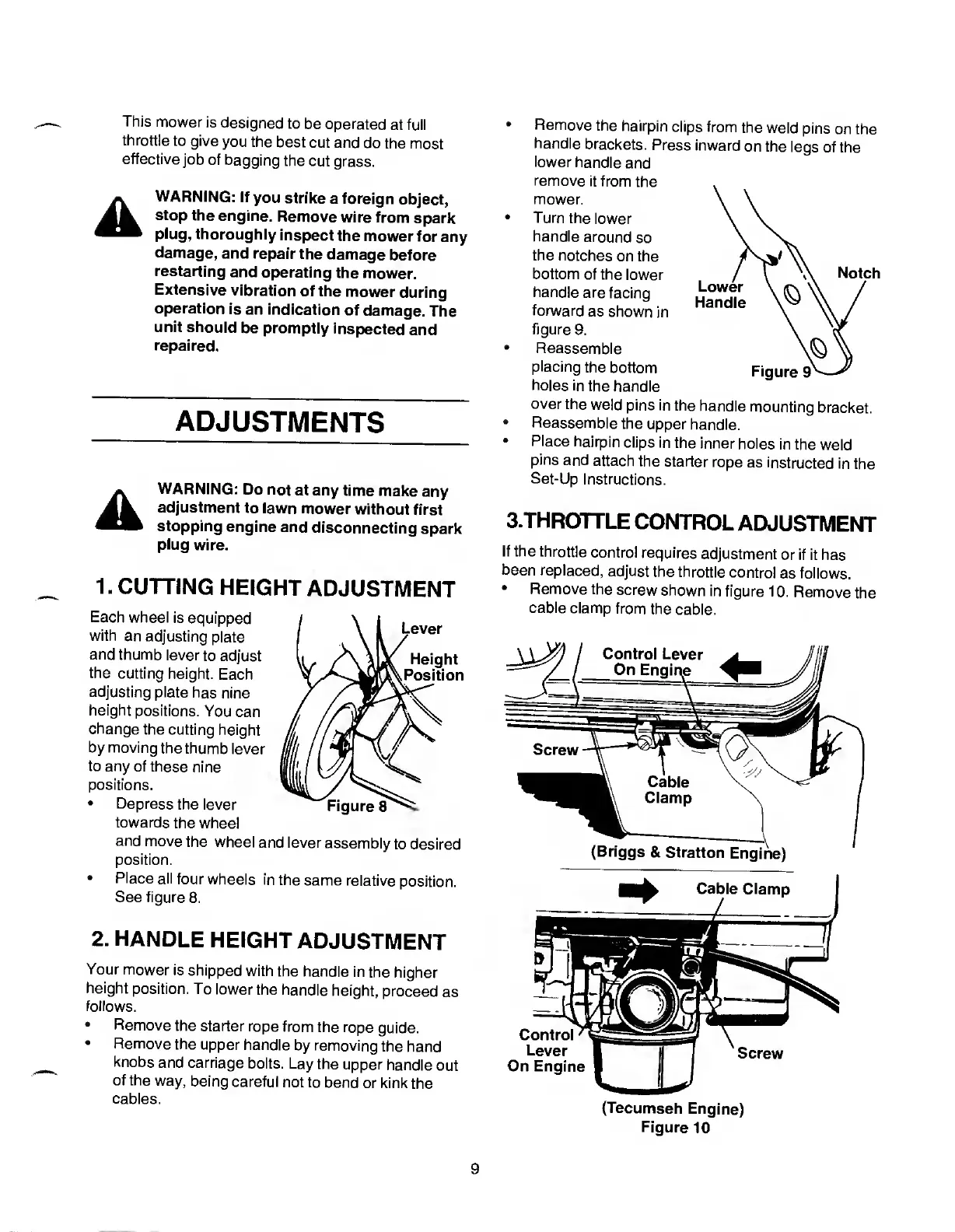

Page #9 background imageLoading...
Page #9 background image
This
mower
is
designed
to
be
operated
at
full
throttle
to
give
you
the
best
cut
and
do
the
most
effective
job
of
bagging
the
cut
grass.
WARNING:
If
you
strike
a
foreign
object,
stop
the
engine.
Remove
wire
from
spark
plug,
thoroughly
inspect
the
mower
for
any
damage,
and
repair
the
damage
before
restarting
and
operating
the
mower.
Extensive
vibration
of
the
mower
during
operation
is
an
indication
of
damage.
The
unit
should
be
promptly
inspected
and
repaired.
ADJUSTMENTS
WARNING:
Do
not
at
any
time
make
any
adjustment
to
lawn
mower
without
first
stopping
engine
and
disconnecting
spark
plug
wire.
1.
CUTTING
HEIGHT
ADJUSTMENT
Each
wheel
is
equipped
with
an
adjusting
plate
and
thumb
lever
to
adjust
the
cutting
height.
Each
adjusting
plate
has
nine
height
positions.
You
can
change
the
cutting
height
by
moving
the
thumb
lever
to
any
of
these
nine
positions.
Depress
the
lever
towards
the
wheel
and
move
the
wheel
and
lever
assembly
to
desired
position.
Place
all
four
wheels
in
the
same
relative
position.
See
figure
8.
2.
HANDLE
HEIGHT
ADJUSTMENT
Your
mower
is
shipped
with
the
handle
in
the
higher
height
position.
To
lower
the
handle
height,
proceed
as
follows.
Remove
the
starter
rope
from
the
rope
guide.
Remove
the
upper
handle
by
removing
the
hand
knobs
and
carriage
bolts.
Lay
the
upper
handle
out
of
the
way,
being
careful
not
to
bend
or
kink
the
cables.
Remove
the
hairpin
clips
from
the
weld
pins
on
the
handle
brackets.
Press
inward
on
the
legs
of
the
lower
handle
and
remove
it
from
the
mower.
Turn
the
lower
handle
around
so
the
notches
on
the
bottom
of
the
lower
handle
are
facing
forward
as
shown
in
figure
9.
Reassemble
placing
the
bottom
holes
in
the
handle
over
the
weld
pins
in
the
handle
mounting
bracket.
Reassemble
the
upper
handle.
Place
hairpin
clips
in
the
inner
holes
in
the
weld
pins
and
attach
the
starter
rope
as
instructed
in
the
Set-Up
Instructions.
3.THROTTLE
CONTROL
ADJUSTMENT
If
the
throttle
control
requires
adjustment
or
if
it
has
been
replaced,
adjust
the
throttle
control
as
follows.
Remove
the
screw
shown
in
figure
10.
Remove
the
cable
clamp
from
the
cable.
(Tecumseh
Engine)
Figure
10
9
