MTD Yard Machines 070 Series User Manual

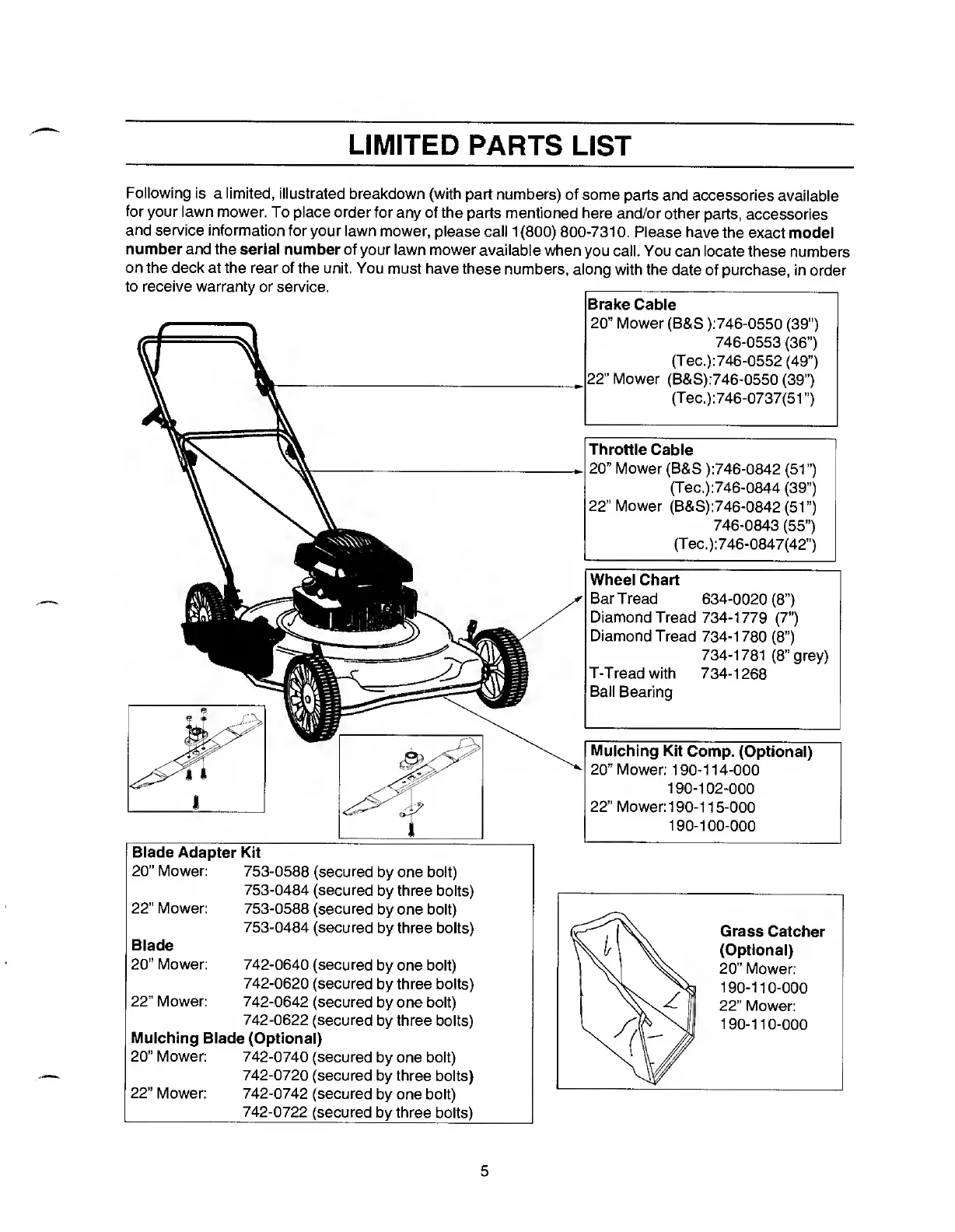

LIMITED PARTS LIST
Following is a limited, illustrated breakdown (with part numbers) of some parts and accessories available
for your lawn mower. To place order for any of the parts mentioned here and/or other parts, accessories
and service information for your lawn mower, please call 1 (800) 800-7310. Please have the exact model
number and the serial number of your lawn mower available when you call. You can locate these numbers
on the deck at the rear of the unit. You must have these numbers, along with the date of purchase, in order
to receive warranty or service. _
Brake Cable
Blade Adapter Kit
20” Mower: 753-0588 (secured by one bolt)
753-0484 (secured by three bolts)
22” Mower: 753-0588 (secured by one bolt)
753-0484 (secured by three bolts)
Blade
20” Mower: 742-0640 (secured by one bolt)
742-0620 (secured by three bolts)
22” Mower: 742-0642 (secured by one bolt)
742-0622 (secured by three bolts)
Mulching Blade (Optional)
20” Mower: 742-0740 (secured by one bolt)
742-0720 (secured by three bolts)
22” Mower: 742-0742 (secured by one bolt)
_742-0722 (secured by three bolts)
20” Mower (B&S ):746-0550 (39”)
746-0553 (36”)
(Tec.):746-0552 (49”)
22” Mower (B&S):746-0550 (39”)
(Tec.):746-0737(51”j
Throttle Cable
20” Mower (B&S ):746-0842 (51”)
(Tec.):746-0844 (39”)
22” Mower (B&S):746-0842 (51”)
746-0843 (55”)
(Tec.):746-0847(42”)
Wheel Chart
Bar T read
634-0020 (8”)
Diamond Tread 734-1779 (7”)
Diamond Tread
734-1780
(8”)
734-1781
(8” grey)
T-Tread with
734-1268
Ball Bearing
Mulching Kit Comp. (Optional)
20” Mower: 190-114-000
190-102-000
22” Mower:190-115-000
190-100-000
Grass Catcher
(Optional)
20” Mower:
190-110-000
22” Mower:
190-110-000
