E23
PARTS LIST

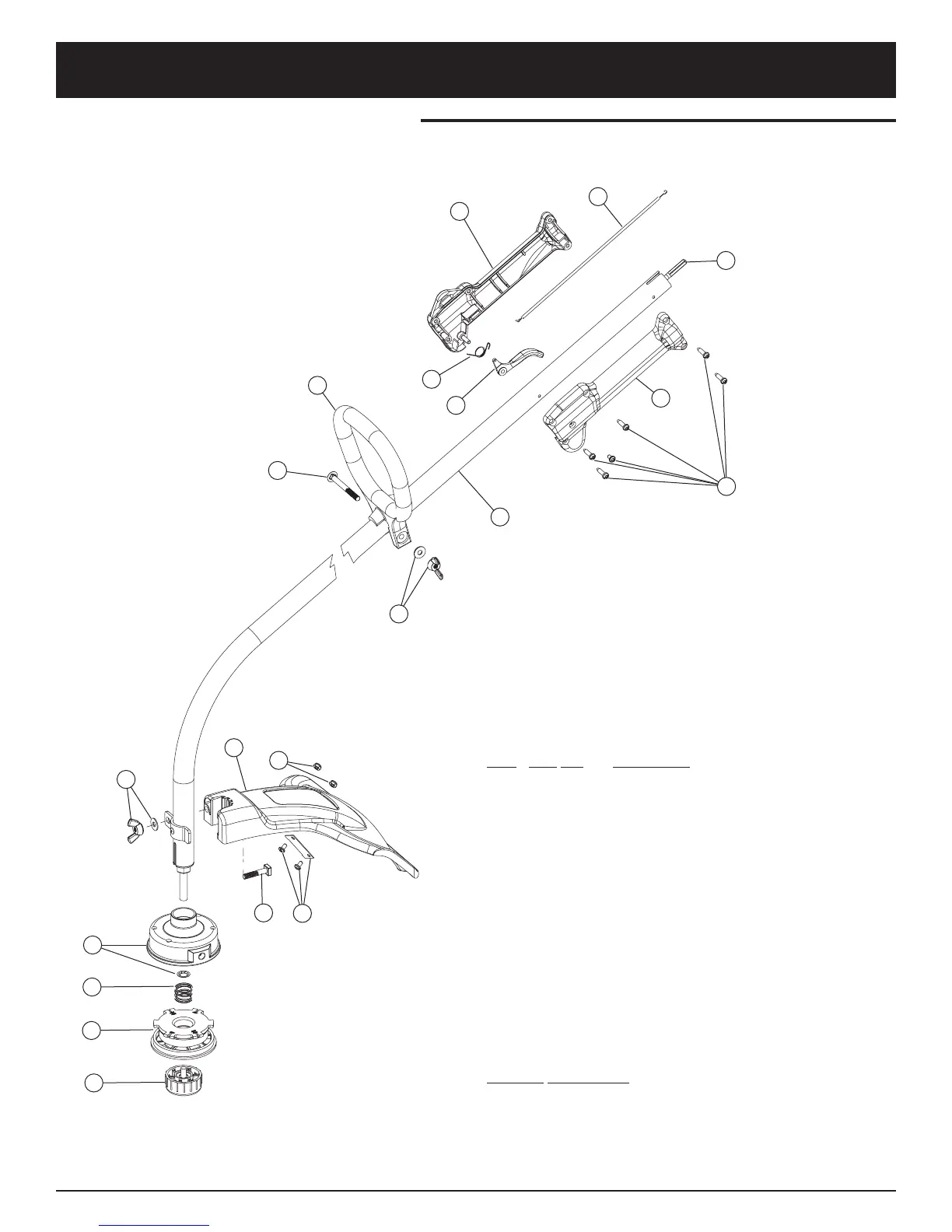

BOOM & TRIMMER PARTS - Y28
2-CYCLE GAS TRIMMER
Item Part No. Description
1 753-04927 Throttle Housing and Trigger Assembly
(includes 2-4)
2 791-610314 Throttle Trigger Spring
3 791-181807 Throttle Trigger
4 753-04917 Throttle Housing Screws
5 791-182068 Throttle Cable
6 753-04280 Flexible Drive Shaft
7 753-04921 Drive Shaft Housing
8 791-153064 D-Handle Assembly (includes 9)
9 791-153317 D-Handle Hardware
10 753-04282 Guard Mounting Hardware
11 753-04283 Guard
12 791-180553 Blade Assembly
13 753-04284 Outer Reel w/Retainer
14 791-610317B Spring
15 753-1155 Inner Reel
16 791-153066B Bump Knob
* 753-04281 Drive Shaft Housing Assembly
(includes 6, 7 & 13)
Optional Accessories
* 791-153577B Inner Reel and Line
* 791-682075B Shoulder Strap Assembly
* Items Not Shown
1
5
6
1
4
3
2
9
9
8
7
10
12
12
11
10
14
15
16
13
