E22
PARTS LIST

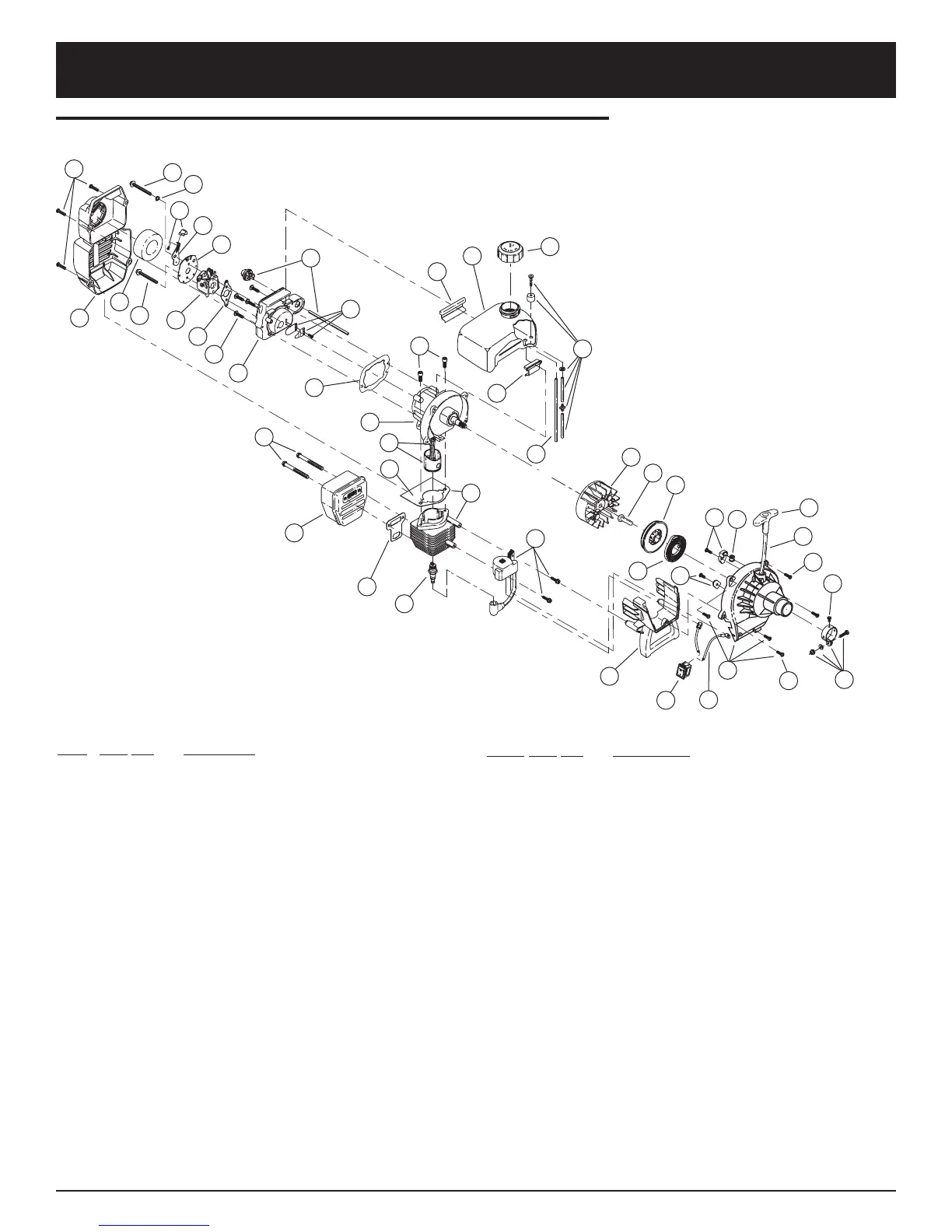

ENGINE PARTS - Y28
2-CYCLE GAS TRIMMER
34
1
2
3
8
10
12
3
4
7
11
13
14
15
42
43
21
44
19
16
17
18
20
23
24
25
28
28
27
30
31
32
33
22
29
36
41
37
39
38
40
9
6
26
34
35
35
45
Item
Part No. Desciption
1 753-04511 Air Cleaner Cover Assembly (includes 2 & 34)
2 791-180350B Air Cleaner Filter
3 791-180351 Carburetor Mounting Screw Assembly
4 791-180226 Wavey Washer
5 791-182202 Choke Knob Assembly
6 753-04418 Choke Lever Assembly (includes 5)
7 753-04419 Choke Plate Assembly (includes 6)
8 753-04408 Carburetor Assembly (includes 9, 19 & 20)
9 791-610675 Carburetor Gasket
10 791-181860 Carb Mount Screw
11 791-683974B Primer and Hose Assembly
12 753-1196 Carb Mount Assembly (includes 10 & 13)
13 791-684451 Reed Assembly
14 753-1208 Carburetor Mount Gasket
15 753-04321 Crank Case Service Assembly (includes 10)
16 791-612134 Rear Mounting Pad
17 753-04306 Fuel Tank Assembly (includes 19-20)
18 791-182612 Fuel Cap Assembly
19 791-181086 Fuel Return Line
20 791-682039 Fuel Line Assembly
21 791-145308 Front Mounting Pad
22 753-04702 Shroud Extension and Stand
23 791-182736 Flywheel Assembly
24 791-610303 Nut
25 753-1199 Recoil Pulley
26 791-613102 Recoil Spring
27 791-611061 Rope Guide
Items Part No. Description
28 791-180930 Pulley Retainer Assembly
29 791-182441 Momentary Switch
30 791-181079 Pull Handle
31 791-613103 Rope
32 791-181862 Housing Screw
33 791-181345 Cover Screw
34 753-04342 Starter Housing Assembly
(includes 25-28, 30-33)
35 791-153597 Upper Clamp Assembly
36 753-04336 Governed Module Assembly
37 791-610311B Spark Plug
38 753-04618 Muffler Assembly (includes 39 & 40)
39 753-04619 Exhaust Gasket
40 7953-04620 Muffler Mounting Bolts
41 753-04814 Cylinder Assembly (includes 43)
42 753-04367 Piston and Rod Assembly
43 753-04182 Cylinder Gasket
44 791-182723 Cylinder Bolt
45 791-181936 Lead Wires
* 753-04689 Spark Arrestor
* 753-04134 Engine Gasket Kit
* 753-1209 Piston Ring
* 753-04826 Short Block Assembly
(includes 10, 15, 37, 41-45)
* Items Not Shown
