REPAIRINGTHEBOUNDARYWIRE

Iftheboundarywiregetscutorbreaksforany
reason(indicatedbysolidredlightoncharging
station),youneedtolocateandrepairit.Youwill

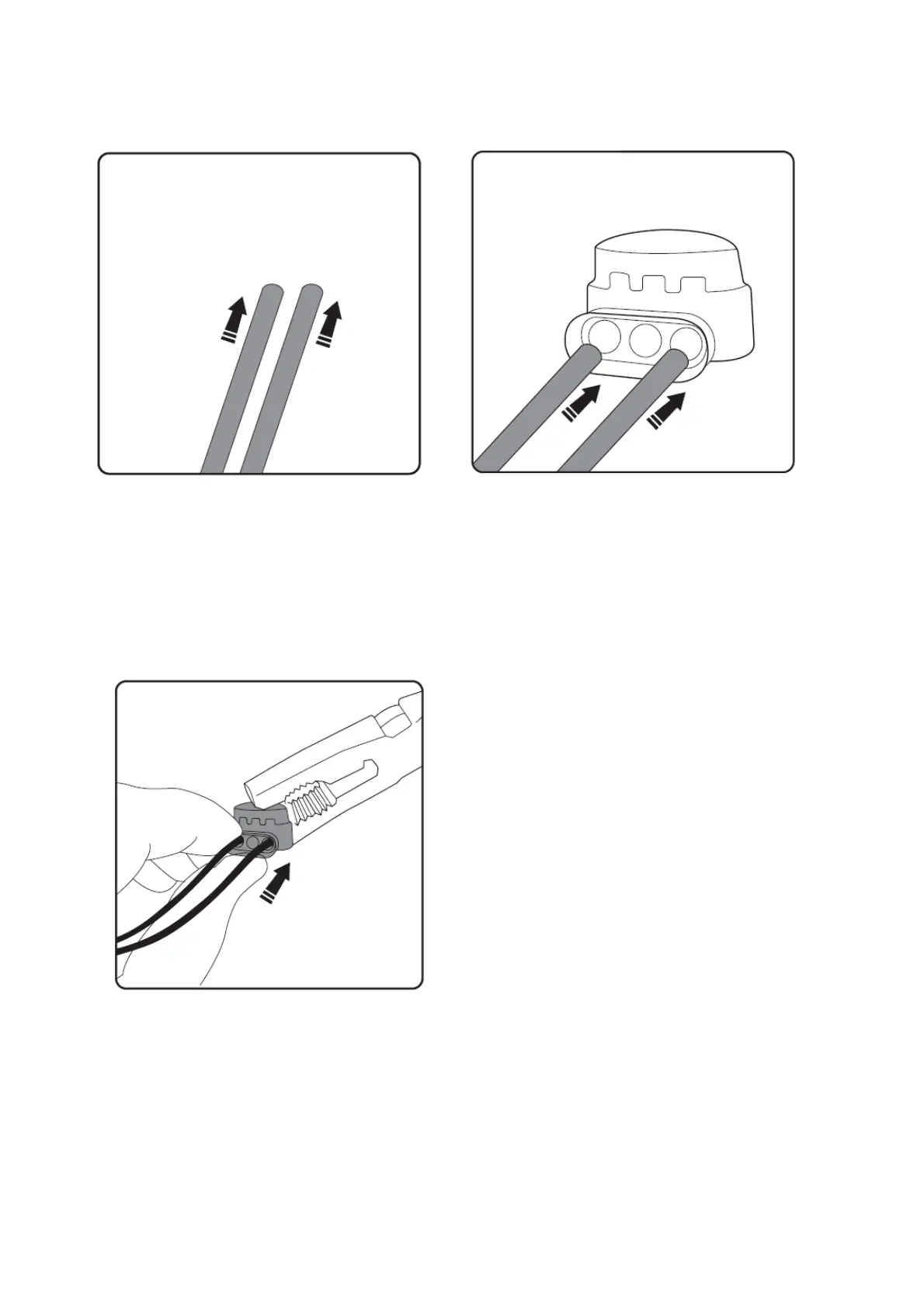

needtouseoneofthesplicingclipsprovided.First
takeuptheslackinthewire
sothereissome
overlap.
Thecliphastwochannelsinit.Pushoneendinto
onechannelandtheotherendintotheother.The
wireneedstogorightin.Donotremovetheplastic
insulationfromtheendofthewire.



Takingapairofpliers,
crimpthemetaltabontothe
insertedwires.Thiswillformaconnection
betweenthewires.


Whentheboundarywireisrepairedthechargingstationwilldisplayasolidbluelight.Ifthelightisstillred
therearemorebreaksintheloop,whichwillneedlocatingand
repairing.

