INM5000-6 Jul 2010
5 DX ENCLOSURES
Enclosures are usually selected on the basis of the number of units they
will accommodate and table 5.1 shows the capacity of each of the
enclosures. Figures 5.2 to 5.4 show each type of enclosure containing
MTL5000 modules.
Table 5.1: DX range of enclosures - module capacities
* Use these figures when two IMB57 mounting brackets for
tagging/earth-rail accessories are included
Note: The user should be aware that some workshop preparation may
be required for the cable gland plates before the enclosure is ready for
on-site installation.
131 (inside)
150
184
147 (inside)
Top of DIN rail
270
540
430
184
147 (inside)
Top of DIN rail
170
102 102
360
270
DX430
DX070
125
70
175
DX170
8080
Enclosure MTL5000 isolators
16.2 mm mounting pitch
DX070 4 (2*)
DX170 10 (8*)
DX430 26 (24*)
MTL5000 Series
Isolators

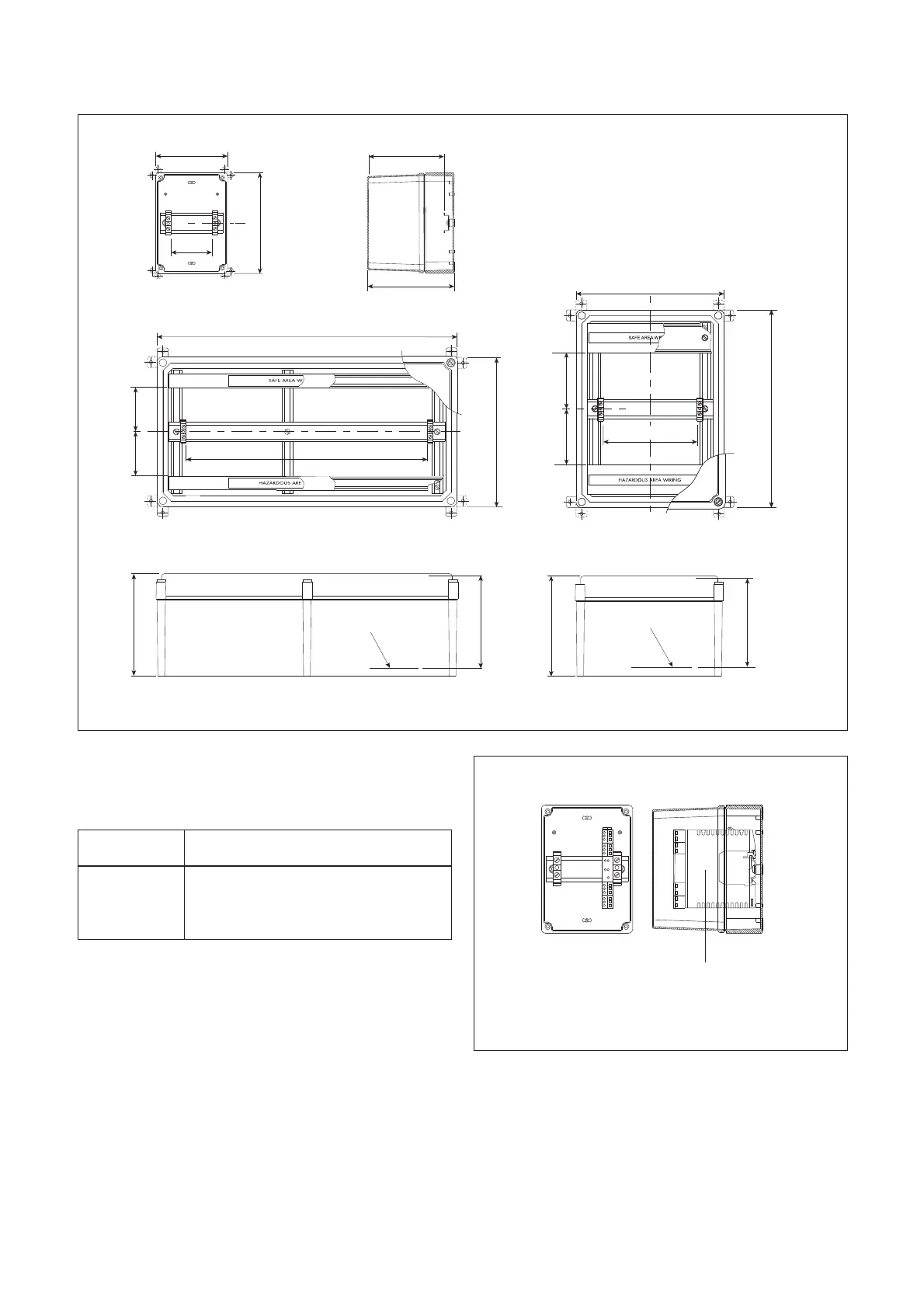

Figure 5.1: MTL’s DX range of enclosures
Figure 5.2: DX070 enclosure showing MTL5000 modules
mounted
