2) Press the key 〔OUTPUT / INPUT〕to
select output function , and the LCD displays
‘OUTPUT ’,‘mA ’;

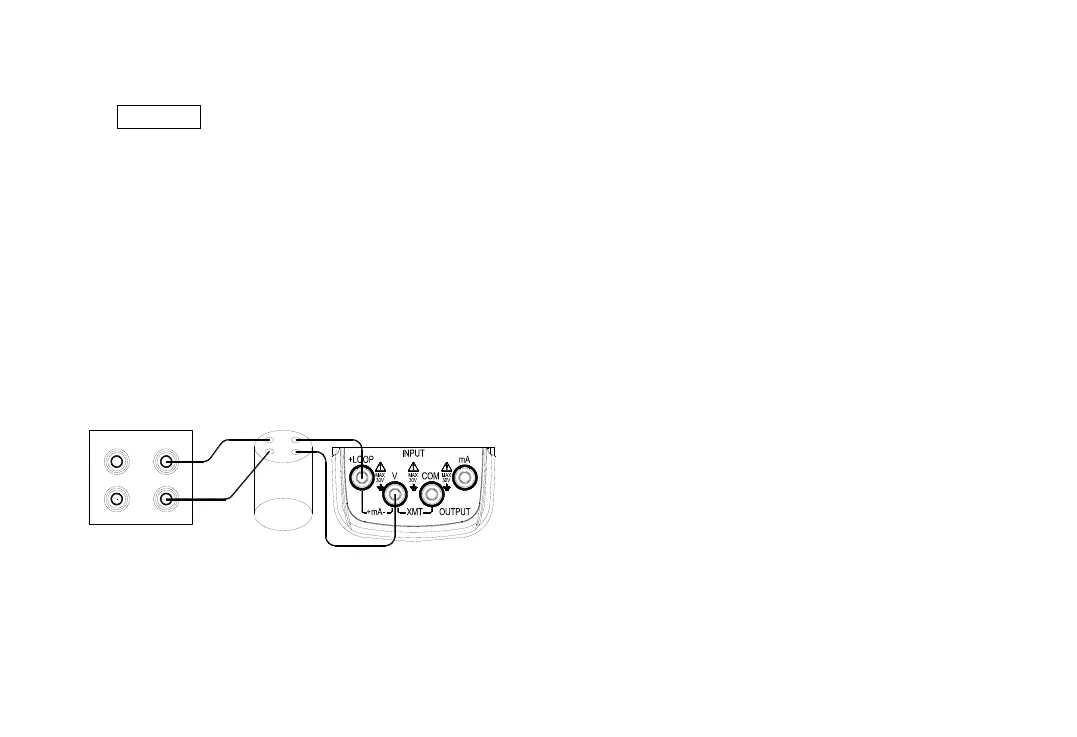

3) Connect to the Instrument as shown in
Figure 10-1;
4) Set the digital meter to an appropriate range;
5) When the output stabilized , press the
key〔〕/〔〕 and the key
〔〕/〔〕to adjust the calibrator to a
value in identity with the reading of the digit
meter;
6) Press the key〔100%/START〕, and the
LCD displays ‘SAVE ’, denoting that the
calibrated point has been stored;
LO
B Z -1 0
HI
K E IT H L E Y 2 0 0 0
Figure 10-1
7) Press the key 〔STEP/AUTO〕and the LCD
displays ‘CAL 0 FS’. With the output
stabilized, repeat the operation of steps 5
and 6;
8) Press the key〔STEP/AUTO〕and the LCD
displays ‘CAL 0 FS’. With the output
stabilized, repeat the operation of steps 5
and 6.
