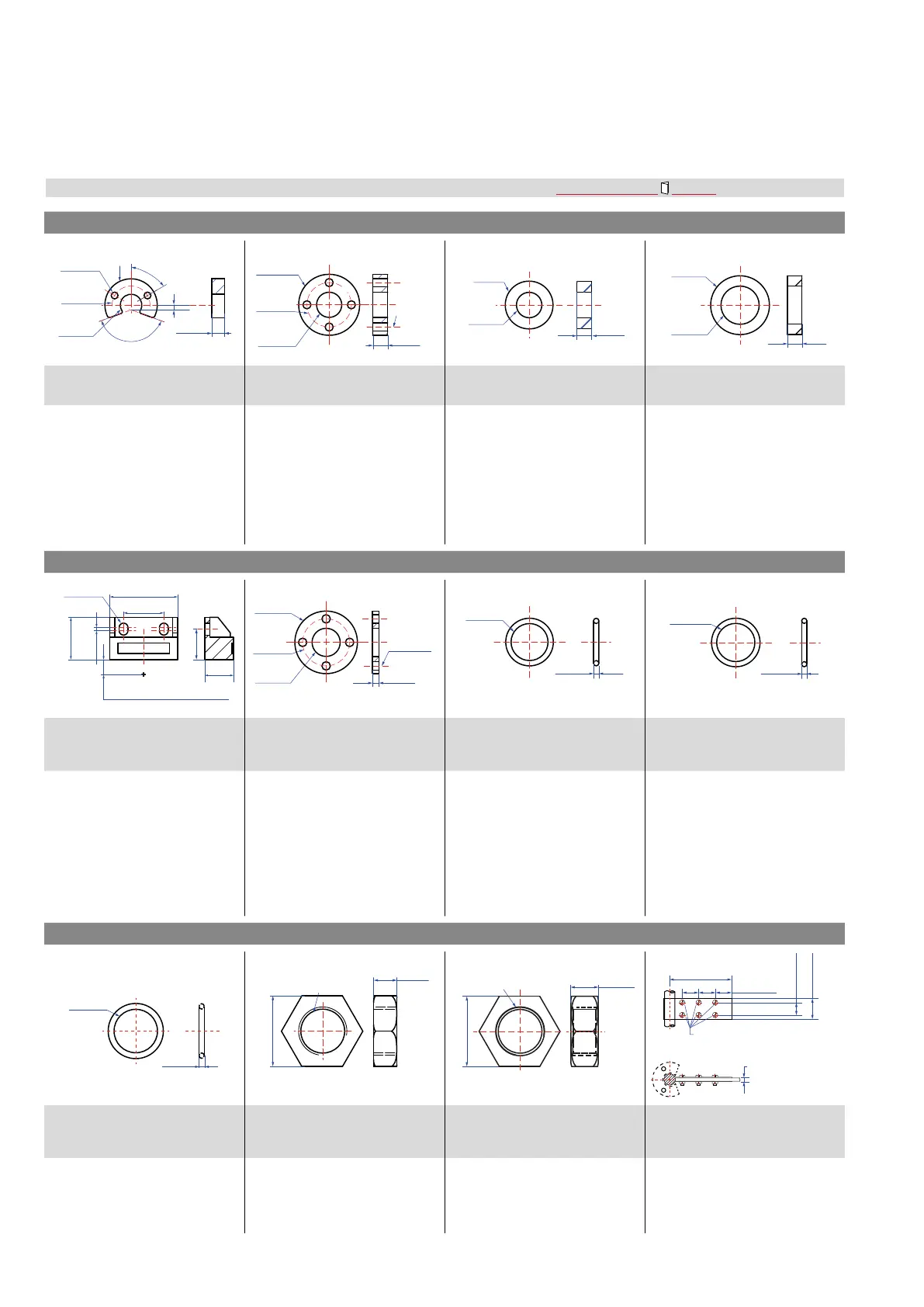

4.8 Frequently ordered accessories for RH5 design – Additional options available in our Accessories Guide
551 444
Position magnets
Ø 32.8
(Ø 1.29)
Ø 23.8
(Ø 0.94)
Ø 13.5
(Ø 0.53)
Ø 4.3
(Ø 0.17)
60°
140°
3
(0.12)
7.9
(0.31)
Ø 32.8
(Ø 1.29)
Ø 23.8
(Ø 0.94)
Ø 13.5
(Ø 0.53)
Ø 4.3
(Ø
0.17)
7.9
(0.31)
Ø 25.4
( Ø 1)
Ø 13.5
( Ø 0.53)
7.9
(0.31)
Ø 19.8
(Ø 0.78)
Ø 30.5
(Ø 1.2)
7.6
(0.3)
U-magnet OD33
Part no. 251 416-2
Ring magnet OD33
Part no. 201 542-2
Ring magnet OD25.4
Part no. 400 533
Ring magnet
Part no. 402 316
Material: PA ferrite GF20
Weight: Approx. 11 g
Surface pressure: Max. 40 N/mm
2
Fastening torque for M4 screws: 1 Nm
Operating temperature:
−40…+105 °C (−40…+221 °F)
Material: PA ferrite GF20
Weight: Approx. 14 g
Surface pressure: Max. 40 N/mm
2
Fastening torque for M4 screws: 1 Nm
Operating temperature:
−40…+105 °C (−40…+221 °F)
Material: PA ferrite
Weight: Approx. 10 g
Surface pressure: Max. 40 N/mm
2
Operating temperature:
−40…+105 °C (−40…+221 °F)
Material: PA ferrite coated
Weight: Approx. 13 g
Surface pressure: Max. 20 N/mm
2
Operating temperature:
−40…+100 °C (−40…+212 °F)
Position magnet Magnet spacer O-rings
19.5 (0.77)
1.5
(0.06)
33 (1.3)
14
(0.55)
20.5
(0.81)
14.9 (0.59)
8 ± 2 (0.31 ± 0.08)
Distance to sensor element
Ø 4.3
(Ø 0.17)
Ø 14.3
(Ø 0.56)
Ø 23.8
(Ø 0.94)
Ø 31.8
(Ø 1.25)
Ø 4.3
(Ø 0.17)
3.2
(0.13)
Ø 15.3
(Ø 0.6)
Ø 2.2
(Ø 0.09)
Ø 16.4
(Ø 0.65)
Ø 2.2
(Ø 0.09)
Block magnet L
Part no. 403 448
Magnet spacer
Part no. 400 633
O-ring for threaded fl ange
M18×1.5-6g
Part no. 401 133
O-ring for threaded fl ange
¾"-16 UNF-3A
Part no. 560 315
Material: Plastic carrier with hard ferrite
magnet
Weight: Approx. 20 g
Fastening torque for M4 screws: 1 Nm
Operating temperature:
−40…+75 °C (−40…+167 °F)
This magnet may infl uence the sensor
performance speci cations for some
applications.
Material: Aluminum
Weight: Approx. 5 g
Surface pressure: Max. 20 N/mm
2
Fastening torque for M4 screws: 1 Nm
Material: Fluoroelastomer
Durometer: 75 ± 5 Shore A
Operating temperature:
−40…+204 °C (−40…+400 °F)
Material: Fluoroelastomer
Durometer: 75 ± 5 Shore A
Operating temperature:
−40…+204 °C (−40…+400 °F)
O-ring Mounting accessories
Ø 19.3
(Ø 0.76)
Ø 2.2
(Ø 0.09)
M18×1.5-6g
A/F 27
8.7
(0.34)
¾"-16 UNF-3A
A/F 28
11
(0.43)
20 (0.79)
60 (2.36)
16 (0.63)
12 (0.47)
3.2 (0.13)
Ø 3.2 (Ø 0.13)
M3 fastening screws (6×)
O-ring for threaded fl ange
M22×1.5-6g
Part no. 561 337
Hex jam nut M18×1.5-6g
Part no. 500 018
Hex jam nut ¾"-16 UNF-3A
Part no. 500 015
Fixing clip
Part no. 561 481
Material: FPM
Durometer: 75 Shore A
Operating temperature:
−20…+200 °C (−6…+392 °F)
Material: Steel, zinc plated Material: Zinc plated Application: Used to secure sensor
rods (Ø 10 mm (Ø 0.39 in.)) when
using an U-magnet or block magnet
Material: Brass, non-magnetic
Controlling design dimensions are in millimeters and measurements in ( ) are in inches
