2 General Information
2.1 Engine side and cylinder designations

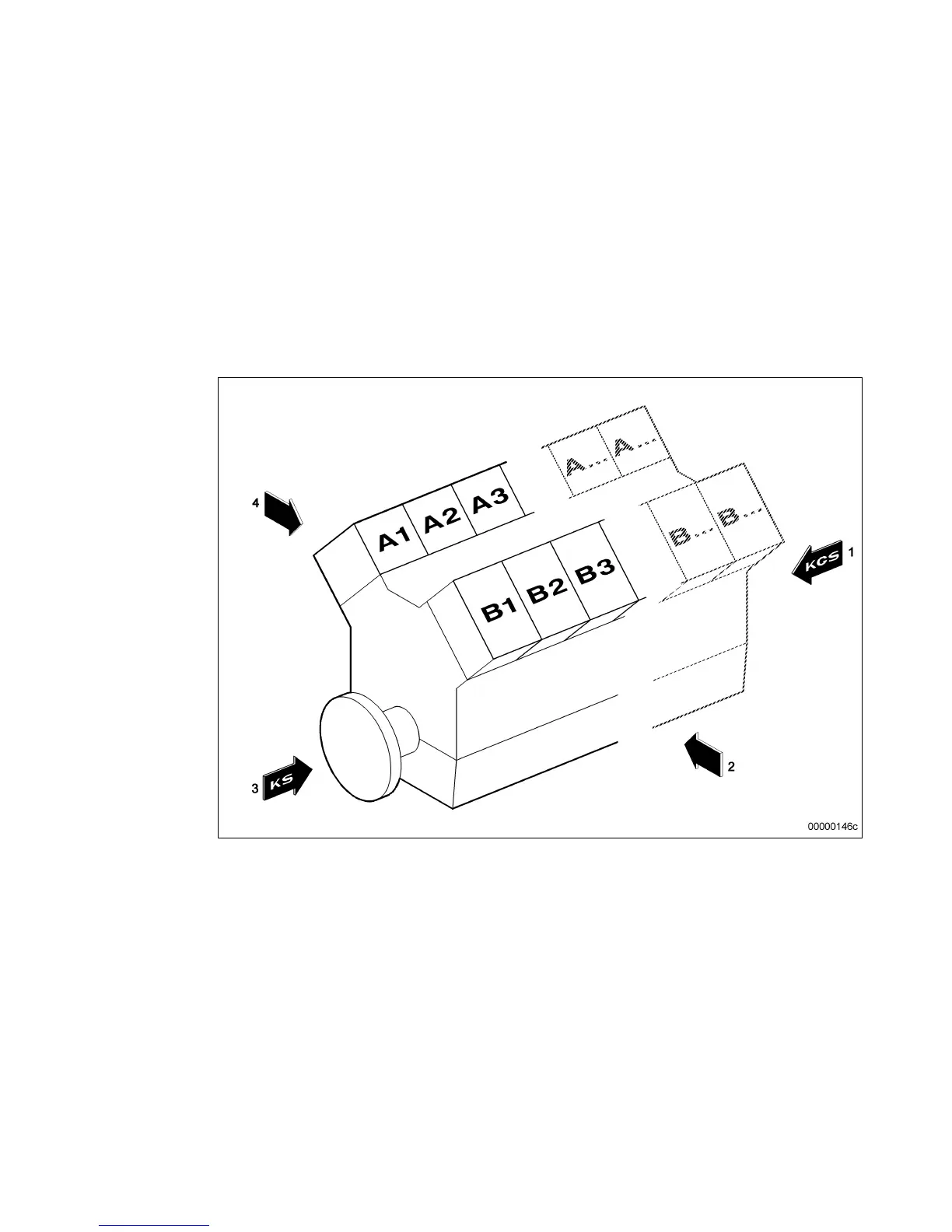

Engine sides are always designated as viewed from the driving end (KS).
The cylinders of the left engine side are designated "A" and those of the right side "B" (as per DIN ISO
1204). The cylinders of each bank are numbered consecutively, starting with No. 1 at the driving end of
the engine.
Other components are numbered in the same way, i.e. starting with No. 1 on driving end.
1 KGS = Free end
2 Right engine side
3 KS = Driving end
4 Left engine side
M015650/03E 2011-10 | General Information | 17
TIM-ID: 0000000863 - 013
