MTU 16V 2000 M72 - Page 22

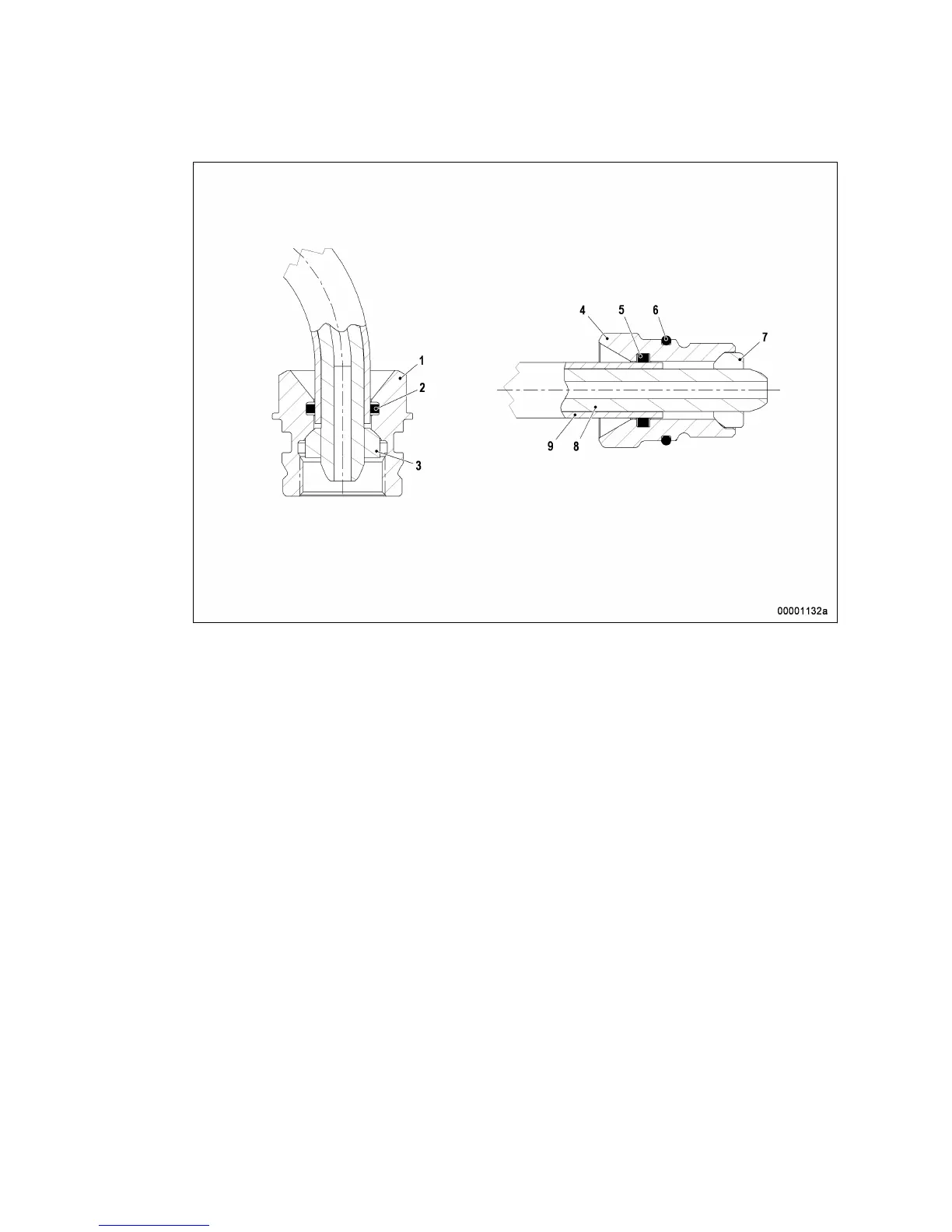

HP line between distributor and HP accumulator
1 Union nut
2 O-ring
3 Thrust ring
4 Thrust screw
5 O-ring
6 O-ring
7 Thrust ring
8 Pressure pipe
9 Jacket pipe
22 | General Information | M015650/03E 2011-10
TIM-ID: 0000002177 - 002
