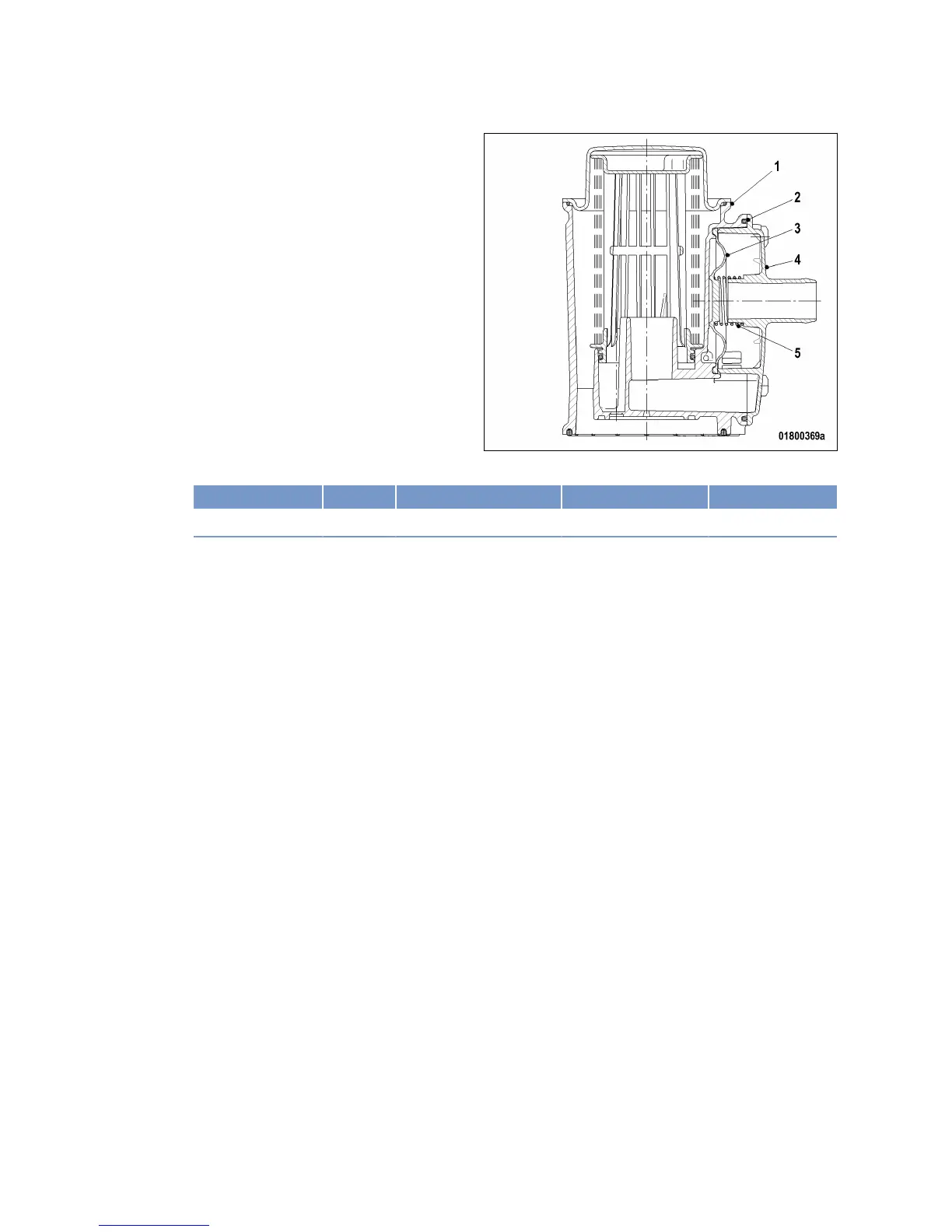

Checking diaphragm
1. Remove cover (4).
2. Take off spring (5), seal (2) and diaphragm
(3).
3. Check diaphragm (3) for damage.
4. Fit new diaphragm if used one is damaged.
5. Mount diaphragm (3) on housing (1).
6. Install new seal (2) and spring (5) together
with cover (4).
7. Tighten screws of cover (4) to specified tightening torque.
Name Size Type Lubricant Value/Standard
Screw Tightening torque 6 Nm + 2 Nm
8. Check diaphragms in further oil separators in the same way.
80 | Task Description | M015650/03E 2011-10
TIM-ID: 0000003491 - 003
