6.9.2 Exhaust gas circulation ‒ Checking flap operation
Preconditions
☑ Engine is stopped and starting disabled.
WARNING
Component is hot.
Risk of burning!
• Wear protective gloves.

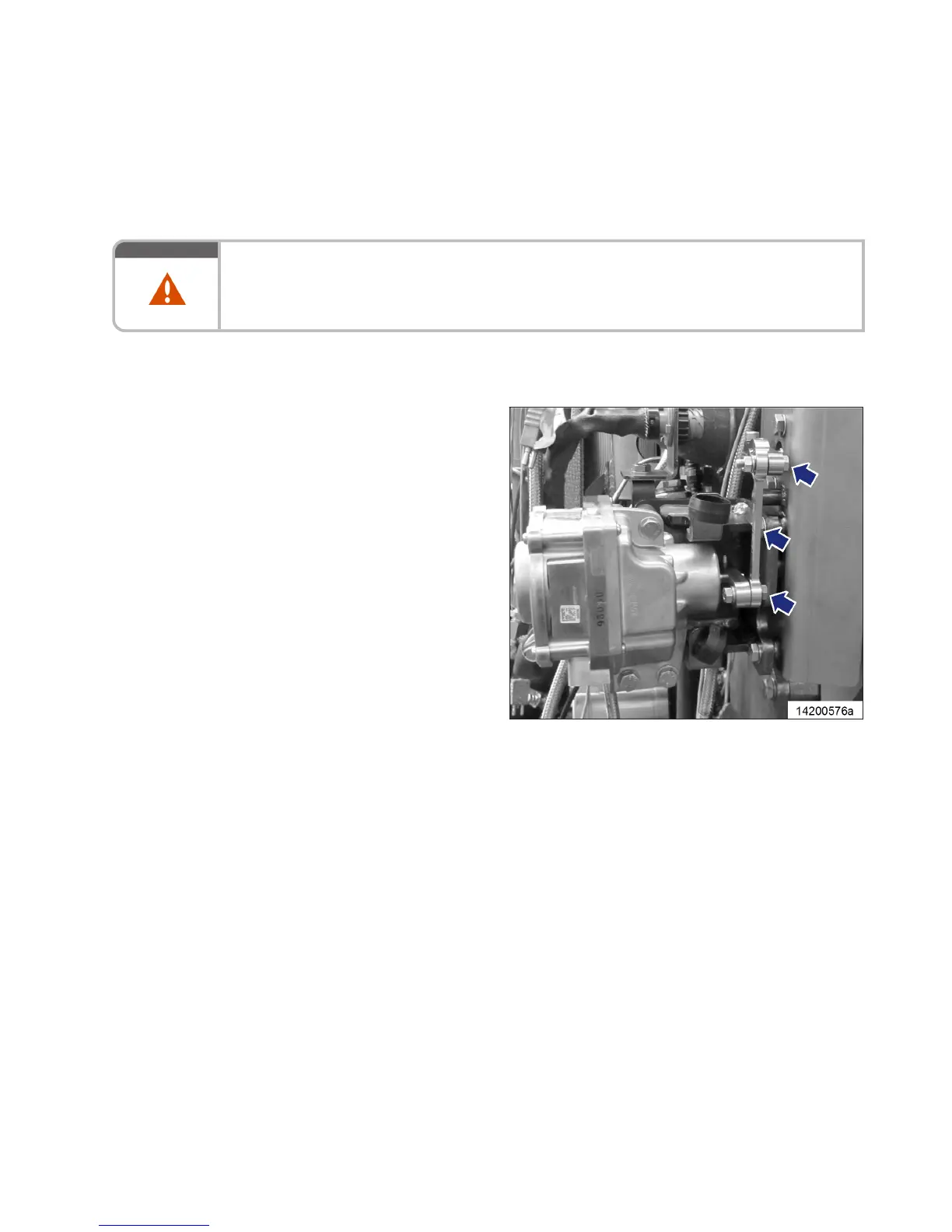

Checking exhaust flap operation
1. For installation position of exhaust flaps, refer to overview (→ Page 100).
2. Check operability and ease of movement of
exhaust flaps and control linkage by moving
the assembly at the points (arrowed) shown
in the illustration.
Result: If exhaust flap is jammed or sluggish: Contact
Service.
MS150094/02E 2015-05 | Task Description | 101
