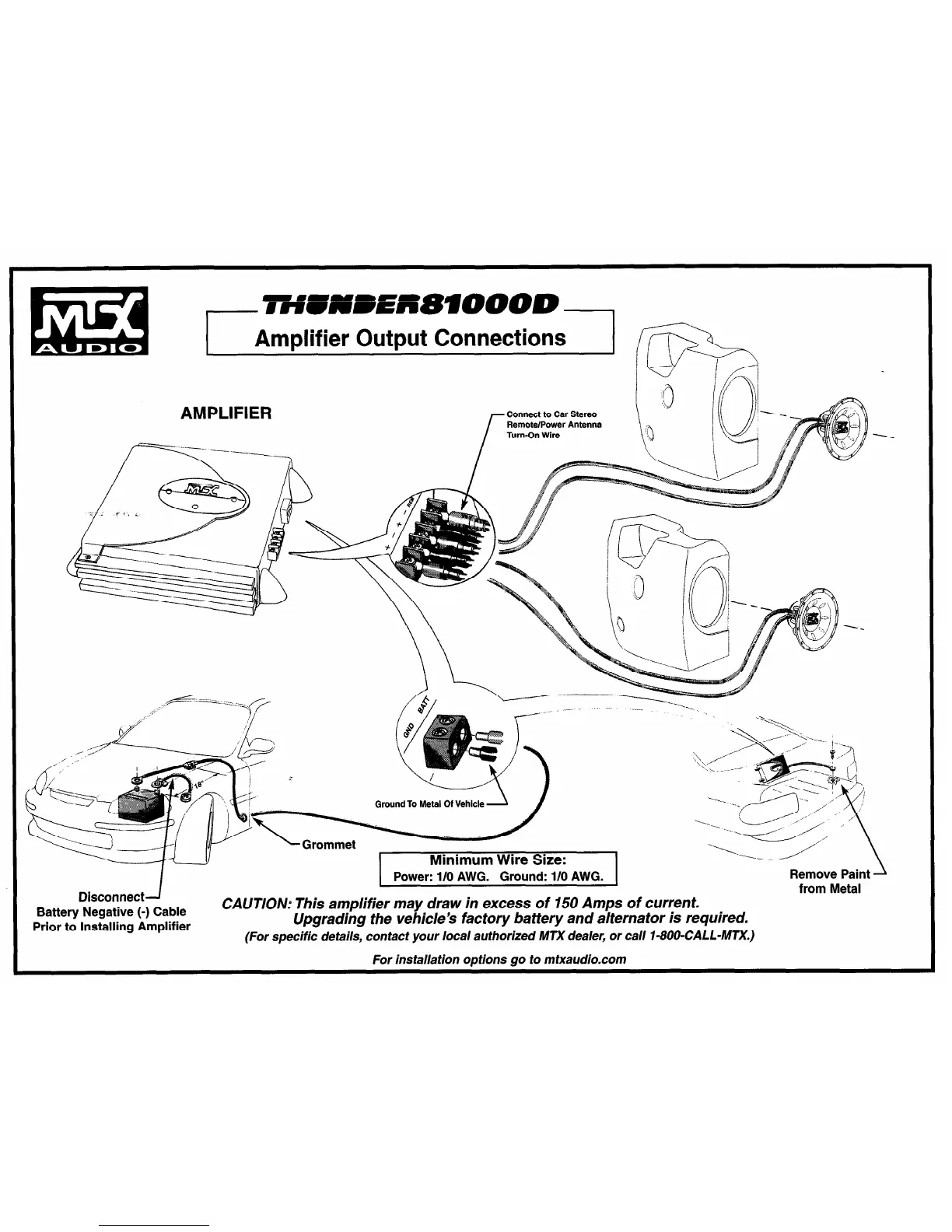

Amplifier Output Connections
1
AMPLIFIER
Connect to Car Stereo
Remote/Power Antenna
Turn-On Wire
Ground To Metal
Disconnect
Battery Negative (-) Cable
Prior to Installing Amplifier
Power: l/O AWG. Ground: l/O AWG.
CAUTION: This amplifier may draw in excess of 150 Amps of current.
Upgrading the vehicle’s factory battery and alternator is required.
(For specific details, contact your local authorized MTX dealer, or call l-800~CALL-MTX.)
Remove Paint J
from Metal
For installation options go to mtxaudio.com
