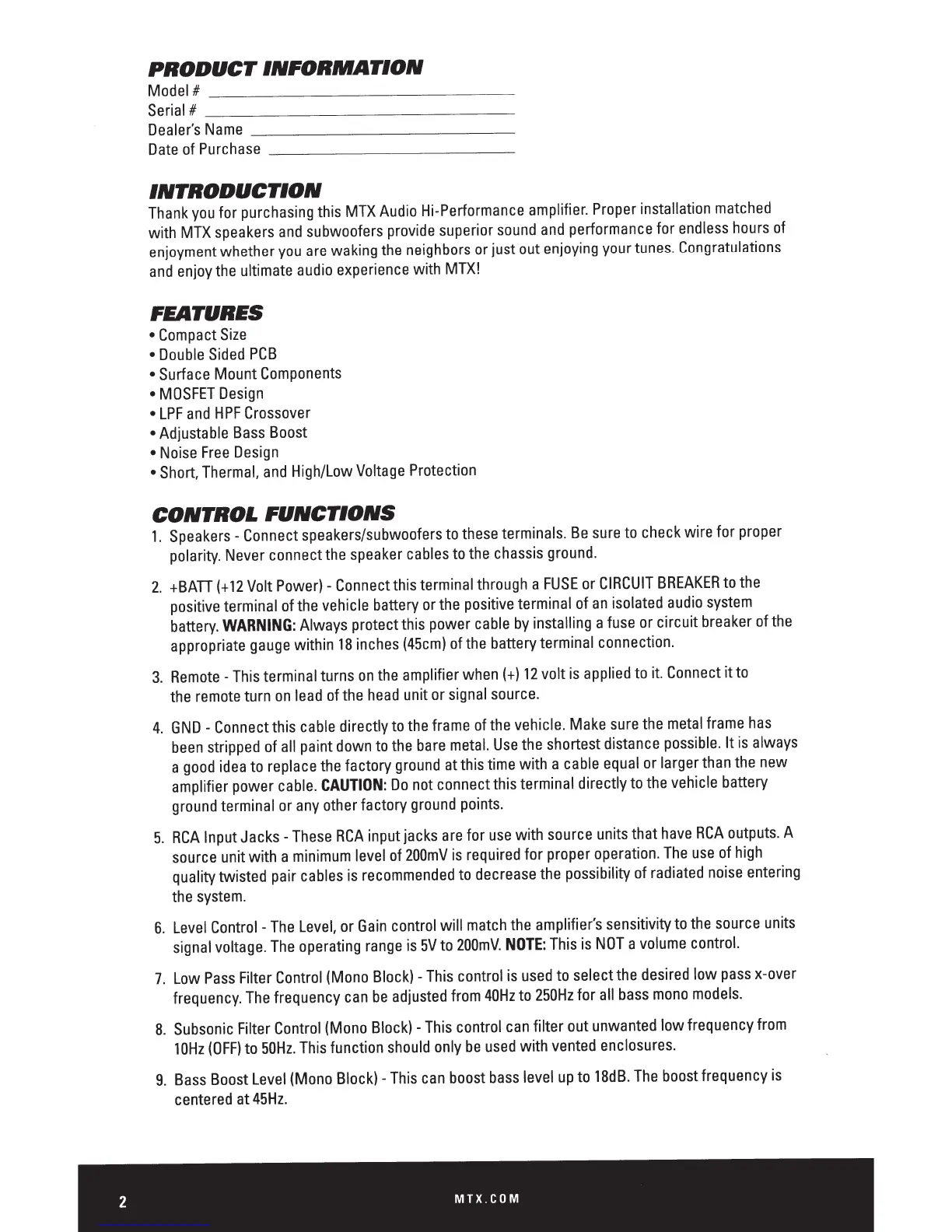

PRODUCTINFORMAnON
Model#
______________
_
Serial#
______________
_
Dealer's
Name
____________
_
Date
of
Purchase
___________
_
INTRODUCTION
Thank
you
for purchasing this
MTX
Audio
Hi-Performance
amplifier.
Proper
installation
matched
with
MTX
speakers
and
subwoofers
provide
superior
sound
and
performance for
endless
hours
of
enjoyment
whether
you
are
waking
the
neighbors
or
just
out
enjoying
your
tunes.
Congratulations
and
enjoy
the
ultimate
audio
experience with
MTX!
FEATURES
•
Compact
Size
•
Double
Sided
PCB
•
Surface
Mount
Components
•
MOSFET
Design
•
LPF
and
HPF
Crossover
•
Adjustable
Bass
Boost
•
Noise
Free
Design
•
Short,
Thermal,
and
High/Low
Voltage
Protection
CONTROL
FUNCTIONS
1.
Speakers
-
Connect
speakers/subwoofers
to
these
terminals.
Be
sure
to
check wire for proper
polarity.
Never
connect
the
speaker
cables
to
the
chassis
ground.
2.
+BAIT(+
12
Volt
Power)-
Connect
this terminal
through a
FUSE
or
CIRCUIT
BREAKER
to
the
positive
terminal
of
the
vehicle
battery
or
the
positive
terminal
of
an
isolated
audio
system
battery.
WARNING:
Always
protect this power
cable
by
installing
a
fuse
or
circuit breaker
of
the
appropriate
gauge
within
18
inches
(45cm)
of
the
battery terminal
connection.
3.
Remote-
This
terminal
turns
on
the
amplifier
when
(+)
12
volt
is
applied
to
it.
Connect
it
to
the
remote
turn
on
lead
of
the
head
unit
or
signal
source.
4.
GND-
Connect
this
cable
directly
to
the
frame
of
the
vehicle.
Make
sure
the
metal
frame
has
been
stripped
of
all
paint
down
to
the
bare
metal.
Use
the
shortest distance
possible.
It
is
always
a
good
idea
to
replace
the
factory
ground
at
this
time
with a
cable
equal
or
larger
than
the
new
amplifier
power
cable.
CAUTION:
Do
not
connect this
terminal directly
to
the
vehicle
battery
ground
terminal
or
any
other factory
ground
points.
5.
RCA
Input
Jacks-
These
RCA
input jacks
are
for
use
with source
units
that
have
RCA
outputs.
A
source
unit with a
minimum
level
of
200mV
is
required
for proper operation.
The
use
of
high
quality
twisted pair
cables
is
recommended
to
decrease
the
possibility
of
radiated
noise
entering
the
system.
6.
Level
Control
-The
Level,
or
Gain
control will
match
the
amplifier's sensitivity
to
the
source
units
signal
voltage.
The
operating
range
is
5V
to
200mV.
NOTE:
This
is
NOT
a
volume
control.
7.
Low
Pass
Filter
Control
(Mono
Block)-
This
control
is
used
to
select
the
desired
low
pass
x-over
frequency.
The
frequency
can
be
adjusted
from
40Hz
to
250Hz
for
all
bass
mono
models.
8.
Subsonic
Filter
Control
(Mono
Block)
-This
control
can
filter
out
unwanted
low
frequency
from
10Hz
(OFF)
to
50Hz.
This
function
should
only
be
used
with
vented
enclosures.
9.
Bass
Boost
Level
(Mono
Block)
-This
can
boost
bass
level
up
to
18dB.
The
boost
frequency
is
centered
at
45Hz.
