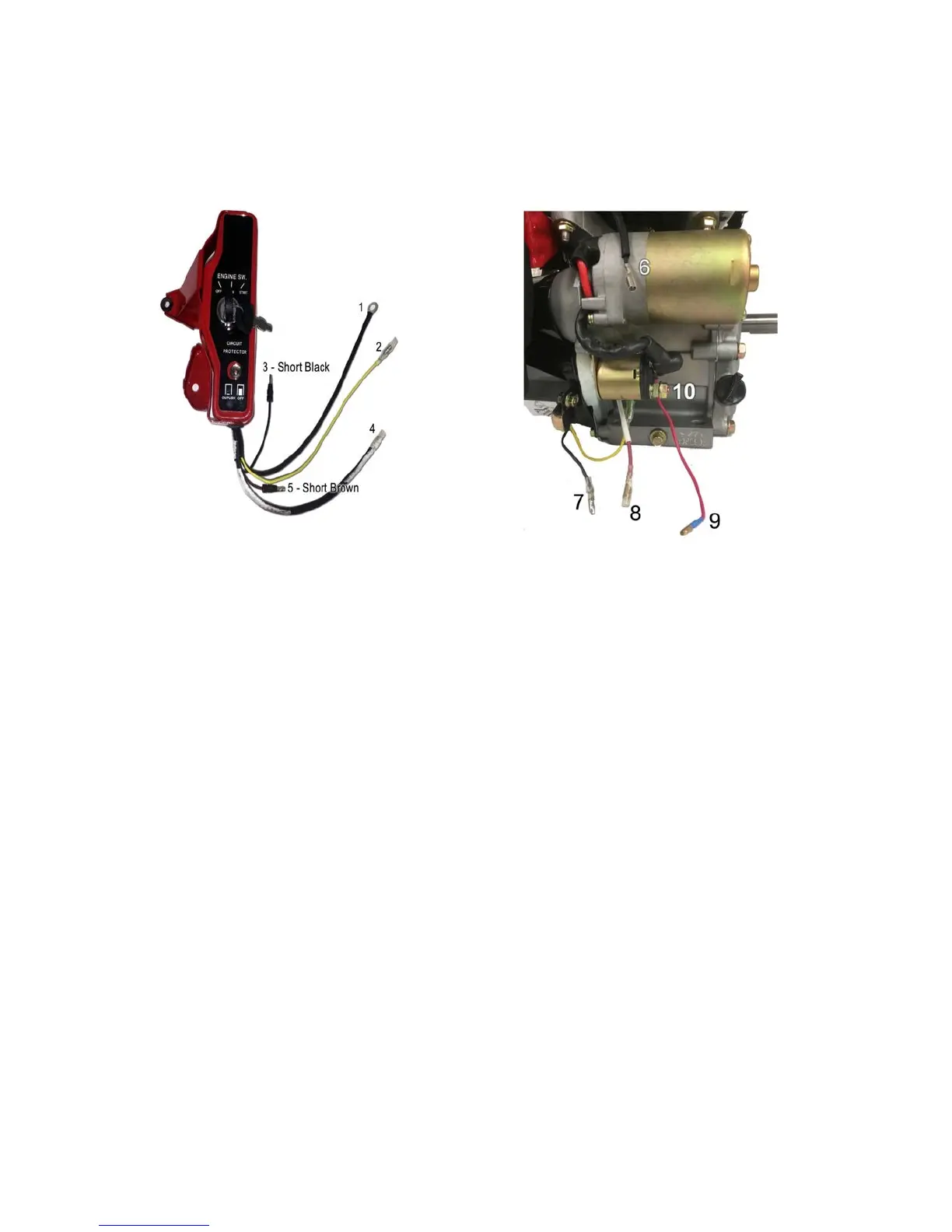

STARTER WIRING
Wire 1 To Terminal 10 (Positive lead from battery also to Terminal 10)
Wire 2 (Yellow) To Wire 7 (Black)
Wire 3 (Short Black) To Wire 6 (Black Leading From Under Engine)
Wire 4 (Thick Black) To Wire 9 (Long Red)
Wire 5 (Short Brown) To Wire 8 (Short Red)
To Include A Kill Switch:
Note- longer leads for kill switch, to mount switch at preferred location, are not included.
Wire Red Wire from Kill Switch To Wire 3 (Short Black), then reconnect to Wire 6. You may
clip the connectors off the wires and use a wire nut to connect, or attach new crimp
connectors. Black Wire from Kill Switch attaches to any ground on the engine.
To Start Engine:
Ensure engine has oil and gasoline
Connect positive terminal on 12V battery to Terminal 10.
Connect negative terminal on 12V battery to any ground on the engine
Set choke to full - even when engine is still hot.
Set throttle to idle. Turn key to start or use recoil pull start."
