INSTALLING A MUD-SKIPPER OUTBOARD KIT

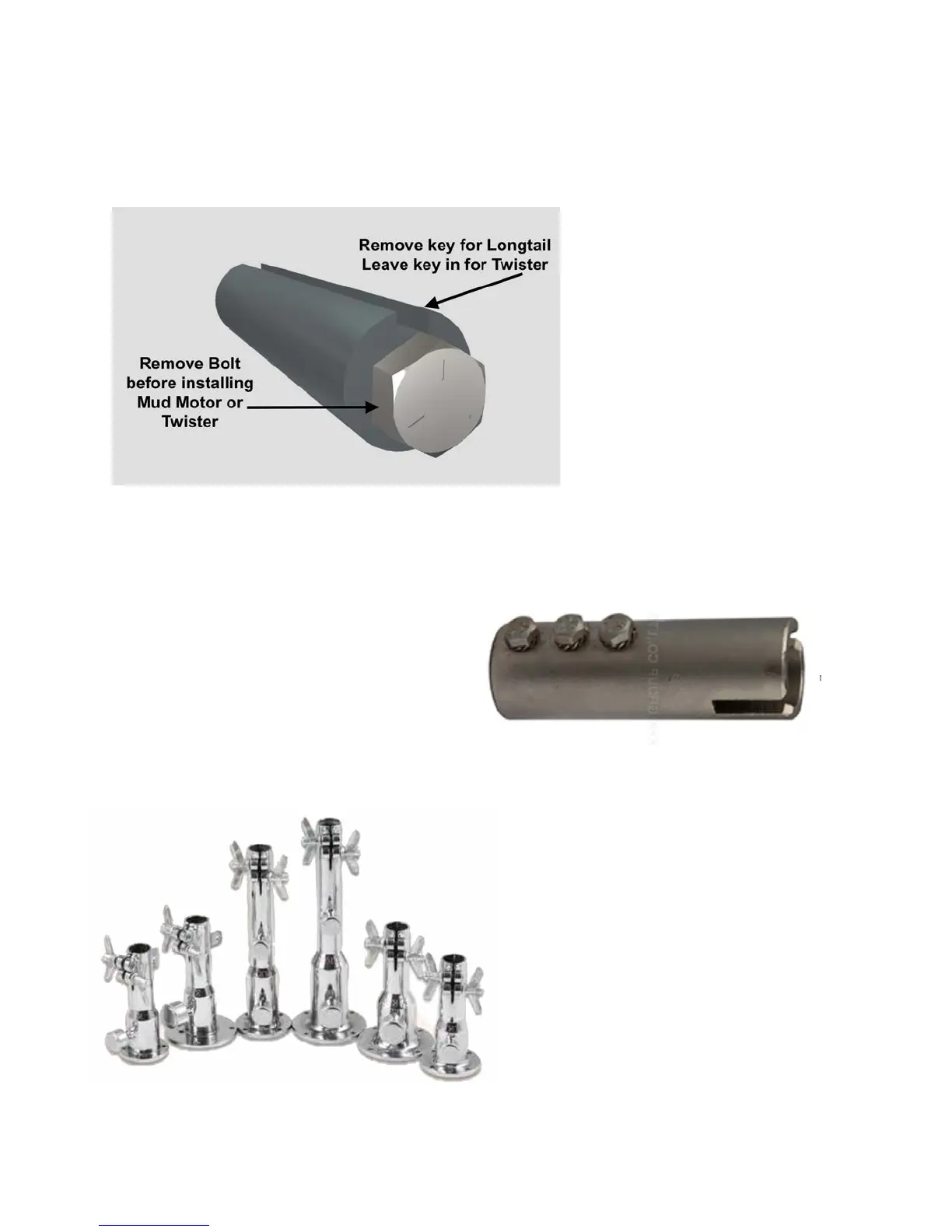

Before installing the PTO
coupler, remove the bolt
in the end of the shaft. This has
been left in place for customers
who wish to use the engine for
other applications where an
attachment needs to be bolted
onto the shaft.
Failure to remove this bolt will result in damage to the shaft bearing seals and will
void any warranties.
For Longtail couplers (right), the square
key is not required. Simply slide the
coupler over the shaft and tighten the
three bolts so they protrude into the
keyway slot. Do not over torque.
PTO Housings will vary depending on
the model and kit size.
Slide the unit over the PTO
Coupler and bolt to the engine using
5/16-24 UNF bolts and shake proof
washers.
