Mueller D-5 User Manual

MUELLER
®
D-5
TM
Drilling Machine
General Information
3
Capacity and Use
The D-5 Drilling Machine is hand
or power operated for drilling holes
1
/2” – 2” inclusive, in any size or kind
of pipe. (Under certain conditions
the maximum size may be increased
to 3
3
/4”.)
Maximum Working Pressure
500psi at 100° F.
375psi at 250° F.
The working pressure or
temperature rating is reduced
accordingly if any attachment, valve
or tting, subjected to pressure
when using the machine, has a
maximum working pressure or
temperature rating less than that
specied above.
Length of Travel – 14”
Equipment Furnished with
Each Machine
• Ratchet Handle
• Body Gasket
• Adjustable Wrench
• End Wrench
• Cutting Grease
The machine adapter nipple, cutter
arbor, shell cutter and pilot drill
shown at right are not included in
the equipment furnished with this
machine. These items must be
ordered according to the size and
type required.
Tools and equipment for this machine
are the same as those listed for the
D-4 Drilling Machine in the latest
Mueller water and gas catalogs.
For operating instructions see pages
4 – 5 and for D-5 Drilling Machine
Parts see page 7.
Shipping Specications
 
Machine and
Equipment
60
1
/2 lbs (27 kg)
Furnished in
Metal Case
Machine ONLY 35 lbs (16 kg)
Shipping Length 22
1
/2”
Extended Length 37”

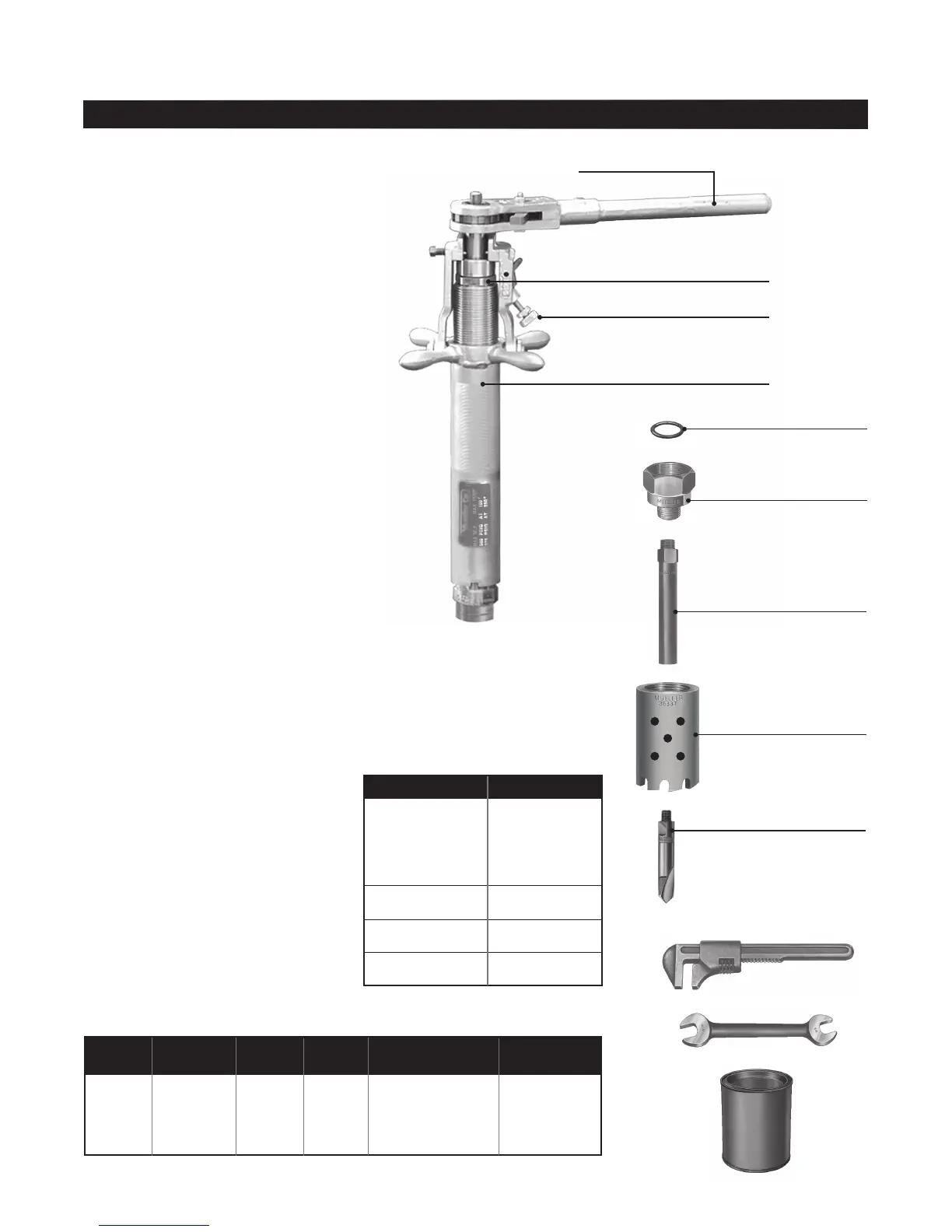

Machine
Adapter Nipple
Cutter Arbor
Locking Mechanism
Collar
Feed Nut and Yoke
O-ring
Pilot Drill
Ratchet Handle
Shell Cutter
Small Drilling Machine Selection Guide

 
 

      
     CastIron,Cement- Makingmain

D-5Drilling

5
/8”–2”
 500psig Handor

linedCastIron,Ductile toservice


Machine  (3450kPa) Power

Iron,Cement-lined connectionsin
   
DuctileIron,A-C, pressurizedmain
   
Concrete,Steel&PVC
