Mueller D-5 User Manual

MUELLER
®
D-5
TM
and E-5
TM
Drilling Machines

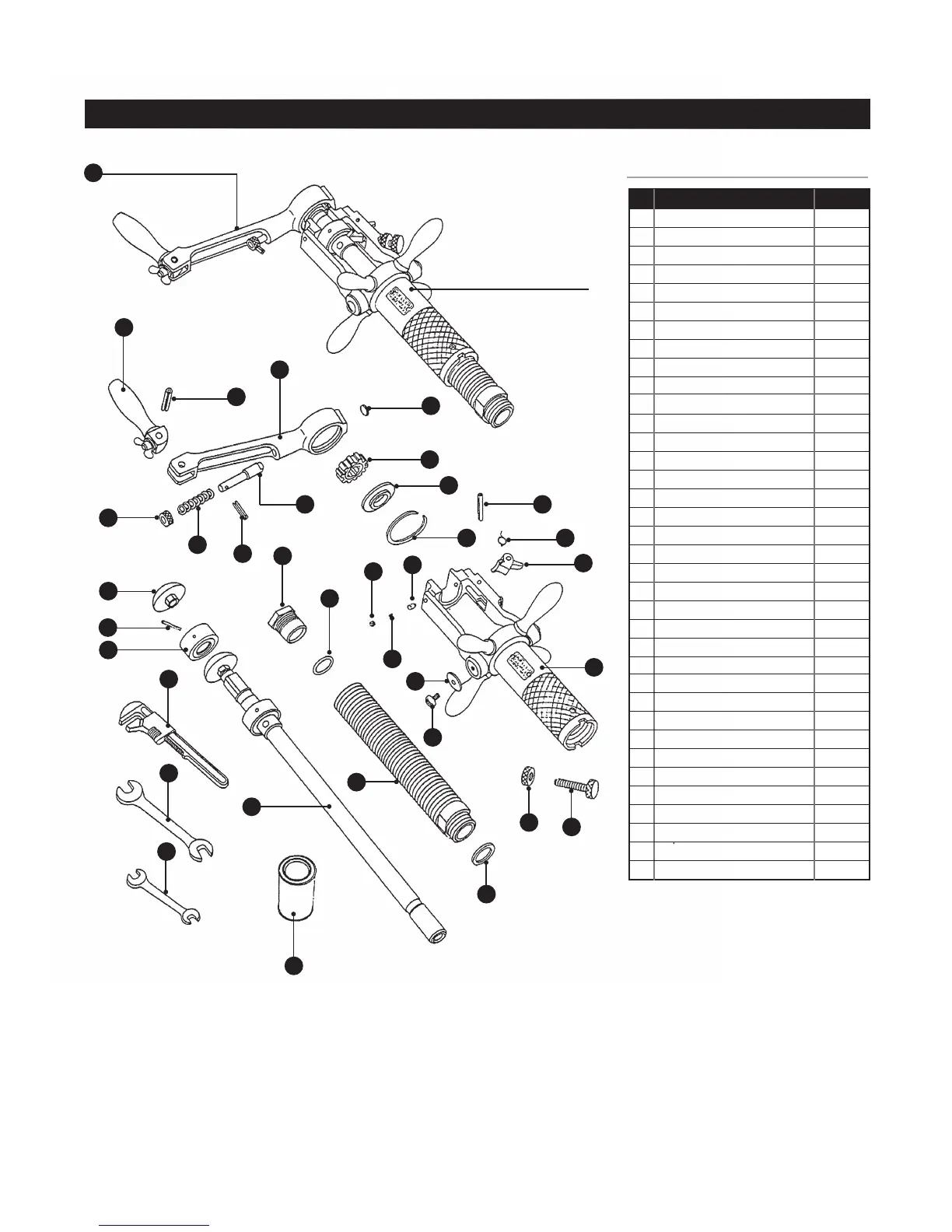

E-5 Parts
6 7
ID PART NAME PART No.
parts List
1
7
6
2
3
8
9
15
11
12
13
14
33
10
20
21
22
23
24
25
26
27
19
18
17
32
34
35
30
29
28
5
16
31
4
E-5 Machine Complete
 1 RatchetHandleComplete 580897
 2 CrankHandle 50085
 3 HandlePin 500635
 4 Handle 51484
 5 DetentKnob 37863
 6 Spring 37883
 7 OperatingPin 500803
 8 RatchetDog 51426
 9 Knob 83431
10 FrictionCollarPin 48130
11 FrictionCollar 580610
12 BoringBar 580999
13 AdjustableWrench 91664
14 EndWrench 96536
15 EndWrench 59767
16 CuttingGrease 88366
17 PackingGland 51432
18 O-RingPacking 46726
19 Body 503159
20 BodyGasket 47756
21 LockNut 502029
22 OperatingScrew 502028

23 RetainingScrew(2) 79745
24 Washer(2) 50133
25 DetentSpring(2) 59810
26 DetentScrew(2) 305006
27 DetentPin(2) 500651
28 Plug 51427
29 RatchetWheel 503162
30 WheelBushing 503163
31 RetainingRing 51428
32 PivotArmPin 502027
33 PivotArmSpring 502026
34 PivotArm 502025
35 FeedTube&YokeComplete 580895
36 MetalCase(notshown) 580971
