Mueller D-5 User Manual

MUELLER
®
D-5
TM
and E-5
TM
Drilling Machines

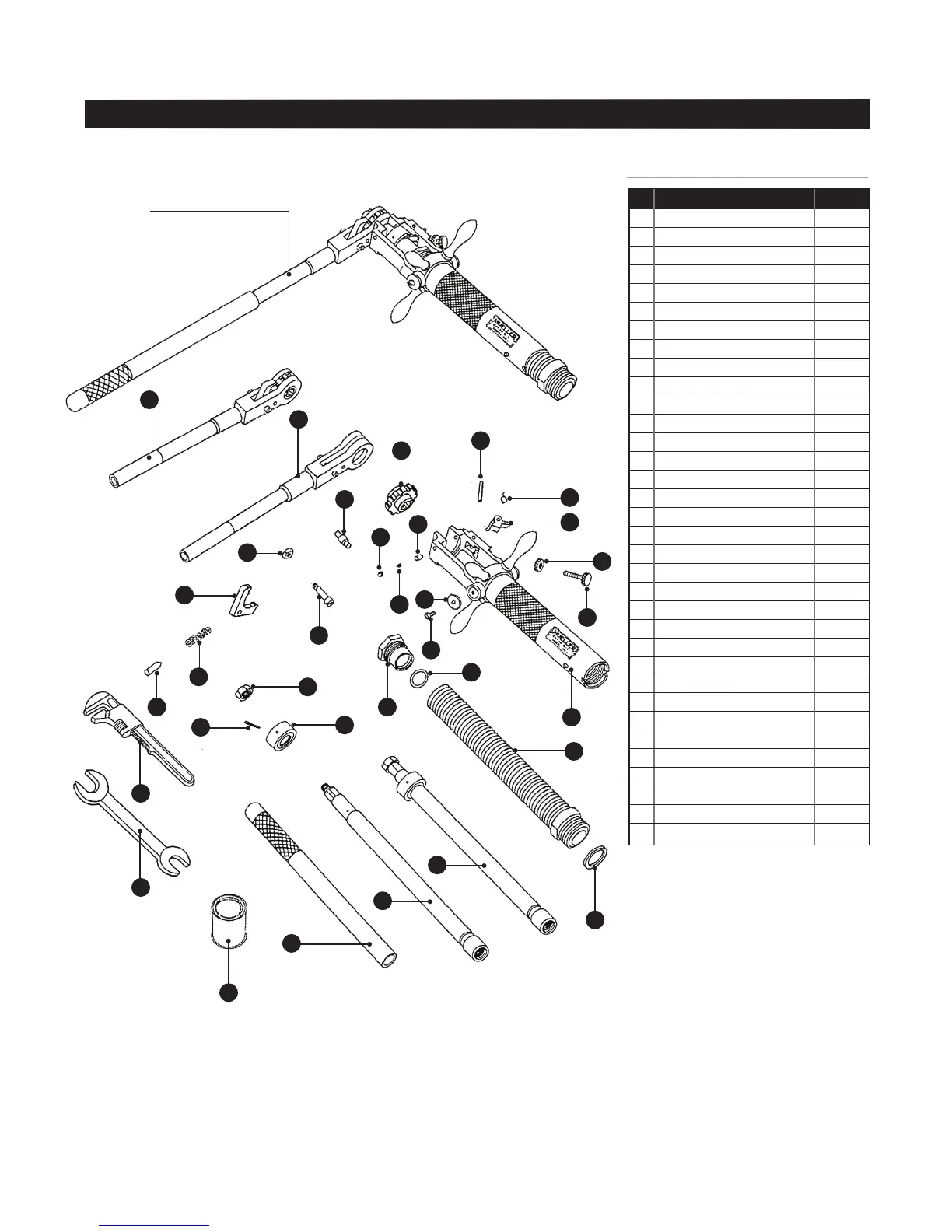

D-5 Parts
7
ID PART NAME PART No.
 1 RatchetHandle 85308
 2 HandleBar 50111
 3 SpringPin 40006
 4 Spring 40007
 5 RatchetDog 40004
 6 Nut 45255
 7 Stud 40139
 8 RatchetWheel 40737
 9 RetainingNut 46029
10 FrictionCollarRollPin 48130
11 FrictionCollar 580610
12 Bolt 40138
13 AdjustableWrench 91664
14 EndWrench 58196
15 CuttingGrease 88366
16 HandleExtension 86391
17 BoringBar 503141
18 BoringBar 580945
19 PackingGland 51377
20 O-Ring 51458
21 Body 36758
22 BodyGasket 33278

23 RetainingScrew(2) 79745
24 Washer(2) 50133
25 DetentSpring(2) 59810
26 DetentScrew(2) 305006
27 Detent(2) 500651
28 RollPin 502027
29 PivotArmSpring 502026
30 PivotArm 502025
31 LockNut 502029
32 OperatingScrew 502028
33 FeedTube&YokeComplete 580946
34 MetalCase(notshown) 580969
parts List
9
12
13
14
20
21
22
23
24
25
26
27
19
18
17
32
30
29
28
5
15
16
31
4
D-5 Machine Complete
1
3
2
6
7
8
10
11
33

Mueller D-5 Specifications

General

Brand	Mueller
Model	D-5
Category	Drill
Language	English
