Caution! Prevent serious damage to the drive, the Multi-Mover M may only be towed with the
handbrake button (7) in the “free position” (pulled out).

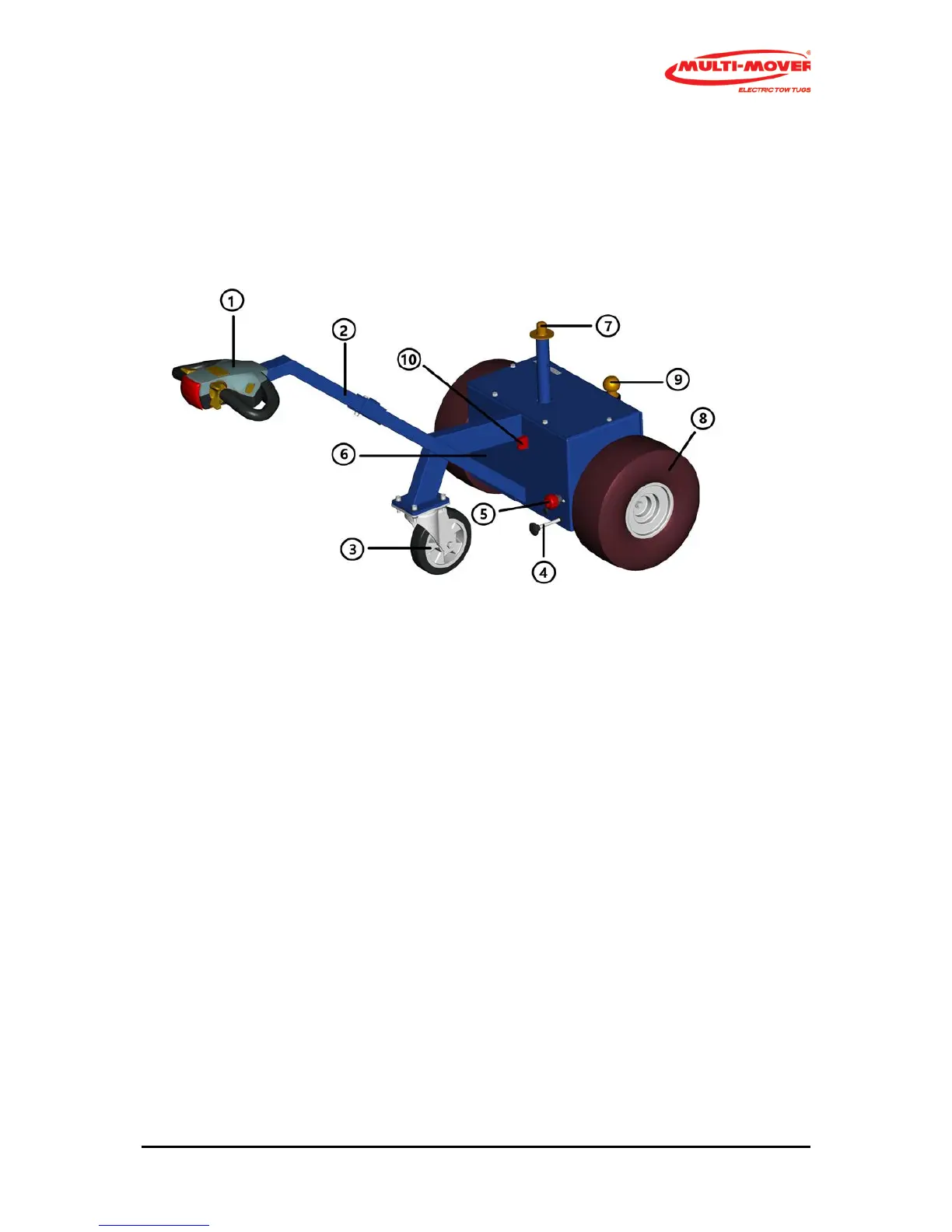

5.3 Operation (see photo, fig. 1)
1 Steering handle (Tiller Head)
2 Steering bar
3 Swivel wheel
4 Button electro magnetic brake
6 Type plate
7 Top coupling point
8 Driving wheel with tyre
5 Emergency stop switch 9 Attachment for coupling
10 Battery charging plug
Prior to putting the Multi-Mover M into operation, you must acquaint yourself with its possibilities.
Read the instructions in advance and check the function of the control units with the ignition key in
the OFF position.
Button electro magnetic brakeblack (4)
The wheels (1.8) are coupled to/disconnected from the motor by means of the handbrake button. If
the button is pulled out it is in the free position, the Multi-Mover M can now be freely manoeuvred
by hand.
If the button is pressed down, the Multi-Mover M can only be driven electrically.
