4.2.2 C52 two-pipe system
As an alternative to open fl ue gas outlet system B22p,
you can also use closed system C52.

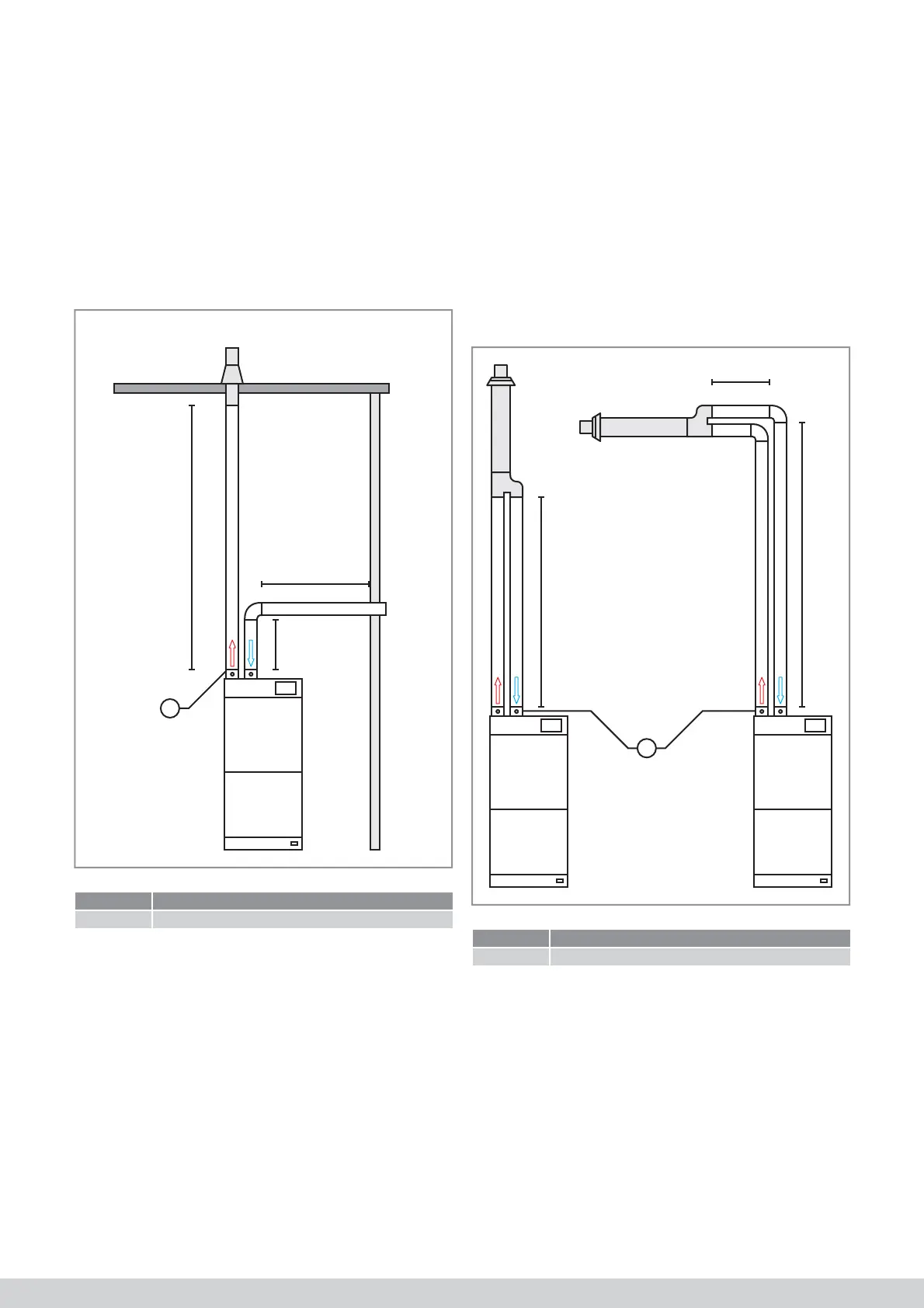

The drawing below shows a two-pipe C52 system.
The length of the fl ue gas outlet (L1+L2+L3) plus the
equivalent length of the bends must not exceed the
maximum value specifi ed in item 4.2.7.
Always install a measuring point in the CAS and FGO.
L1
L2
L3
1
Legend
Number Meaning
1 Measuring point
4.2.3 Parallel systems (C12/C32)
You can use a parallel system to discharge the fl ue
gases. Multicalor carries a range of supply and
discharge pipes made of high-quality PP and stainless
steel.
The drawing below shows a parallel system.
The length of the fl ue gas outlet plus the equivalent
length of the bends must not exceed the maximum
value specifi ed in item 4.2.7.
Always install a measuring point in the CAS and FGO.
L
L1
L2
1
Legend
Number Meaning
1 Measuring point
