6. How to Use the Waveform Generator
(MP720781 & MP720783)
The instrument can provide 4 basic waveforms, sine wave, square wave,
ramp wave, pulse wave, and 8 arbitrary waveforms.
Connect the output
Press the Mode button to switch the instrument interface to the waveform
generator function interface. Check whether the upper left corner of the
screen is ON, if it is OFF, press the Run/Stop key to switch.
Connect the BNC cable to the port marked GEN Out in the top of the
oscilloscope.

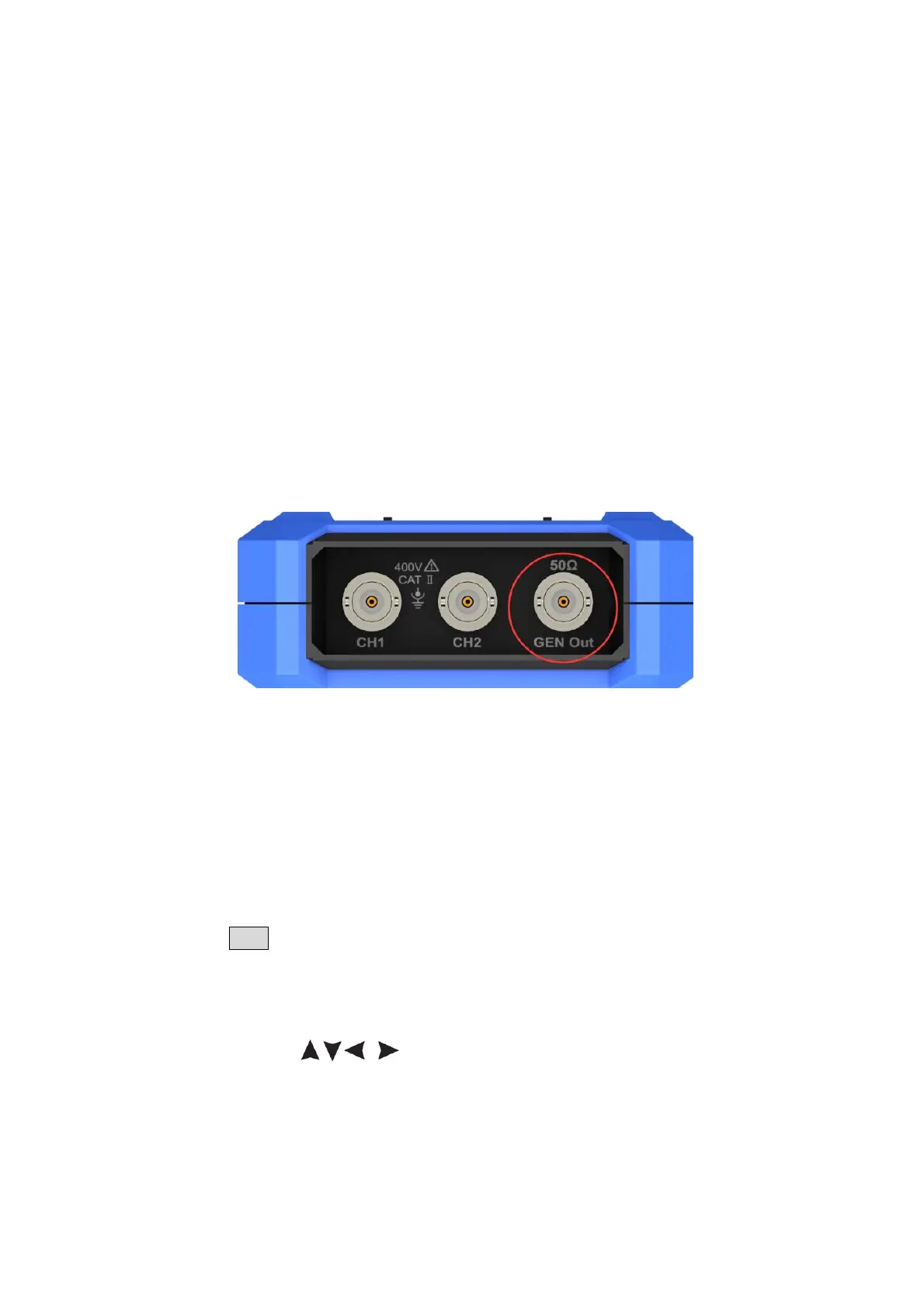

图 6-1：Generator Output Ports
To observe the output of the waveform generator, connect the other end of
the BNC cable to the signal input connector of the oscilloscope.
Set the waveform
(1) Press the Mode button to switch the instrument interface to the waveform
generator function interface.
(2) Press F1 to select the desired waveform, and the screen will display
the corresponding waveform setting menu.
(3) Set the parameters of the desired waveform through the operation panel
F2-F4 and the panel keys.
