Warning:
To prevent electric shock or fire, use a suitable power adapter. Only power
adapters that are dedicated to this product and approved for use in the country
of use may be used.
Warning:
The two channels of the oscilloscope are non-isolated channels. Note that the
channel should use a common reference when measuring, and the ground
wires of the two probes cannot be connected to two non-isolated places with
different DC electrical levels, otherwise it may cause a short circuit due to the
ground wire connection of the oscilloscope probe.
Warning:
Note that the channel should use a common reference when measuring,
otherwise it may cause a short circuit due to the ground wire connection of the
oscilloscope probe.

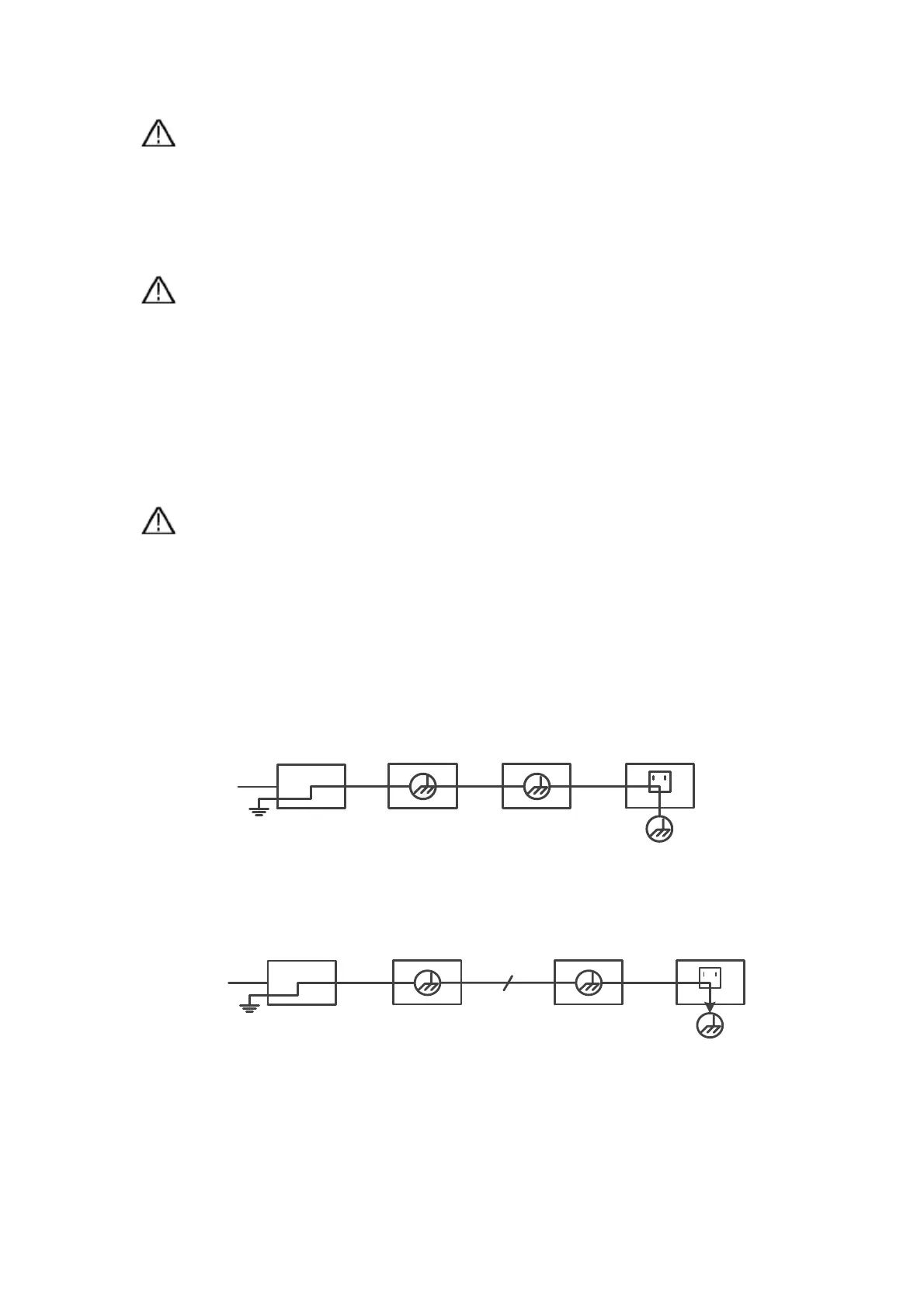

Schematic diagram of the internal ground wire connection of the oscilloscope:
Ground Clip
Signal Input
Electrical Outlet
Probe
AC Adapter
Oscilloscope
Schematic diagram of internal ground connection when oscilloscope is
connected with computer through the port:
Ground Clip
Signal Input
Oscilloscope
PC Electrical OutletProbe
USB Cable
When the oscilloscope is AC powered by adapter or connected with AC
powered computer through the port, it is not allowed to measure the primary
power supply of power grid.
