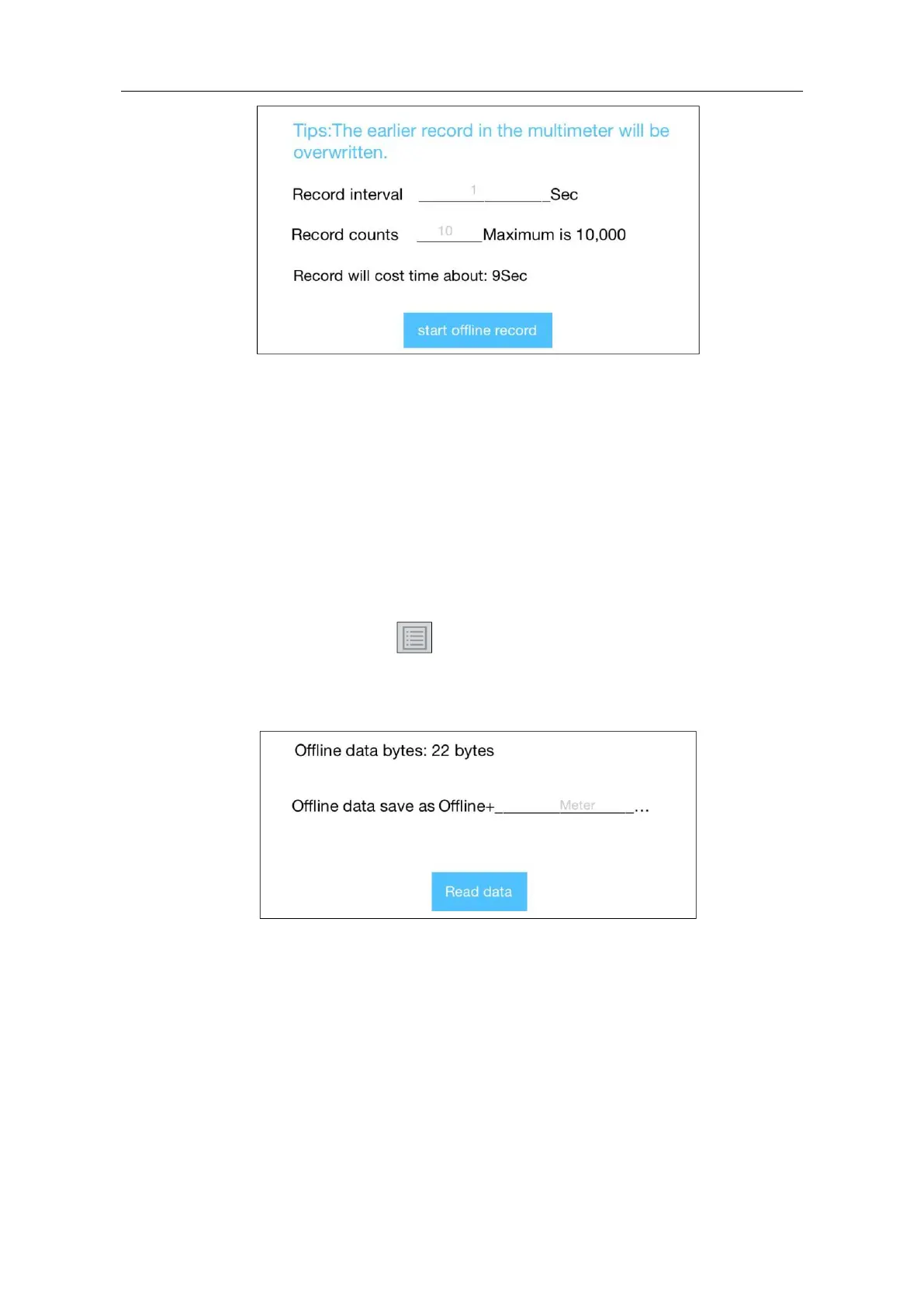

(3) Set "Record interval" and "Records counts" (maximum records count is 10,000). Tap
on "start offline record". The memory in the multimeter can only store the recording
data of one time. When start to record, the earlier offline record stored in the
multimeter will be overwritten.
Note: If you want to interrupt the recording process of the multimeter, reconnect the
iOS device and the multimeter, select "Stop recording".
(4) After completion of the record, to read the measuring data, reconnect the iOS device
and the multimeter.
(5) In APP device view, tap on the softkey on the right, select "Record read" from
the pop-up menu. The file name start with "Offline", the following part can be
customized.
(6) Tap on "Read data", APP will read the measuring data and save as a CSV file into the
iOS device.
After reading, display as below:
