Read all instructions before using the appliance and retain for future reference.
• Please follow all safety operation instructions.
• Check the jaws and case insulation before using. If you nd any breakage
or abnormality, or you consider the device is broken, stop using the device
immediately.
• Never operate the meter with the battery cover open.
• Set the function switch to the correct setting before connecting the meter to the
current source to be tested.
• Never apply voltage greater than the specied maximum allowed.
• Use caution with voltages above 25VAC rms as a shock hazard may exist.
• Do not use the product for any purpose other than that for which it is designed.
• Turn the tester off when not in use to save the battery.
• Remove the battery if the tester is not to be used for long periods.
• Replace the battery as soon as the low battery warning appears to avoid possible
electric shock or personal injury caused by incorrect readings.
PRODUCT OVERVIEW
WHAT’S INCLUDED
• AC Leakage Tester
• Batteries.
• Instruction manual.
IMPORTANT SAFETY INFORMATION
OPERATION
CLEANING
• Clean the tester with a clean, soft cloth.
• Do not use any chemicals, abrasives or solvents that could damage the tester.
MAINTENANCE
• When the low battery symbol appears on the LCD the batteries must be replaced.
• Power the tester down and remove the rear battery compartment screw.
• Lift off the battery compartment cover and replace the two AAA(1.5V) batteries
taking note of the polarity.
• Replace the compartment cover and secure the screw.
1 2 3 4
5 6
AC Current Measurement
• Set the Function switch to the desired current range.
• Press the jaw trigger to open the clamp jaws and clamp around the conductor
ensuring it is centred within the clamp jaws.
• The measured value is displayed on the LCD screen.
Data HOLD
• To freeze the current reading on the LCD, press the “HOLD” key.
• HOLD will display on the LCD while the meter is in the Data Hold mode.
• To return to normal function and operation, press the “HOLD” key again.
Backlight function
• Press and hold the “HOLD” key for more than 2 seconds to turn on the LCD
backlight.
• This will also activate the Data Hold function.
• To release the Data Hold function and return the tester to normal operation, press
the “HOLD” key momentarily. To turn off the backlight, press and hold the “HOLD”
key for more than 2 seconds.
LEAKAGE CURRENT TESTER
MAX
HOLD
2A

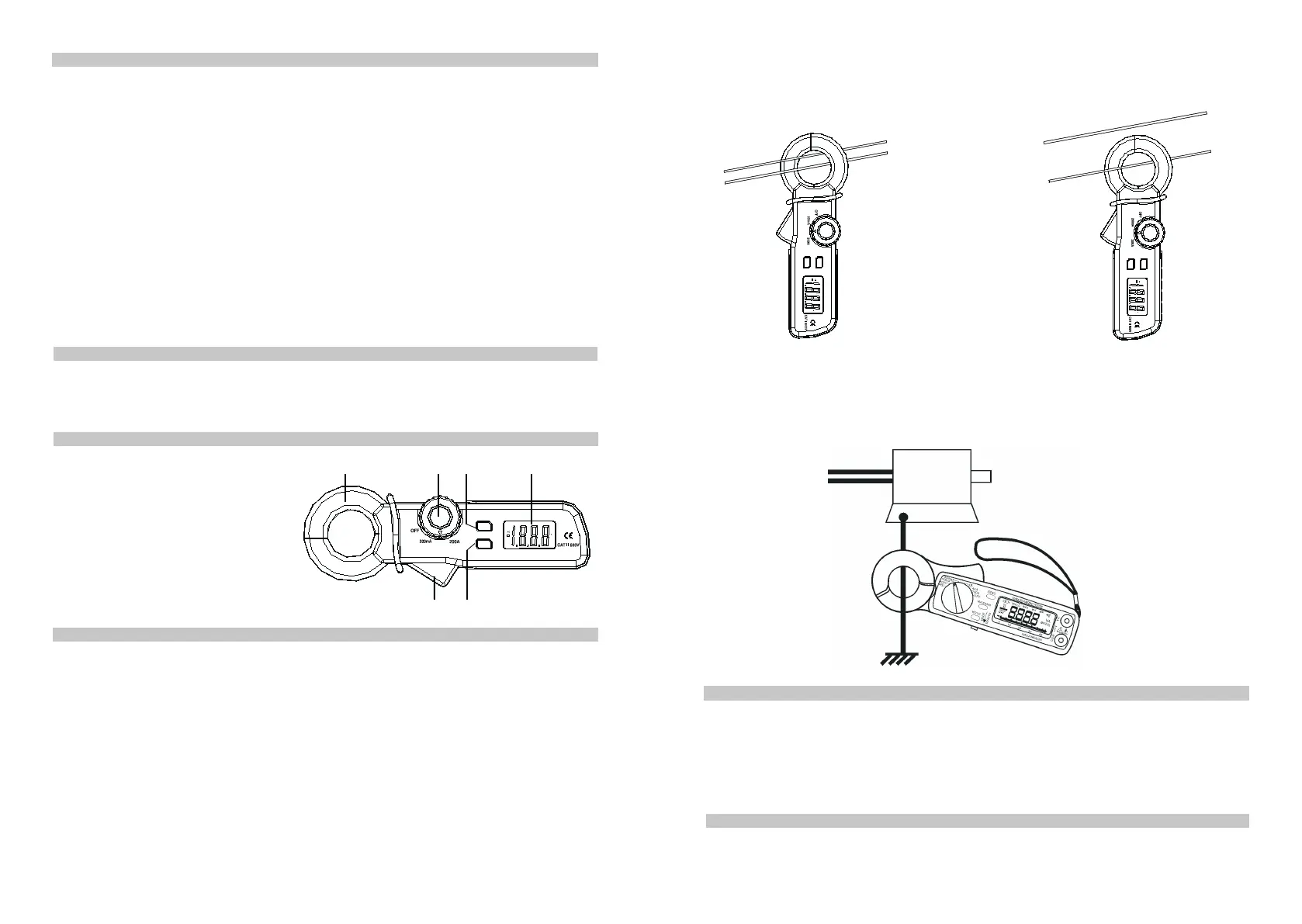

1. Current sense jaws
2. Rotary function switch
3. Data HOLD and backlight button
4. LCD display
5. Clamp trigger
6. MAX button
LEAKAGE CURRENT TESTER
MAX
2A
HOLD
MAX
LEAKAGE CURRENT TESTER
2A
HOLD
Leakage Current Measurement Load Current Measurement
Leakage into Ground
Conductor
To Next Page
