GA-3.6H SERIES A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #0 (11/01/05) — PAGE 29
GA-3.6H Series — WIRING DIAGRAM (3.6HZ)

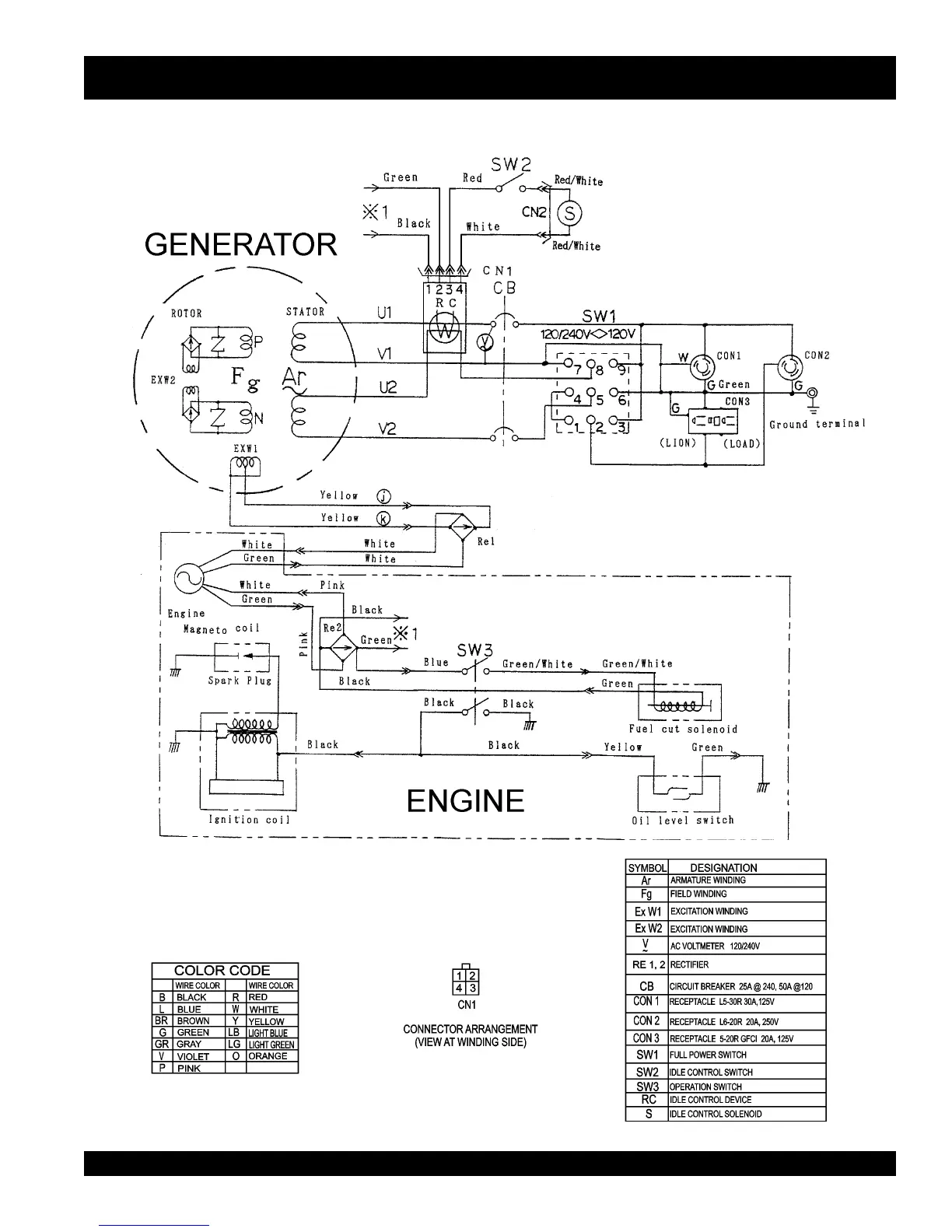

Figure 28. Generator Wiring Diagram (GA-3.6HZ)
GA-3.6HZ WIRING DIAGRAM
