GA-3.6H SERIES A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #0 (11/01/05) — PAGE 31
GA-3.6HA — WIRING DIAGRAM (GENERATOR)

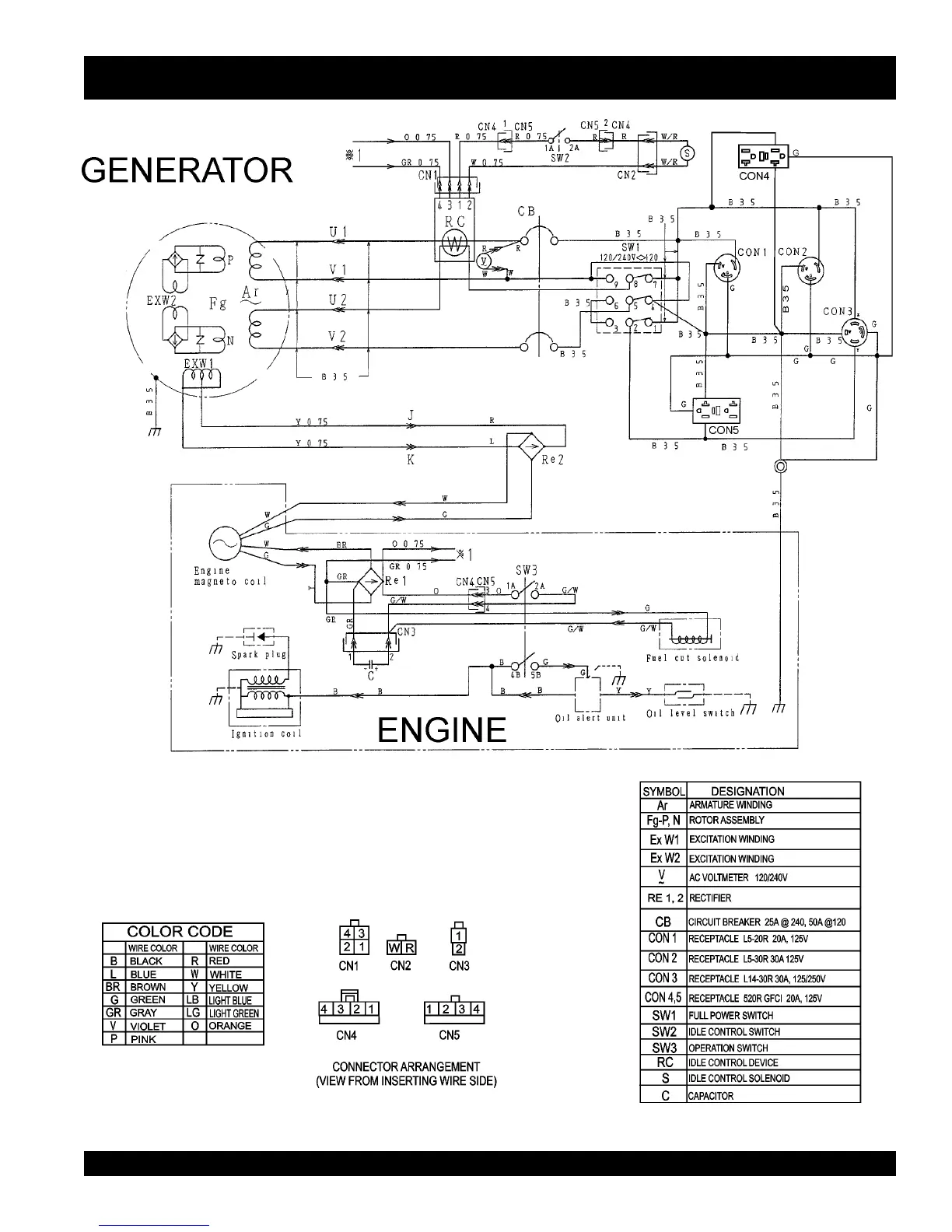

Figure 30. Generators Wiring Diagram (GA-3.6HA)
GA-3.6HA WIRING DIAGRAM
