MC94P/S CONCRETE MIXERS — OPERATION AND PARTS MANUAL — REV. #9 (09/15/11) — PAGE 15
MC94P/S CONCRETE MIXER — HANDWHEEL ASSEMBLY
Assembly
The MC94P/S concrete mixers are shipped with the
handwheel detached. Attach the handwheel to the mixer as
shown in Figure 4.

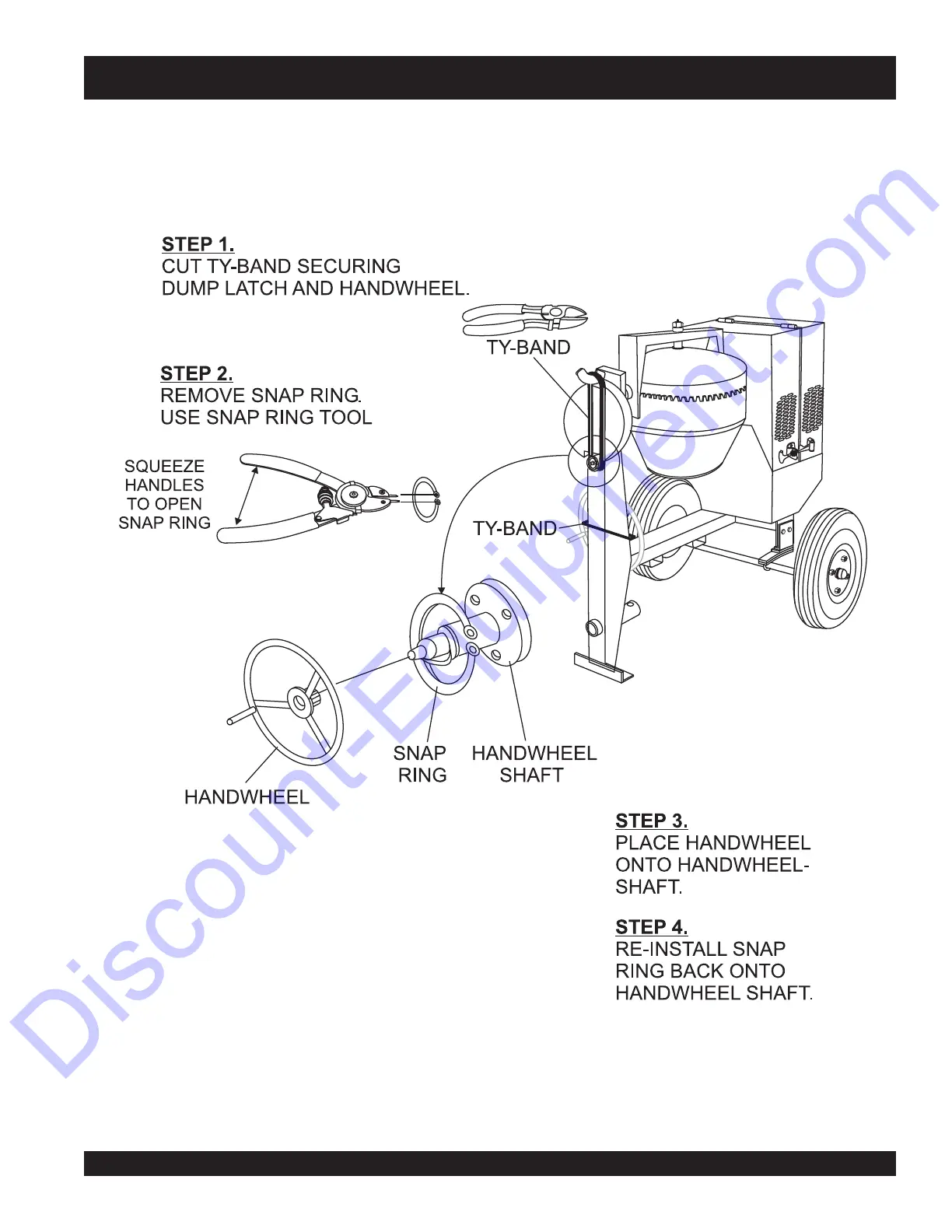

Figure 4. Handwheel Assembly
